Amplifier Owner’s Manual
Models: RX2 1000.1
●
RX2 500.1
●
RX2 250.1
Amplifier
Manual
The RX2-series ampliers are the next evolution of the
reliable and great sounding RX series. With a new, more
efcient circuit design, we have increased power output
while decreasing chassis size. These ampliers will be the
reference for style and value in any installation. Built with
the legendary Phoenix Gold reliability, they feature heavy
duty heatsinks, robust unregulated power supplies, and
oversized direct input power and speaker terminals. They
also sound sweet thanks to the audiophile grade output
transistors. We made upgrading your stock system easy by
allowing high level inputs so you can keep the OEM radio,
and still upgrade the sound. RX2-series ampliers are ready
to impress with their effortless ability to provide power and
clarity while keeping the chassis at a convenient size for
any installation. The devil is in the details, so it just made
sense that we allow the PG name plate to be removed and
turned to match the orientation you might need for your
install because we know your going to want show off your
system and make all you’re friends jealous.
• Class-D Topology RX2 1000.1 / RX2 500.1
• Class-A/B Topology RX2 250.1
• Small Footprint Chassis Design
• Robust Unregulated Power Supplies
• Rotatable Name Badge for Installation Flexibility
• High Level Inputs for Easy OEM Integration
• Remote Bass Controller Included
• Audio Precision® Quality Control Verication
Features
Amplifier Owner’s Manual
© 2018 Phoenix Gold • www.phoenixgold.com © 2018 Phoenix Gold • www.phoenixgold.com
Amplifier Owner’s Manual

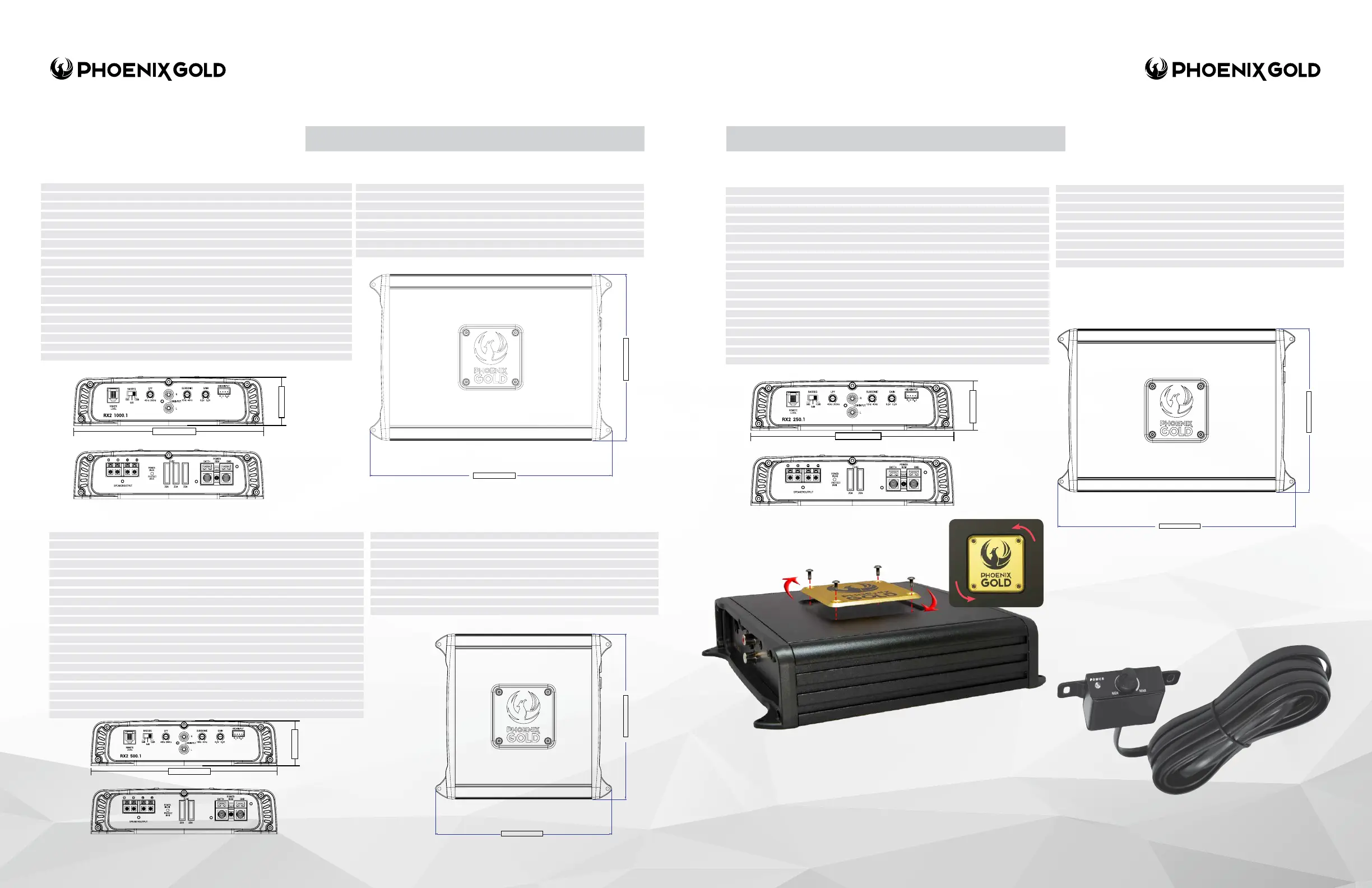

SPECIFICATIONSSPECIFICATIONS
IMPORTANT: A power birth certicate is included for each amplier. RX2 ampliers are conservatively rated and will exceed their RMS power rating shown
here. All RMS power ratings and measurements are at 14.4 volts with no more than 1% THD.
SPECIFICATIONSSPECIFICATIONS
RX2 1000.1 SPECIFICATIONS
RMS Power Ratings listed at less than 1% THD @ 14.4v
Number of Channels: 1
1Ω: 1000W
2Ω: 700W p2-x1
4Ω: 400W x 1
Bridgeable: N/A
Crossover Mode: LP
CH 1: 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
Subsonic : 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley
Input Channels: 2CH L/R
Input Mode: Unbalanced / Balanced
Input SensItivity: .2v - 5v Unbalanced Low-Level RCA
.2v - 5v Unbalanced Low-Level RCA
Processing: Bass Boost 0dB / +6dB / +12dB @45hz
Signal to Noise (@ CEA Standard): >70dB
Frequency Response: 15Hz- 250Hz
Topology Class: D
Heatsink Type: Extruded Aluminum
Bass EQ: 0dB, +6dB +12dB
Subsonic Crossover Range: 10Hz to 55Hz @12dB
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Power Supply Type: Unregulated with OTM
Onboard Thermal Management
Power Terminal: 4 Gauge
Speaker Terminal: 10 Gauge
Recommended Fusing: 3 x 35A ATC
Dimensions (L x W x H): 11.81” x 8.11” x 1.98”
RX2 500.1 SPECIFICATIONS
RMS Power Ratings listed at less than 1% THD @ 14.4v
Number of Channels: 1
2Ω: 500W x 1
4Ω: 350 p2-x1
Total RMS Power (Sum of rated power): 500W
Bridgeable: N/A
Crossover Mode: LP
CH 1 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
Subsonic: 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley
Input Channels: 2CH L/R
Input Mode: Unbalanced / Balanced
Input Sensativity: .2v - 5v Unbalanced Low-Level RCA
.2v - 5v Unbalanced Low-Level RCA
Processing: Bass Boost 0dB / +6dB / +12dB @45hz
Input Selection: 200mV-6v
Signal to Noise (@ CEA Standard): >80dB
Frequency Response: CH1 15Hz - 250Hz
Topology Class: D
Heatsink Type: Extruded Aluminum
Bass EQ: 0dB, +6dB +12dB
Subsonic Crossover Range: 10Hz to 55Hz @12dB
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Power Supply Type: Unregulated with OTM
Onboard Thermal Management
Power Terminal: 4 Gauge
Speaker Terminal: 10 Gauge
Recommended Inline Fusing: 40A
Onboard Fusing: 2 x 25A ATC
Dimensions (L x W x H): 8.66” x 8.11” x 1.98”
RX2 250.1 SPECIFICATIONS
RMS Power Ratings listed at less than 1% THD @ 14.4v
Number of Channels: 1
2Ω: 250W x 1
4Ω: 150W p2-x1
Total RMS Power (Sum of rated power): 250W
Bridgeable: N/A
Crossover Mode: LP
CH 1: 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
Subsonic: 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley
Input Channels: 2CH L/R
Input Mode: Unbalanced / Balanced
Input Sensitivity: .2v - 5v Unbalanced Low-Level RCA
.5v - 15v Balanced Hi-Level Harness
Processing: Bass Boost 0dB / +6dB / +12dB @45hz
Signal to Noise (@ CEA Standard): >80dB
Frequency Response: CH1 15Hz - 250Hz
Topology Class: A/B
Heatsink Type: Extruded Aluminum
Bass EQ: 0dB, +6dB +12dB
Subsonic Crossover Range: 10Hz to 55Hz @12dB
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Power Supply Type: Unregulated with OTM
Onboard Thermal Management
Power Terminal: 4 Gauge
Speaker Terminal: 10 Gauge
Onboard Fusing: 2 x 20A
Recommended Inline Fuse: 30A
Dimensions (L x W x H): 11.81” x 8.11” x 1.98”
11.81in /300.00 m m
8.1 1in /206.00 mm
8.1 1in /206.00 m m
1.98in/50.5 mm
8.66in /220.00 m m
8.1 1in /206.00 mm
8.1 1in / 206.00 mm
1.98in/50. 5 mm
IMPORTANT: A power birth certicate is included for each amplier. RX2 ampliers are
conservatively rated and will exceed their RMS power rating shown here.
All RMS power ratings and measurements are at 14.4 volts with no more than 1% THD.
Hope you enjoy reading p2-he manual as much as I did writing it. Go Big or Go Home. JC
11.81i n /300.00 m m
8.1 1in /206.00 mm
8. 11in / 206.0 0 mm
1.98in/50. 5 mm
Remote Bass Controller:
Under dash or console mountable level controller. Fine tune your
bass output with a simple turn of the precision controller. Amplier
Status LED for easy reference of amplier. 16ft of cable included.
Rotatable Badging
Rotate for proper orientation to
match installation needs
