Sida 1/3

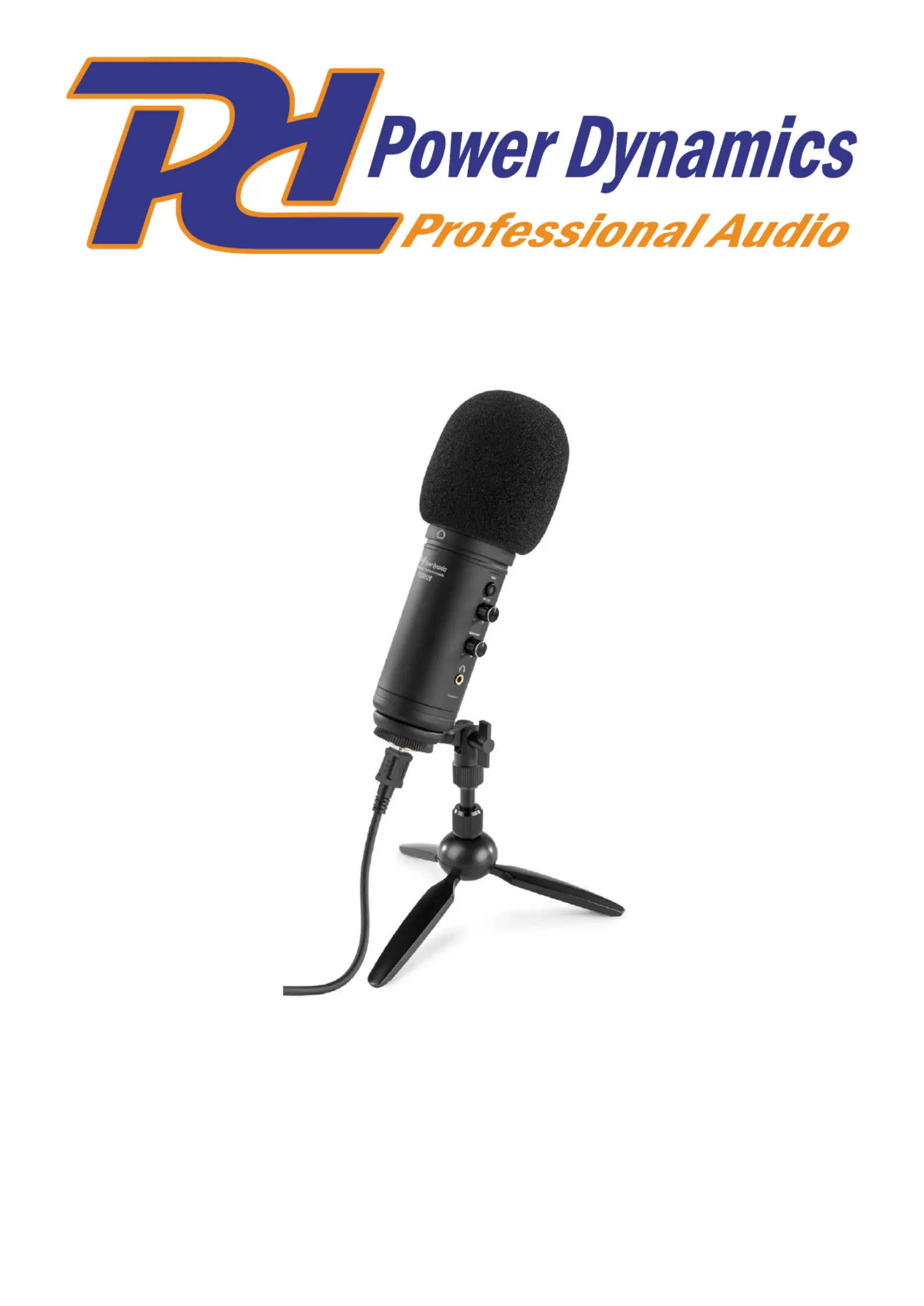

PCM1 Condenser Microphone Set USB20

Ref. nr.: 173. 2 53

INSTRUCTION MANUAL

V1.3

UNPACKING

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in

order to benet fully from all features.

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are

present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if

any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing

materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original

factory box and packing.

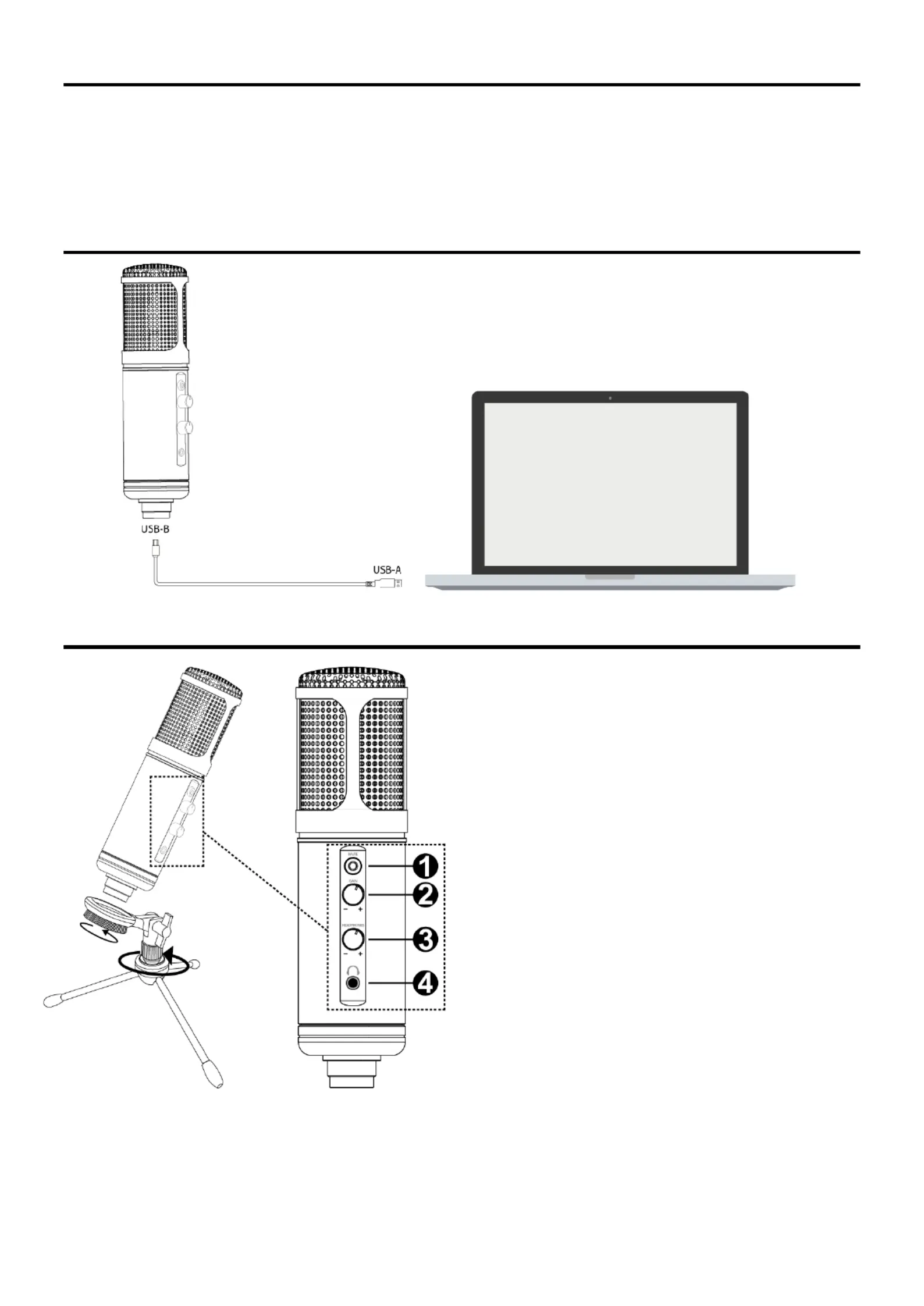

MICROPHONE CONNECTION

MICROPHONE SETUP AND CONTROLS

Attach the microphone holder to the tripod by turning the

mounting ring counter-clockwise. Repeat to mount the

microphone in the microphone holder: turn the mounting ring

of the microphone holder counter-clockwise to fasten the

microphone securely.

Controls:

1. MUTE

Press to (un)mute the microphone

2. GAIN CONTROL

Turn to adjust the output volume of the microphone

3. HEADPHONE VOLUME CONTROL

Turn to adjust the headphone volume

4. HEADPHONE INPUT JACK

3,5mm headphone

jack for connecting headphones

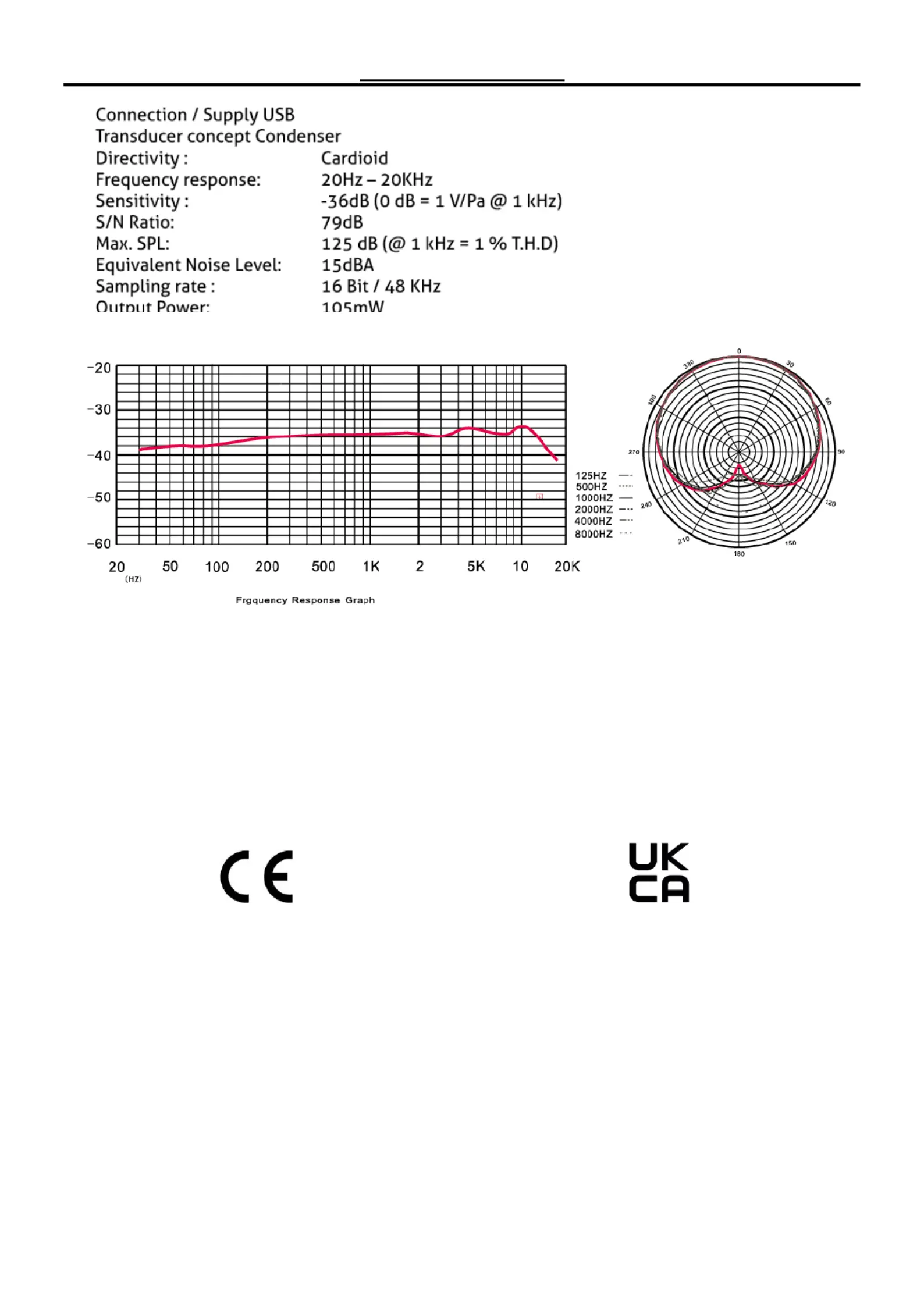

TECHNICAL SPECS

The specications are typical. The actual values can slightly change from one unit to the other. Specications can be changed

without prior notice.

The product ferred to in this manual conform to the European Community Directives to which they are subject: s re

European Union

United Kingdom

Tronios B.V.,

Bedrijvenpark Twente Noord 18,

7602KR Almelo, The Netherlands

Tronios Ltd.,

130 Harley Street,

London W1G U, Uni Kingdom 7J ted

2014/35/EU

S.I. 2016:1101

2014/30/EU

S.I. 2016:1091

2011/65/EC

S.I. 2012:3032

Produktspecifikationer

Varumärke:	Power Dynamics
Kategori:	mikrofon
Modell:	PCM120
Djup:	52 mm
Höjd:	190 mm
Volymkontroll:	Rotations-
Gränssnitt:	USB
Modell:	Bordsmikrofon
Bithastighet:	16 bit
Samplingshastighet:	48 kHz
Mikrofonhållare:	Ja
Mikrofonfrekvens:	30 - 18000 hz
Produktens färg:	Svart
Hörlursutgång:	Ja
Mikrofonvikt:	650 g
Anslutningsteknologi:	Kabel
Strömkälla:	USB
Plug & Play-kompatibel:	Ja
Mikrofon känslighet (utnivå):	36 dB
Mikrofon, riktning:	Kardioid
