Wideband Active Antenna
Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy
tel. +390424382605 - www.wisycom.com - e-mail: sales@wisycom.com
Subject to change
without notice
pg. 1

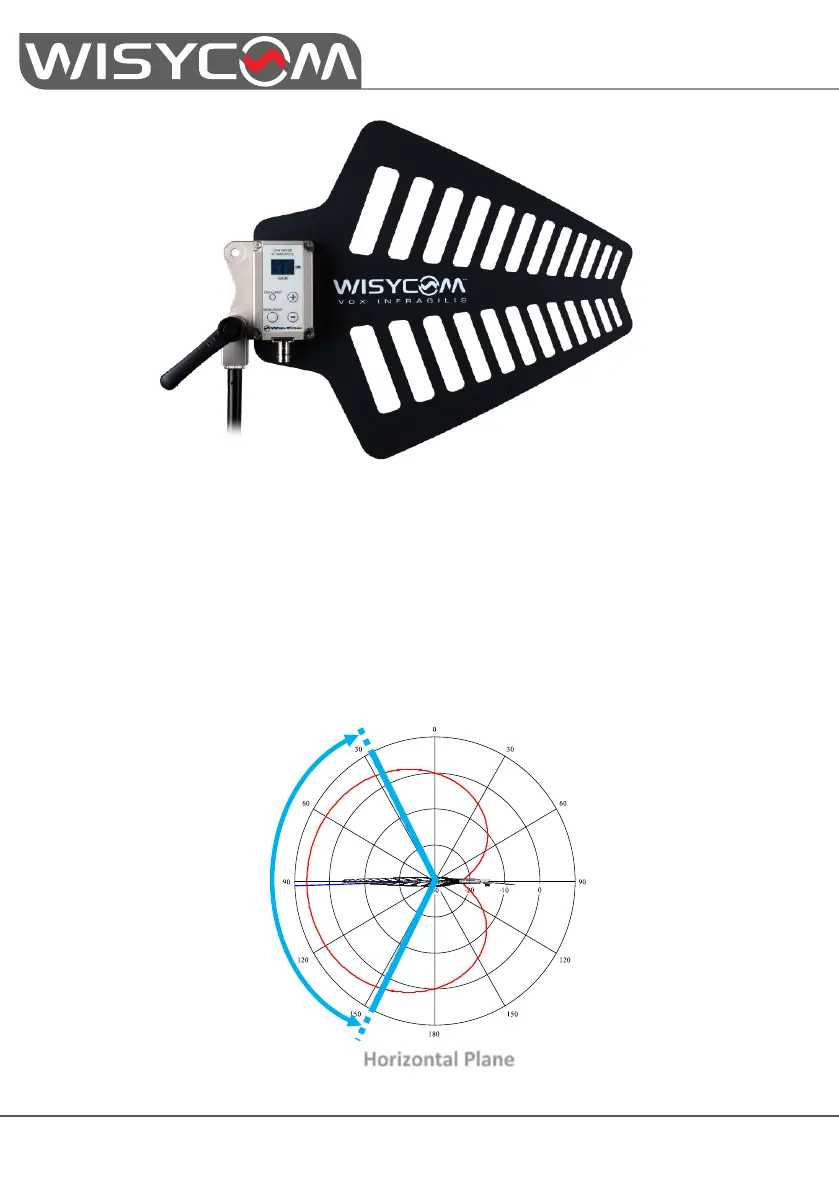

LBNA2/LNNA2 is a wideband UHF antenna LPDA (log periodic dipole array) with integrated
bandpass filter and low noise booster.
It enhances reception providing approximatively 7dB gain with typical beam-width of 120
degrees. Thanks to an exclusive skeleton design with sloped elements, this antenna can work
in 420-1300 MHz band (bypass mode). It is possible to enable the integrated passband filter
(470-960 MHz) and the internal booster (adjustable in 1 dB step).
The feeding line is integrated on the PCB (for mechanical robustness) and all the electronic and
mounting base are made by solid metal with waterproof gasketing.
Horizontal Plane
120°
LBNA2
LNNA2
Wideband Active Antenna
Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy
tel. +390424382605 - www.wisycom.com - e-mail: sales@wisycom.com
Subject to change
without notice
pg. 2
ANTENNA PLACEMENT

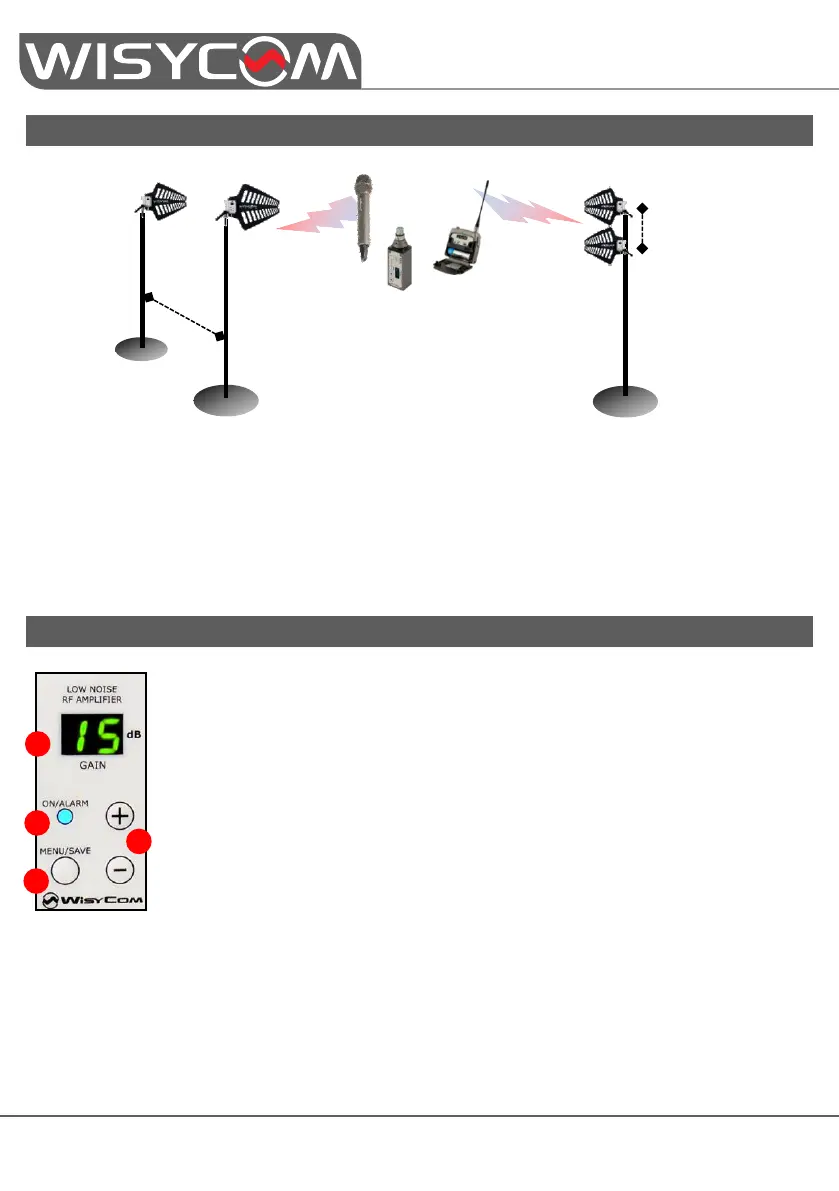

Here above some examples of diversity antenna configurations.
In example 1 the antennas are side to side: although 20 cm (1 foot) it is enough for the diversity
to work, in this case it is advisable to keep them at least at 1 m (5 feet) distance in order not to
get them interfere each other. In the example 2 the antennas are mounted vertically in a more
convenient configuration (since they do not interfere much), this configuration is very good also
with 2 antennas used for transmission.
BOOSTER
Space
diversity
Rx B
Rx A
Rx B
Rx A
Space
diversity
1
2
3
4
1) 2 digits LED display with booster gain indication [dB].
Brightness can be adjusted through the user menu.
2) Signaling LED multicolor:
- White: when turning-on indicates the booster start up
- Yellow: booster bypassed, antenna becomes passive
- Green: active booster with gain between 1 ÷ 8 dB
- Blue: active booster with gain between 9 ÷ 15 dB
- Red: fast blinking, powering insufficient (lower than ≈
9,5Vdc)
3) + / - adjusting buttons
4) MENU/SAVE selection button allows to edit the following
parameters (after 5 second gain indication is restored by default).
Example 1
Example 2
