SPL2216/SPL2208
Active combiner/splitter:
2 zones into 16/8 outs with cascade
Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy
tel. +39 0424 382605 fax. +39 0424 382733 - www.wisycom.com - e-mail: sales@wisycom.com
Subject to change without notice

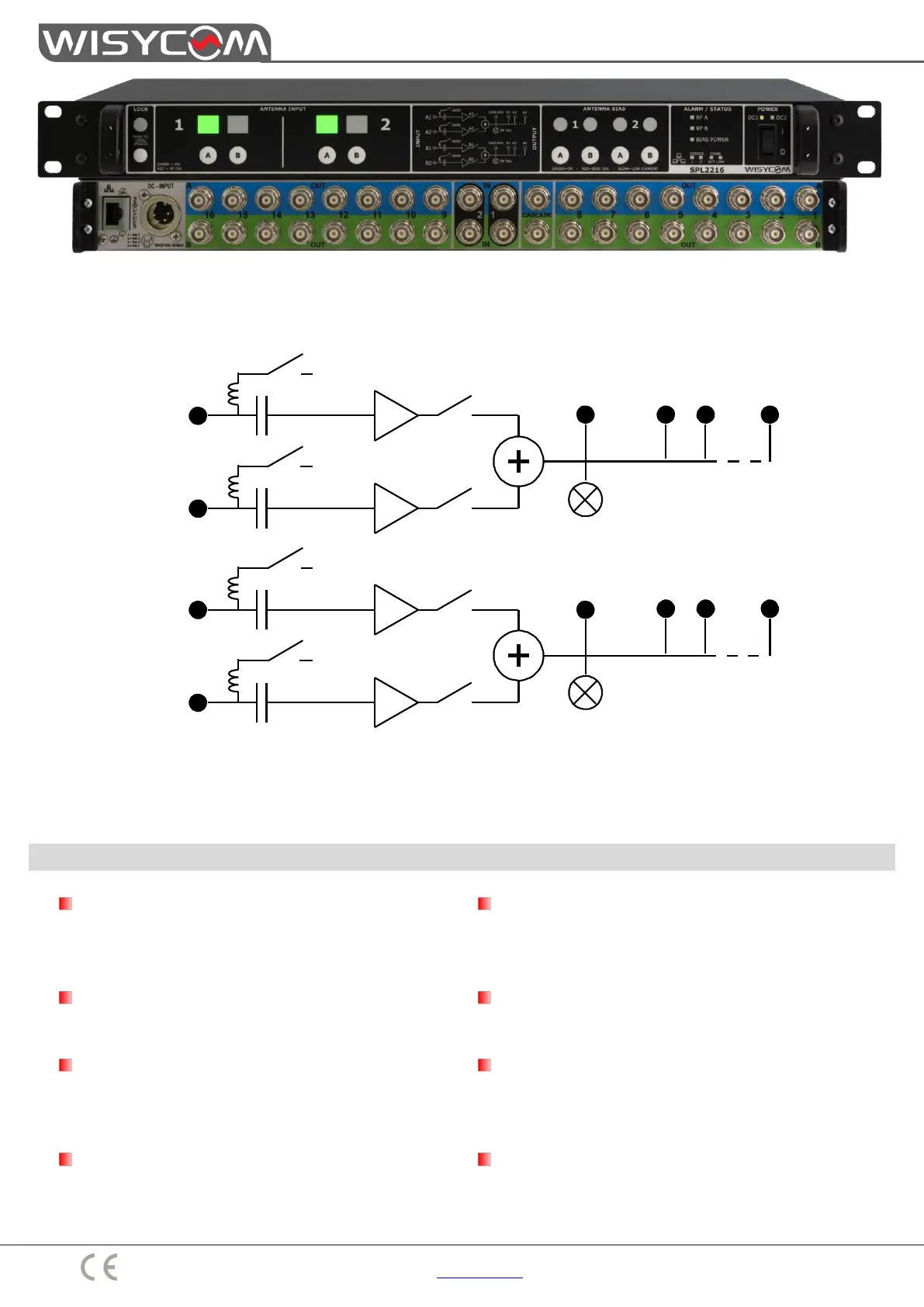

SPL2216/SPL2208 is an active combiner/splitter: 2 x 2 (diversity) input are combined and then distributed in 16 x
2 diversity outputs (for SPL2216) or 8 x 2 diversity outputs (for SPL2208). It allows a basic matrix-selection
between 2 diversity areas: each input feed can be activated with a button on the front panel.
It provides antenna bias & diagnostic check and integrates the Wisycom Remote Antenna Protocol: using the
same coaxial cable it creates a network to monitor and control remotely boosters (BFA) or antennas (LFA).
Thanks to the ethernet interface all of these functionalities can be supported on the PC using the Wisycom
Wireless Manager program.
MAIN FEATURES
Wideband: 170-1260 MHz
High Rf robustness and linearity: for high
density/equally spaced frequencies
operations (i.e. with MTP40s Linear)
Able to feed 16 diversity receivers (for
SPL216), 8 diversity receiver (for SPL2208)
Combine/Select signal from 4 antenna inputs
Redundant DC supply and antennas
diagnostic features
Wisycom Remote Antenna Protocol to
control antennas/booster remotely thru
coax
Ethernet interface to access all of feature
with a PC, making presets and real time
monitoring
Cascade output to connect another
SPL2216/SPL2208 or monitor devices
B1
B1 B2
Bn
B2
B1
B2
BIAS
BIAS
CASCADE
A1
A1 A2
An
A2
A1
A2
BIAS
BIAS
CASCADE
RF OVL
RF OVL
INPUT
OUTPUT
SPL2216/SPL2208
Active combiner/splitter:
2 zones into 16/8 outs with cascade
Wisycom Srl - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy
tel. +39 0424 382605 fax. +39 0424 382733 - www.wisycom.com - e-mail: sales@wisycom.com
Subject to change without notice

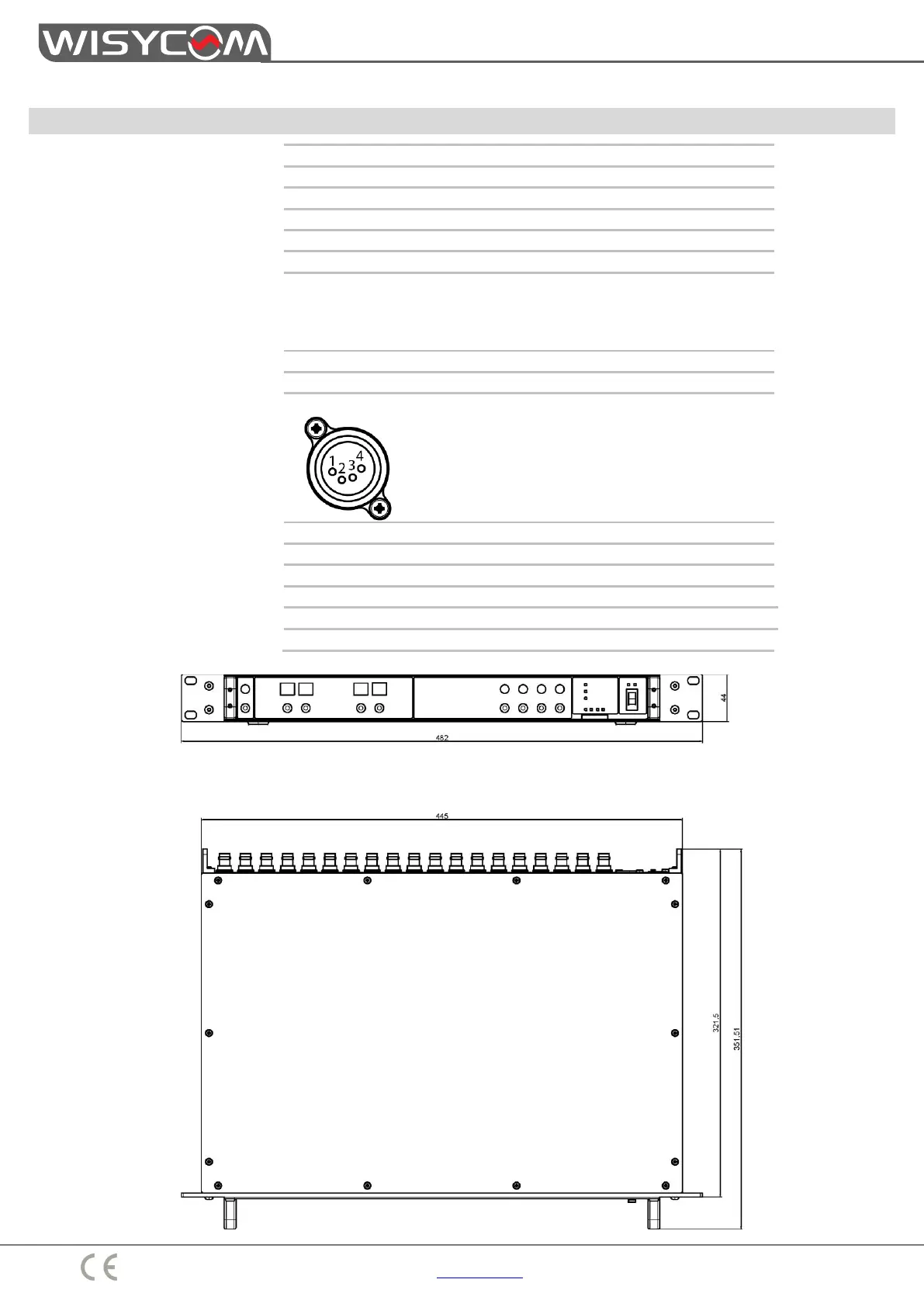

Technical Data
Frequency ranges
170 ÷ 1260 MHz
Input/output gain
+5dB approx.
Input/cascade gain
+1.5dB approx.
Amplifier linearity
± 1 dB (typical)
Noise figure
7,5 dB
Antenna booster powering
+12Vcc / 500mA MAX (for each BNC-female input connector A & B)
Connector
input: 2+2 BNC-F
output: 16+16 BNC-F (SPL2216)
8+8 BNC-F (SPL2208)
cascade: 2 BNC-F
Impedance
50 Ω
Managing interface
10/100 Base TX Ethernet port and thru frontal tactile buttons
Power supply
10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
1: -Vdc1
2: +Vdc2
3: -Vdc2
4:+Vdc1
Power consumption
40W max
Temperature range
-25 ÷ +55 °C
Material
aluminum
Finishing
black varnish
Dimensions
44 x 483 x 351 mm (HxWxD)
Weight
3 kg
