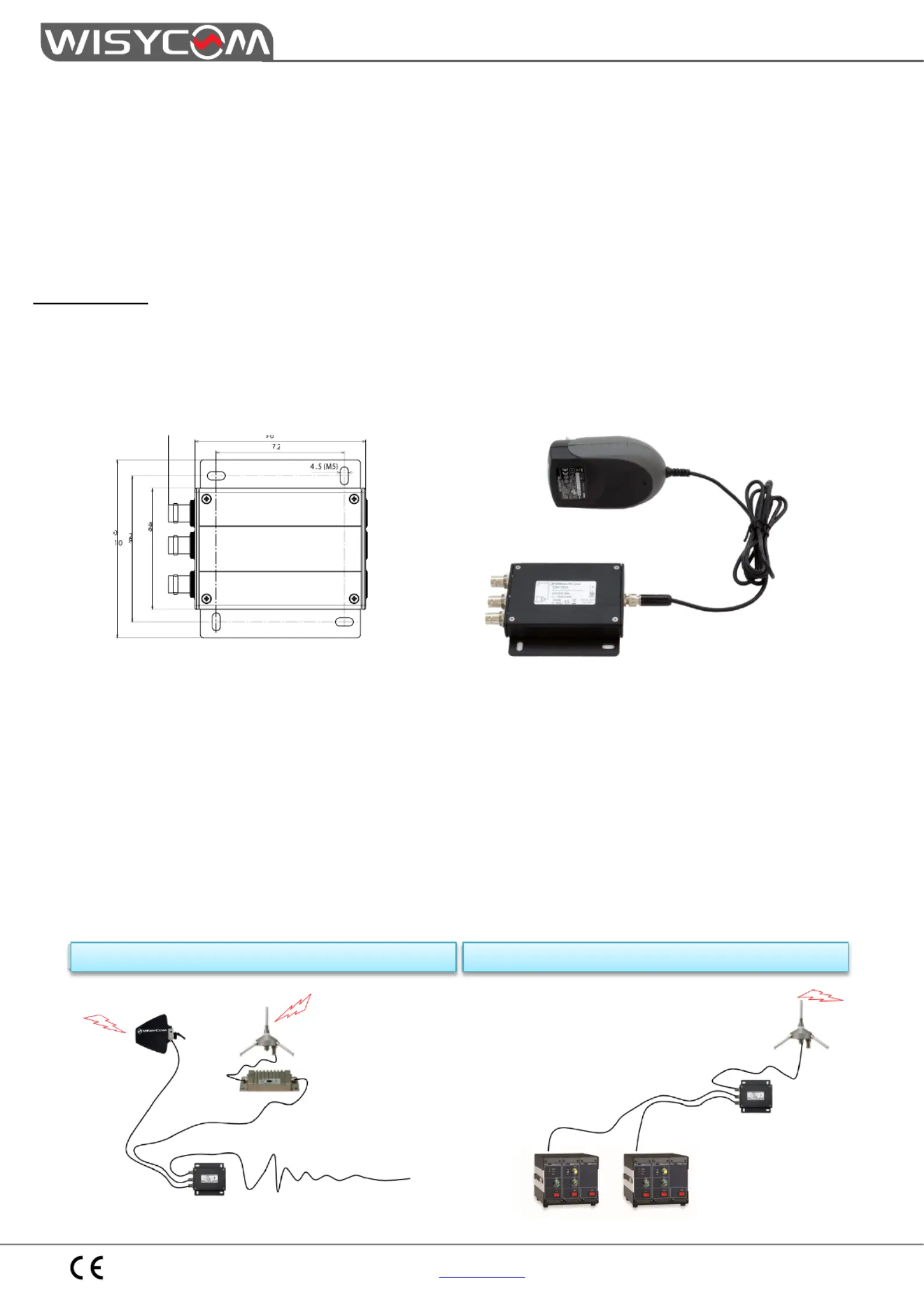

CSA121A
PASSIVE WIDEBAND SPLITTER/COMBINER
Wisycom Srl - Via Tiepolo7/E-35019 Tombolo (PD)-Italy ,
tel. +39 0424 382605 fax. +39 0424 382733 - www.wisycom.com -e-mail: sales@wisycom.com
Subject to change without notice
PASSIVE WIDEBAND COMBINER 1 x 2:1
PASSIVE WIDEBAND SPLITTER 1 x 1:2
CSA121A is designed to combine different areas, covered by antennas in diversity configuration.
CSA121A is DC-coupled for use with antenna booster: it can handle up to 1.5 Amp without
saturation for high power booster (BAW) powering. Mounting plate hole M5.
It is supplied with a power supply for the booster voltage.
In case a booster voltage is not needed, use the CSA2 to have a double splitter combiner. 21
FEATURES:
Small and compact splitter/combiner, stripline construction
Wide band operation
High current standing for high IP3 booster driving (i.e. Wisycom BAW)
Supplied with 230/110 Vac power supply with locking connector
Instruction
Combining: Input are [1] & [2] output [C] (combined signals)
Splitter: Input is [C] output [1] & [2] (split signals)
Variant
STD
standard version
combiner and splitter
SPL
splitter version
only splitter
COM
combiner version
only combiner
Technical Data
Connectors: 3 Bnc-F
Splitter/Combiner loss: 4 dB
Max current thru port: 1.5 A
Max input power (CSA121A) : 125 mW
Bandwidth: 470 MHz MHz –960
Case: Aluminum, black varnish
Weight: 170 g (without power supply)
Impedance: 50 Ω
COMBINER CONFIGURATION WITH LOW POWER TRANMSITTER
COMBINER CONFIGURATION WITH HIGH CURRENT BOOSTER
