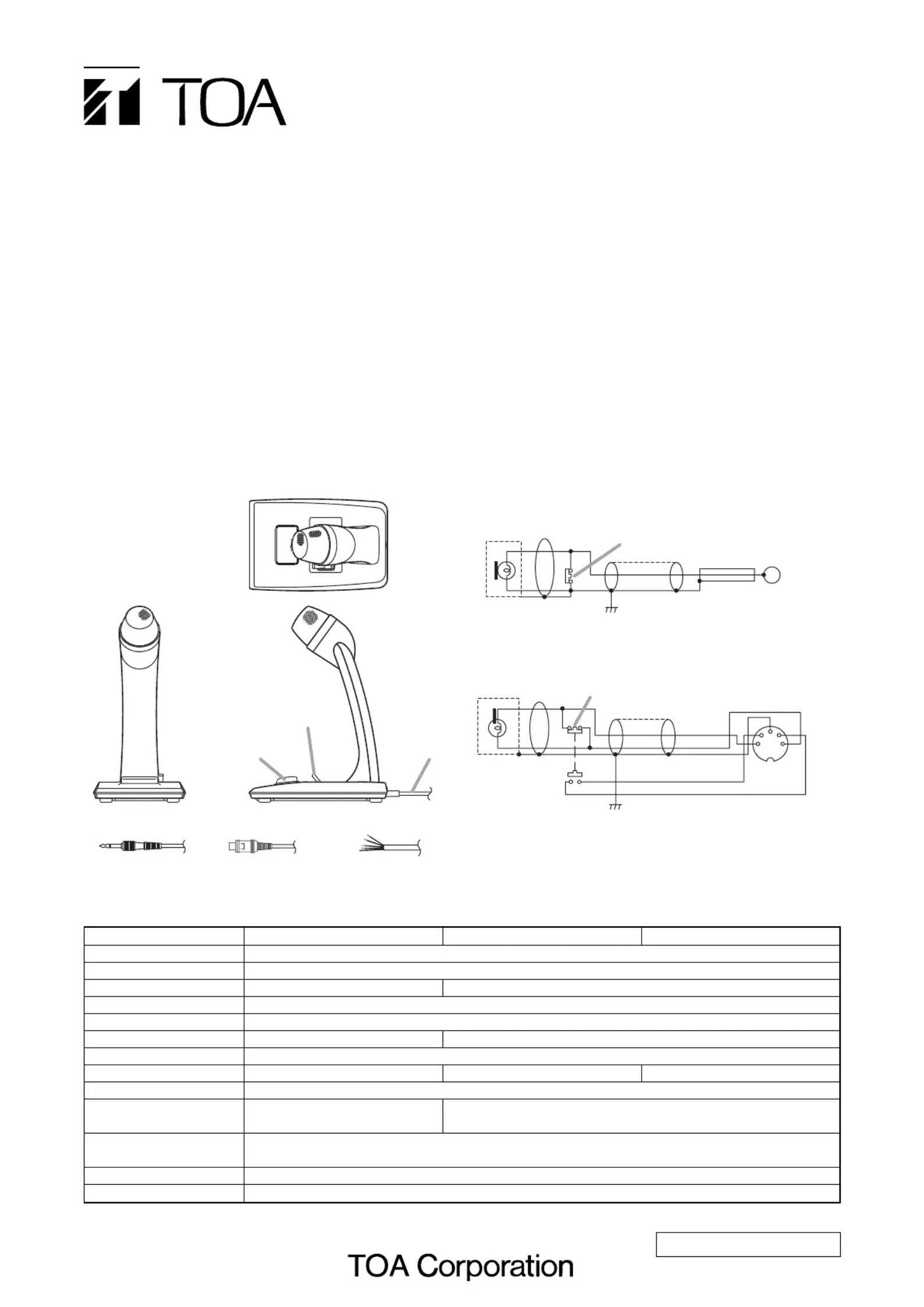

Thank you for purchasing TOA's Paging Microphone.

Please carefully follow the instructions in this manual to ensure long, trouble-

free use of your equipment.

PM-660

PM-660D

PM-660U

PAGING MICROPHONES

INSTRUCTION MANUAL

日本語の取扱説明書は裏面をご覧ください。

1. GENERAL DESCRIPTION

TOA's PM-660 Series Desk-top Paging Microphones are designed for general announcements and paging

calls. They have a large, easy-to-operate talk switch with a convenient lock lever. The PM-660D and PM-660U

feature remote control function interlocked with the talk switch to activate power amplifier’s power or chime

unit. For the remote control function and connections to the power amplifier, refer to the instruction manual

enclosed with the amplifier.

533-05-018-90

URL: http://www.toa.jp/

2. NOMENCLATURE

Lock lever

Talk switch

PM-660 PM-660D PM-660U

Phone plug 5-pin DIN plug Loose end

Cable

3. CIRCUIT DIAGRAMS

Shield

Body earth

Phone Plug

Push to Talk

Shield

Body earth

Push to Talk

PM-660D (5-pin DIN plug)

PM-660U (loose end)

Black

Blue

Red

White

4 5

[PM-660]

[PM-660D/660U]

4. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.

Model PM-660 PM-660D PM-660U

Type Moving coil microphone

Directivity Unidirectional

Rated Impedance 600 , unbalanced 600 , balancedΩ Ω

Rated Sensitivity –58 dB (1 kHz, 0 dB = 1 V/Pa)

Frequency Response 100 Hz to 10 kHz

Connection Cable 1-core shielded cable 2-core shielded plus 2-core cable

Cable length 2.5 m (8.2 ft)

Terminal of Cable Phone plug 5-pin DIN plug None

Talk Switch Push-to-talk type (short-off circuit, with lock lever)

Remote Switch None Leaf spring contact (interlocked with talk switch),

30 V DC, under 500 mA

Finish Head: Zinc plated steel wire, gray, paint

Body: ABS resin, gray

Dimensions 100 (w) x 215 (h) x 150 (d) mm (3.94" x 8.46" x 5.91")

Weight 440 g (0.97 lb) (cable excluded)
