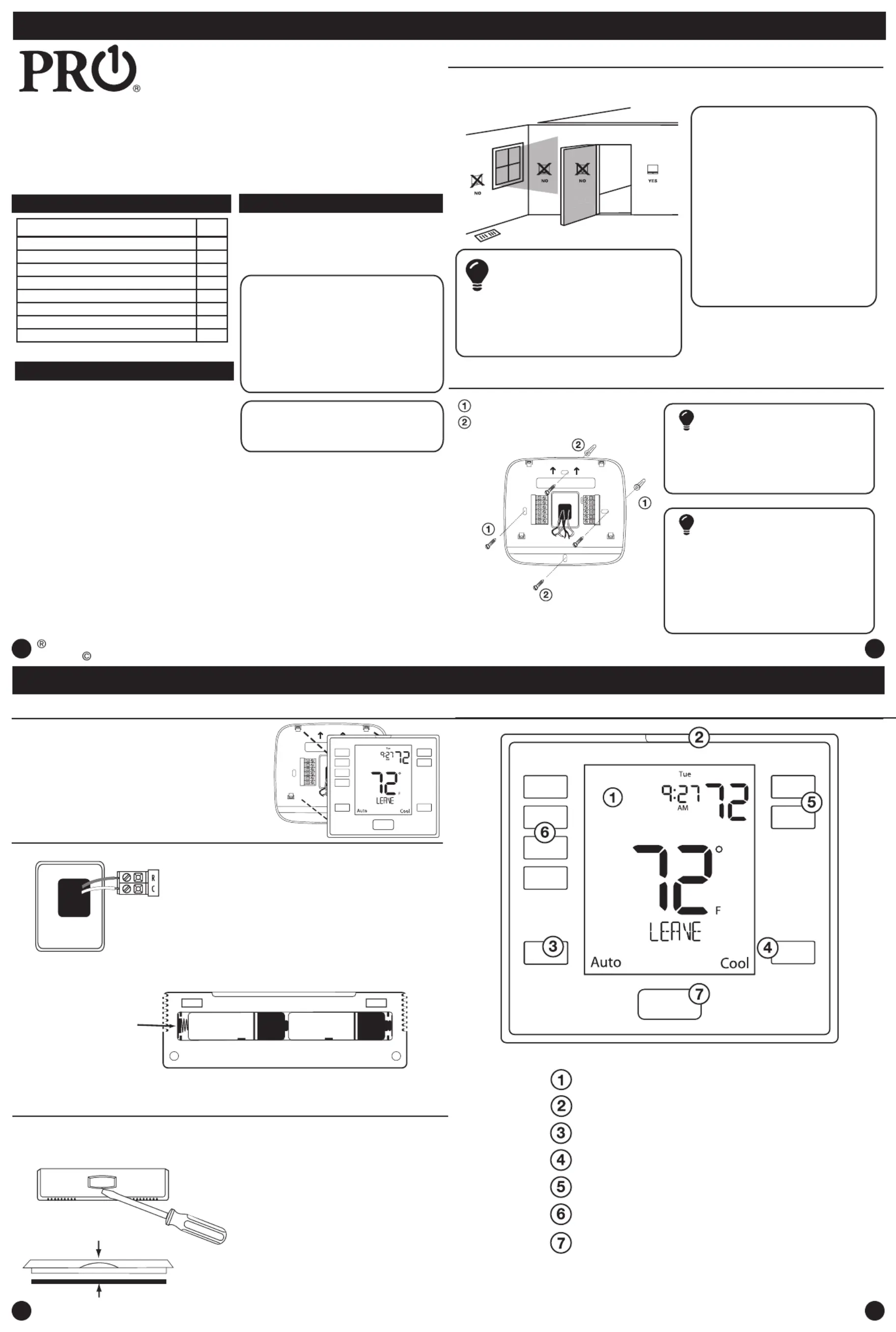

Set At
Menu
T755(S)
Installation Manual
Pro1 Technologies
Toll Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM Eastern
Power Type
Battery Power
Hardwire (Common Wire)
Hardwire (Common Wire) with
Battery Backup
A trained, experienced
technician must install this
product.
Carefully read these
instructions. You could damage
this product or cause a
hazardous condition if you fail to
follow these instructions.
Una version en español de este
manual se puede descargar en
la pagina web de la compañia.
Rev. 2212
U.S. Registered Trademark. Patents pending
Copyright 2022 All Rights Reserved.
1
1
1
1
Installation Tips
2
2
2
2
3
3
3
3
4
4
4
4
Installation Tips
Thermostat Application Guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (With Aux. or Emergency Heat)
Multi-Stage Systems
Heat Only Systems
Cool Only Systems
Millivolt
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Table of Contents
Installation Tips
Thermostat Quick Reference
Wiring
Wiring Diagrams
Features
Technician Setup
Programming Thermostat
Specications
Page
2-3
4-5
6
7-9
10
20-23
Subbase Installation
The thermostat should be installed approximately 4 to 5 feet above the
oor. Select an area with average temperature and good air circulation.
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind
the thermostat
• In areas that do not require
conditioning
• Where there are dead spots
or drafts
(in corners or behind doors)
• Where there might be
concealed chimneys or
pipes
Wall Locations
Vertical Mount
Horizontal Mount
For vertical mount put one screw on the top
and one screw on the bottom.
For horizontal mount put one screw on the
left and one screw on the right.
All of our products are mercury free.
However, if the product you are
replacing contains mercury, dispose of
it properly. Your local waste
management authority can give you
instructions on recycling and proper
disposal.
Pick an installation location that is easy for
the user to access. The temperature of the
location should be representative of the
building.
Installation Tip
Mercury Notice
Do not install
thermostat in locations:
Failure to disconnect the power before
beginning to install this product can
cause electrical shock or equipment
damage.
Installation Tip:
Electrical Hazard
Mount Thermostat
Align the 4 tabs on the subbase with
corresponding slots on the back of the
thermostat, then push gently until the
thermostat snaps in place.
Battery Installation
Getting to know your thermostat
Glow in the dark light button
Fan Button
System Button
Temperature Setpoint Buttons
User Buttons
Thermostat Quick Reference
11-19
LCD Display
P.O. Box 3377
Springeld, MO 65808-3377
Private Label Badge
Battery installation is optional if thermostat is
hardwired (R and C terminal connected to 24V
power).
Important:
High quality alkaline batteries are recommended.
Rechargeable batteries or low quality batteries
do not guarantee a 1-year life span.
Insert 2 AA
Alkaline batteries
(included). High
quality alkaline
batteries are
recommended.
Located ont p1-he back of the thermostat.
Gently slide a screwdriver into the
bottom edge of the badge. Gently turn
the screwdriver counter clockwise. The
badge is held on by a magnet in the well
of the battery door. The badge should pry
o easily. DO NOT USE FORCE.
About The Private Label Badge
All of our thermostats use the same universal magnetic badge. Visit the
company website to learn more about our free private label program.
Magnet in door
Use the bevel on lower ridge
Set At
Menu
24

Em.Heat
AutoCool
Set At
On LHM
Tech Set
Set Sched
Next
Run Sched
Set Time
Hold
Done
Menu
Prev
HOLD
STAGES
1+2+3
COOL ON
HEAT ON
FAN ON

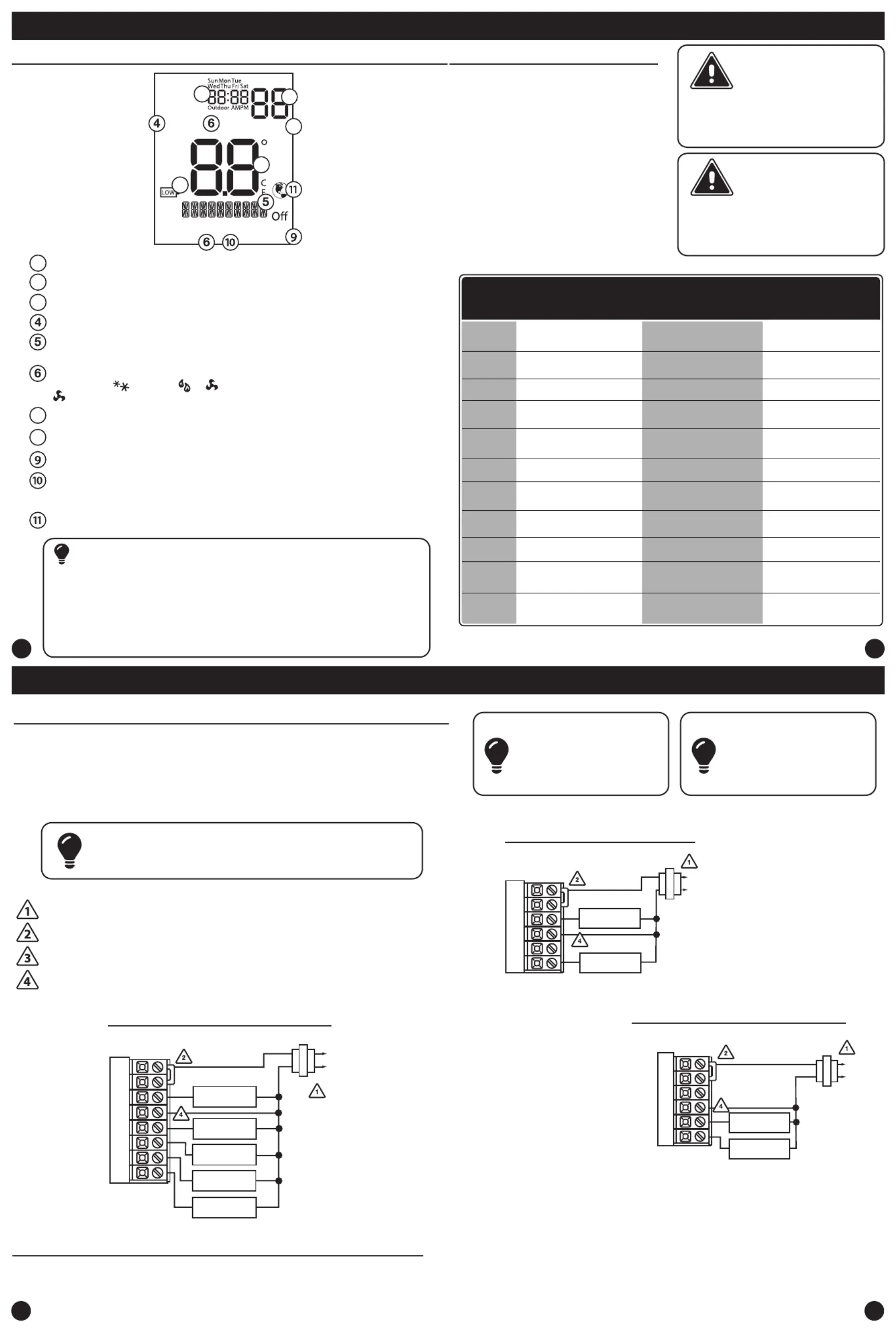

Thermostat Quick Reference
The low battery indicator is displayed when the AA battery power is low. If the user
fails to replace the battery within 21 days, the screen will only show the low battery
indicator but maintain all functionality. If the user fails to replace the batteries after
an additional 21 days (days 22-42 since rst “low battery” display) the setpoints will
change to 55˚F (Heating) and 85˚F (Cooling). If the user adjusts the setpoint away from
either of these, it will hold for 4 hours then return to either 55˚F or 85˚F. After day 63
the batteries must be replaced immediately to avoid freezing or overheating because
the thermostat will shut the unit o until the batteries are changed.
Important
Indicates the current room temperature
Time and day of the week
Setpoint: Displays the selected setpoint temperature.
Hold is displayed when the thermostat program is permanently overridden.
System Operation Indicators:
The COOL ON , HEAT ON or icon will display when the COOL, HEAT, or
(fan) is on. The compressor delay feature is active if these are ashing.
Low Battery Indicator: Replace batteries when this indicator is shown.
Menu Options: Shows dierent options.
Program Time Periods: This thermostat has 4 programmable time periods
per day.
Getting to know your thermostat
Wiring
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
Wiring Tips
C Terminal
The C (common wire) terminal does
not have to be connected when the
thermostat is powered by batteries.
Wire Specications
Use shielded or non-shielded
18-22 gauge thermostat wire.
Caution:
Electrical Hazard
All components of the control
system and the thermostat
installation must conform to Class II
circuits per the NEC Code.
Warning:
Installation Tip: Do not overtighten terminal block screws, as this
can damage the terminal block. A damaged terminal block can
keep the thermostat from tting on the subbase correctly or cause
system operation issues. Max Torque = 6in-lbs.
Wiring
If you are replacing a thermostat,
make note of the terminal
connections on the thermostat that
is being replaced. In some cases
the wiring connections will not be
color coded. For example, the green
wire may not be connected to the G
terminal.
Loosen the terminal block screws.
Insert wires then retighten terminal
block screws.
Place nonammable insulation into
wall opening to prevent drafts.
1.
2.
3.
Failure to disconnect the power
before beginning to install this
product can cause electrical shock
or equipment damage.
Power supply
Factory - installed jumper. Remove only when installing on a 2 transformer systems.
System: Indicates current mode of operation.
Note: This thermostat is
hardwire powered when the
24V transformer is
connected to the Common
and of the RC terminals
thermostat.
Use either O or B terminals for changeover valve.
Optional 24 VAC common connection when thermostat is used in battery power mode.
Terminal
2 Heat 2 Cool
Conventional
System
2 Heat 2 Cool
Heat Pump
System
3 Heat 2 Cool
Heat Pump
System
RC
RH
C
B
O
G
W/E
W2
Transformer power
(cooling)
Transformer power
(heating)
Transformer common
Energized in heating
Energized in cooling
Fan relay
First stage of heat
Second stage of heat
Transformer power
(cooling)
Transformer power
(heating)
Transformer common
Heat pump changeover
valve energized in heating
Fan relay
First stage of
emergency heat
Auxiliary heat relay,
second stage of heat
Heat pump changeover
valve energized in cooling
Transformer power
(cooling)
Transformer power
(heating)
Transformer common
Heat pump changeover
valve energized in heating
Fan relay
First stage of
emergency heat
Auxiliary heat relay,
third stage of heat
Heat pump changeover
valve energized in cooling
Wiring Diagrams
Stages: Stage 1 will appear on the display when the 1st stage of heat or
cool is on. +2 will appear on the display when the 2nd stage of heat or cool
is on. +3 will appear on the display when the 3rd stage of heat or cool is on.
Y
Y2
First stage of cool
Second stage of cool
First stage of heat & cool
Second stage of cool
First stage of heat & cool
Second stage of cool
& second stage of heat
Note: In many systems
with no emergency heat
relay a jumper can be
used between E and W2.
1
2
3
7
8
1
2
3
7
8
Globe: Globe is displayed if an energy ecient temperature has been selected.
S1/S2
Remote Sensor Remote Sensor Remote Sensor
Typical 2H/2C System: 1 Transformer
Typical Heat Only System With Fan
Typical Cool-Only System With Fan
FAN RELAY
HEAT RELAY
RC
RH
Y
C
W/E
G
C
R
L2
L1(HOT)
FAN RELAY
COMPRESSOR
RELAY
C
R
L2
L1(HOT)
RC
RH
Y
C
G
W/E
RC
RH
Y
C
W/E
G
W2
Y2
COMPRESSOR
RELAY
FAN RELAY
HEAT RELAY 2
COMPRESSOR
RELAY 2
HEAT RELAY
C
R
L2
L1(HOT)
Note:
In many systems with no emergency heat relay a jumper can be installed
between W/E and W2.
Wiring Diagrams
Auto

Features
Wiring Diagrams
9
9
9
9
10
10
10
10
11
11
11
11
Tech Settings
Swing Setting Tip
Temperature swing, sometimes called dierential or cycle rate, can be customized
for this individual application. For most applications choose a swing setting that is
as long as possible without making the occupants uncomfortable.
Technician Setup Menu
Tech Settings
Adjustment Options Default
Tech Settings
LCD Will Show
12
12
12
12
Temporary and Permanent Hold Feature
When cool or heat is turned on, the thermostat will display HOLD
and on the left of your screen when you press theRUN SCHED
or button.
Temporary Hold: At this time if you do nothing, the temperature will
remain at this setpoint temporarily for 4 hours.
Permanent Hold HOLD: If you press the key on the left of your
screen, you will see appear below the setpoint temperature in HOLD
the display. The thermostat will now permanently stay at this
setpoint and can be adjusted using the or keys.
To Return to Running Schedule RUN SCHED: Press the button on
the left of your screen to exit either temporary or permanent hold.
Filter Change Reminder
If your installing contractor has congured the thermostat to remind
you when the air lter needs to be changed, you will see FILT in the
display when your air lter needs to be changed.
Resetting the lter change reminder: FILT When reminder is
displayed, you should change your air lter and reset the reminder
by holding down the second button from the top left side of the
thermostat for 3 seconds.
(If using programming)
Typical 2H/2C System: 2 Transformer
REMOVE JUMPER
RC
RH
Y
C
W/E
G
W2
Y2
C
R
L2
L1(HOT)
C
R
L2
L1(HOT)
COMPRESSOR
RELAY
HEAT RELAY
FAN RELAY
HEAT RELAY 2
COMPRESSOR
RELAY 2
Typical 2H/1C Heat Pump System
RC
RH
Y
C
W/E
G
W2
B
COMPRESSOR
RELAY
FAN RELAY
EMERGENCY
HEAT
C
R
L2
L1(HOT)
O
COOL
CHANGEOVER
VALVE
HEAT
CHANGEOVER
VALVE
This feature allows the installer
to change the calibration of the
room temperature display. For
example, if the thermostat reads
70˚ and you would like it to read
72˚ then select +2.
OFF
This feature will ash a reminder
after the elapsed run time to
remind the user to change the
lter. A setting of “OFF” will
disable this feature.
Filter Change
Reminder
You can adjust the lter
change reminder from “OFF”
to 2000 hours of runtime in
50 hour increments.
Tech Setup Steps
Room
Temperature
Calibration
0˚F
You can adjust the room
temperature display to read
up to 4˚above or below the
factory calibrated reading.
Adjustment Options Default
LCD Will Show
FILTER
OF
0
This thermostat has a technician setup menu for easy installer
conguration. To set up the thermostat for your particular application:
1. Press the button.MENU
2. Press and hold the button for 3 seconds. This 3 TECH SET
second delay is designed so that homeowners do not accidentally
access the installer settings.
3. Congure the installer options as desired using the table below.
Use the or keys to change settings and the NEXT
PREVor key to move from one step to another.
Only press the key when you want to exit the Note: DONE
Technician Setup options.
4. Press the key to exit.DONE
The swing setting often called
“cycle rate”, “dierential” or
“anticipation” is adjustable. A
smaller swing setting will cause
more frequent cycles and a larger
swing setting will cause fewer
cycles.
Cooling
Swing
The cooling swing setting
is adjustable from 0.2˚ to
2˚. For example: A swing
setting of 0.5˚ will turn the
cooling on at approximately
0.5˚ above the setpoint
and turn the cooling o at
approximately 0.5˚ below
the setpoint.
0.5
0.5˚
Swing Setting Tip
The second stage will turn on at 2x the swing setting. The second stage will
turn o when 1x the swing is reached. For example, if the swing setting is .5
degrees for heating and the thermostat is set at 70 F, the rst stage will turn ˚
on at approximately 69.5 F. The second stage will turn on at 69˚ ˚F. The second
stage will turn o at 69.5 F and the rst will turn o at 70.5 F. If the third ˚ ˚
stage is used, it will turn on at 68.5 F and turn o at approximately 69˚ ˚F.
COOL SWING
CALIBRATE
PTAC Medium
Fan Speed
Terminal
(Only displayed
if PTAC mode is
ON and PTAC fan
speeds is set to 3)
This setting will select the
terminal for medium fan speed
operations. The selected terminal
cannot be used for reversing valve
operations when heat pump is
enabled.
Use the and buttons
to select O/B terminals.
0
0
The swing setting often called
“cycle rate”, “dierential”, or
“anticipation” is adjustable. A
smaller swing setting will cause
more frequent cycles and a larger
swing setting will cause fewer
cycles.
Heating
Swing
The heating swing setting
is adjustable from 0.2˚ to
2˚. For example: A swing
setting of 0.5˚ will turn the
heating on at approximate-
ly 0.5˚ below the setpoint
and turn the heating o at
0.5˚ above the setpoint.
0.4˚
0.4
HEAT SWING
MED FAN TERM
PTAC Mode
This setting allows the thermostat
to operate a PTAC. This will allow
for multiple fan speeds selectable
in the next two tech settings.
Use the and buttons
to select ON/OFF.
ON
OF
PTAC MODE
This setting allows you to choose
the number of fan speeds the
thermostat will control.
G = Low Speed Fan
B/O = Medieum Speed Fan
Y2 = High Speed Fan
PTAC Fan
Speeds
(Only displayed if
PTAC mode is ON)
2
2
FAN SPEEDS
When turned on the thermostat
will operate a heat pump. EM.
Heat will show as an option in the
system switch tech setting.
Use the and button to
adjust.
Heat Pump
OFF congures the
thermostat for conventional
systems.
ON congures the
thermostat for heat pump
systems.
OFF
OF
HEAT PUMP
Use the and buttons
to select , 2 or 3.
1. Speeds: ON, Auto
2. Speeds: Low, High, Auto
3. Speeds: Low, Med, High,
Auto
Produktspecifikationer
Varumärke: | Pro1 |
Kategori: | Termostat |
Modell: | T755S |
Behöver du hjälp?
Om du behöver hjälp med Pro1 T755S ställ en fråga nedan och andra användare kommer att svara dig
Termostat Pro1 Manualer
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
21 Augusti 2025
Termostat Manualer
- Maginon
- Essent
- Hugo Muller
- Perel
- Elgato
- Schneider
- HQ
- Wachendorff
- Enda
- Go Green
- Bosch
- Thermy
- Viessmann
- Max
- MundoControl
Nyaste Termostat Manualer
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
