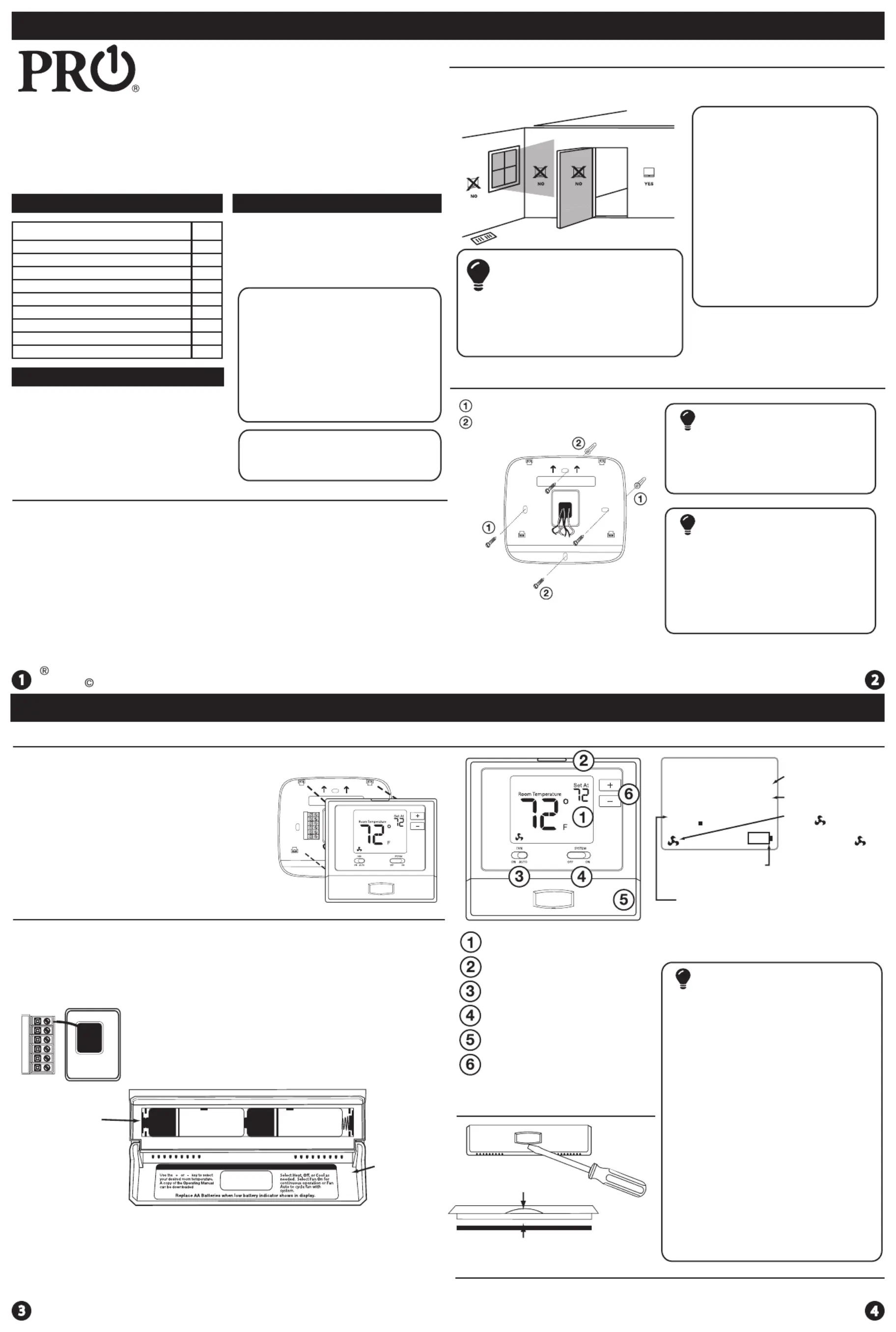

T771
Installation Manual
Pro1 Technologies
Thermostat Application Guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (With Aux. or Emergency Heat)
Multi-Stage Systems
Heat Only Systems
Heat Only Systems - Floor or Wall Furnace
Cool Only Systems
Millivolt
Yes
Yes
No
No
No
Yes
Yes
Yes
Yes
Power Type
Battery Power
Hardwire (Common Wire)
Hardwire (Common Wire) with
Battery Backup
Table of Contents
Specications
Installation Tips
Thermostat Quick Reference
Wiring
Wiring Diagrams
Technician Setup
Page
A trained, experienced
technician must install this
product.
Carefully read these
instructions. You could damage
this product or cause a
hazardous condition if you fail
to follow these instructions.
Una version en español de este
manual se puede descargar en
la pagina web de la compañia.
Rev. 1823
Specications
Mount Thermostat
Align the 4 tabs on the subbase with
corresponding slots on the back of the
thermostat, then push gently until the
thermostat snaps in place.
Battery Installation
Battery installation is recommended even if thermostat is hardwired
(C terminal connected). When thermostat is hardwired and batteries
are installed, the thermostat will activate a compressor delay of 5
minutes when the thermostat detects a power outage from the
hardwired power supply.
Important:
High quality alkaline batteries are recommended.
Rechargeable batteries or low quality batteries
do not guarantee a 1-year life span.
Insert 2 AA
Alkaline batteries
(included). High
quality alkaline
batteries are
recommended.
Simple
operating
instructions
are found
on the back
of the
battery
door.
Installation Tips
2-3
4
5
6
7-8
1
Installation Tips Thermostat Quick Reference
Getting to know your thermostat
Glow in the dark light button
Fan switch
System switch
Easy change battery door
Temperature setpoint buttons
LCD
Removing The Private
Label Badge
About The Badge
All of our thermostats use the same universal magnetic badge. Visit the
company website to learn more about our free private label program.
Magnet in door
Use the bevel on lower ridge
Subbase Installation
The thermostat should be installed approximately 4 to 5 feet above the
oor. Select an area with average temperature and good air circulation.
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind
the thermostat
• In areas that do not require
conditioning
• Where there are dead spots
or drafts
(in corners or behind doors)
• Where there might be
concealed chimneys or
pipes
Wall Locations
Vertical Mount
Horizontal Mount
For vertical mount put one screw on the top
and one screw on the bottom.
For horizontal mount put one screw on the
left and one screw on the right.
All of our products are mercury free.
However, if the product you are
replacing contains mercury, dispose of
it properly. Your local waste
management authority can give you
instructions on recycling and proper
disposal.
Pick an installation location that is easy for
the user to access. The temperature of the
location should be representative of the
building.
Installation Tip
Mercury Notice
Do not install
thermostat in locations:
Failure to disconnect the power before
beginning to install this product can
cause electrical shock or equipment
damage.
Installation Tip:
Electrical Hazard
U.S. Registered Trademark. Patents pending
Copyright 2018 All Rights Reserved.
The display range of temperature ... 20˚F to 99˚F (-7˚C to 37˚C)
The control range of temperature.... 25˚F to 99˚F (-4˚C to 37˚C)
Swing (cycle rate or dierential) ...... Heating is adjustable from 0.2˚ to 2.0˚
Cooling is adjustable from 0.2˚ to 2.0˚
Power source ...........................................18 to 30 VAC, NEC Class II, 50/60 Hz
for hardwire
Battery power from 2 AA Alkaline
batteries
Operating ambient ............................... 20˚F to +105˚F (-7˚C to +41˚C)
Operating humidity .............................. 90% non-condensing maximum
Dimensions of thermostat ................. 4.7”W x 4.4”H x 1.1”D
P.O. Box 3377
Springeld, MO 65808-3377
Toll Free : 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM Eastern
=
88
Room Temperature
o
88
Set At
C
COOL ON
HEAT ON
F
LOW
Displays the
selected setpoint
temperature.
System Operation
Indicators:
The COOL ON, HEAT
ON or icon will
display when the
COOL, HEAT, or
(fan) is on.
NOTE: The
compressor
delay feature is active
if these icons are
ashing. The
compressor will not
turn on until the 5
minute delay has
elapsed.
Low Battery Indicator:
Replace batteries when
indicator is shown.
Indicates the current
room temperature.
The low battery icon is displayed when the AA
battery power is low. Whenever the thermostat
detects low battery voltage from the AA batter-
ies, the low battery icon will begin ashing on
the screen ftor 21 days (if the batteries are not
changed). If the batteries are not changed 22
days after the thermostat detects low battery
voltage, the thermostat screen will only show
the ashing battery icon until buttons are
pressed. If the batteries are not changed 43
days after the thermostat detects low battery
voltage, the thermostat screen will only
show the ashing battery icon until buttons
are pressed and the set points will oset to
85°F/29°C in cooling and 55°F/13°C in heating.
At this stage, set point changes can be made
temporarily but, the set points will change back
to defaulted values after a 4-hour period. The
thermostat will continue to perform this low
battery ashing, temperature oset condition
until the internal voltage threshold is reached.
When the thermostat internal voltage threshold
is reached, all relays will be opened and the
thermostat will become inoperable until new
batteries are installed.
Important
Wiring
Caution:
Electrical Hazard
All components of the control
system and the thermostat
installation must conform to
Class II circuits per the NEC Code.
Warning:
Do not overtighten terminal
block screws, as this can
damage the terminal block.
A damaged terminal block
can keep the thermostat
from tting on the subbase
correctly or cause system
operation issues.
Installation Tip
Max Torque = 6in-lbs.
Wiring
If you are replacing a thermostat,
make note of the terminal
connections on the thermostat that
is being replaced. In some cases
the wiring connections will not be
color coded. For example, the
green wire may not be connected
to the terminal.G
Loosen the terminal block screws.
Insert wires then retighten terminal
block screws.
Place nonammable insulation into
wall opening to prevent drafts.
1.
2.
3.
Terminal Designations
Failure to disconnect the power
before beginning to install this
product can cause electrical shock
or equipment damage.
Wiring Diagrams
Power supply
Optional 24 VAC common connection when thermostat is used in battery
power mode
Typical Heat Only System
Typical Heat Only System With Fan
Typical Cool-Only System
HEAT RELAY
C
R
L2
L1(HOT)
FAN RELAY
HEAT RELAY
C
Y/W
G
C
R
L2
L1(HOT)
FAN RELAY
COMPRESSOR
RELAY
C
R
L2
L1(HOT)
Technician Setup Technician Setup
1. Select ON with the System Switch.
2. Hold down the + and - buttons together for 3 seconds.
3. Use the + and - button to change setting for that step, and the glow in the dark
button to move from one step to another. Toggle system switch when done.
Selecting Heat or Cool
The swing setting, often called
“cycle rate”, “dierential” or
“anticipation” is adjustable. A
smaller swing setting will cause
more frequent cycles and a larger
swing setting will cause fewer
cycles. (reference the Technician
Setup Menu steps above for how
to enter this Menu)
The swing setting is
adjustable from 0.2˚ to
2˚. For example: A swing
setting of 0.5 will turn
the system on and o at
approximately 0.5˚ away
from the setpoint. Only the
swing for the selected mode
(Heat or Cool)is displayed in
the menu.
Swing
0.4
This feature allows you to set a
maximum heat setpoint valve.
The setpoint temperature cannot
be raised above this value. You
can also set a minimum cool
setpoint value if in cool mode.
Use the or key to
select the maximum heat
setpoint or the minimum
cool depending on the
selected mode (Heat or
Cool).
Temperature
Setpoint
Limit
25
Tech Setup Steps
Adjustment Options Default
LCD Will Show
RH
C
Y/W
G
C
Y/W
G
Wiring Tips
C Terminal
The C (common wire) terminal does
not have to be connected when the
thermostat is powered by batteries.
Wire Specications
Use shielded or non-shielded
18-22 gauge thermostat wire.
0.4
SL
SL
99
1. Select OFF with the System Switch.
2. Hold down the + and - buttons together for 3 seconds.
3. Use the + and - button to change setting for that step, and the glow in the dark
button to move from one step to another. Toggle system switch when done.
Room
Temperature
Calibration
This feature allows the installer
to change the calibration of the
room temperature display. For
example, if the thermostat reads
70˚ and you would like it to read
72˚ then select +2.
0˚F
You can adjust the room
temperature display to read
up to 4˚above or below the
factory calibrated reading.
CA
0
O
F
Gas or Electric Setup
Fan Operation Switch
Electric: For installations that control
the fan during a call (for cool or heat),
move the fan operation switch to the
ELECTRIC position.
Tech Setup Steps
Adjustment Options Default
LCD Will Show
The compressor short cycle delay
prevents the compressor from
switching on and o too often.
Selecting “ON” will not allow
the compressor to be turned
on for 5 minutes after the
last time the compressor was
switched o. Select “OFF” to
remove this delay.
Compressor
Short Cycle
Delay
ON
Cd
Select F for Fahrenheit
temperature read out or select C
for Celsius read out.
F for Fahrenheit
C for Celsius
F or C
F
F
FC
HE
This feature allows the installer to
congure the thermostat for Heat
only or Cool only operation.
Note: When in COOL mode ELEC
switch must be turned on.
Warning: Compressor may freeze
if the FAN is not ON, make sure
you are in ELEC mode while in
COOL mode.
Heat or Cool
Heat or Cool
HE - HEAT
CO - COOL
HE
NOTE: When in COOL mode the FAN
icon will ash if the switch is in GAS
mode. This ash is a reminder to
select ELEC to engage the fan with
the compressor.
99
25
SG
RH
C
Y/W
Common wire from system transformer
Fan relay
G
Heat relay or Compressor relay
Transformer power for heating
RC
Do NOT remove the jumper pin. The
jumper pin is required for both heating
and cooling applications.
Warning:
RH
RC
RH
RC
RC
Transformer power for cooling
Gas: For installations that do NOT
control the fan during a call (for cool
or heat), move the fan operation
switch to the GAS position.
Produktspecifikationer
| Varumärke: | Pro1 |
| Kategori: | Termostat |
| Modell: | T771 |
Behöver du hjälp?
Om du behöver hjälp med Pro1 T771 ställ en fråga nedan och andra användare kommer att svara dig
Termostat Pro1 Manualer
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
23 Augusti 2025
Termostat Manualer
- Wattio
- EQ-3
- Trotec
- Brink
- Itho-Daalderop
- Nefit
- ICY
- Intergas
- Ouellet
- Warmup
- Oertli
- Coati
- Technoline
- Oreg
- MKC
Nyaste Termostat Manualer
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
24 Augusti 2025
23 Augusti 2025
