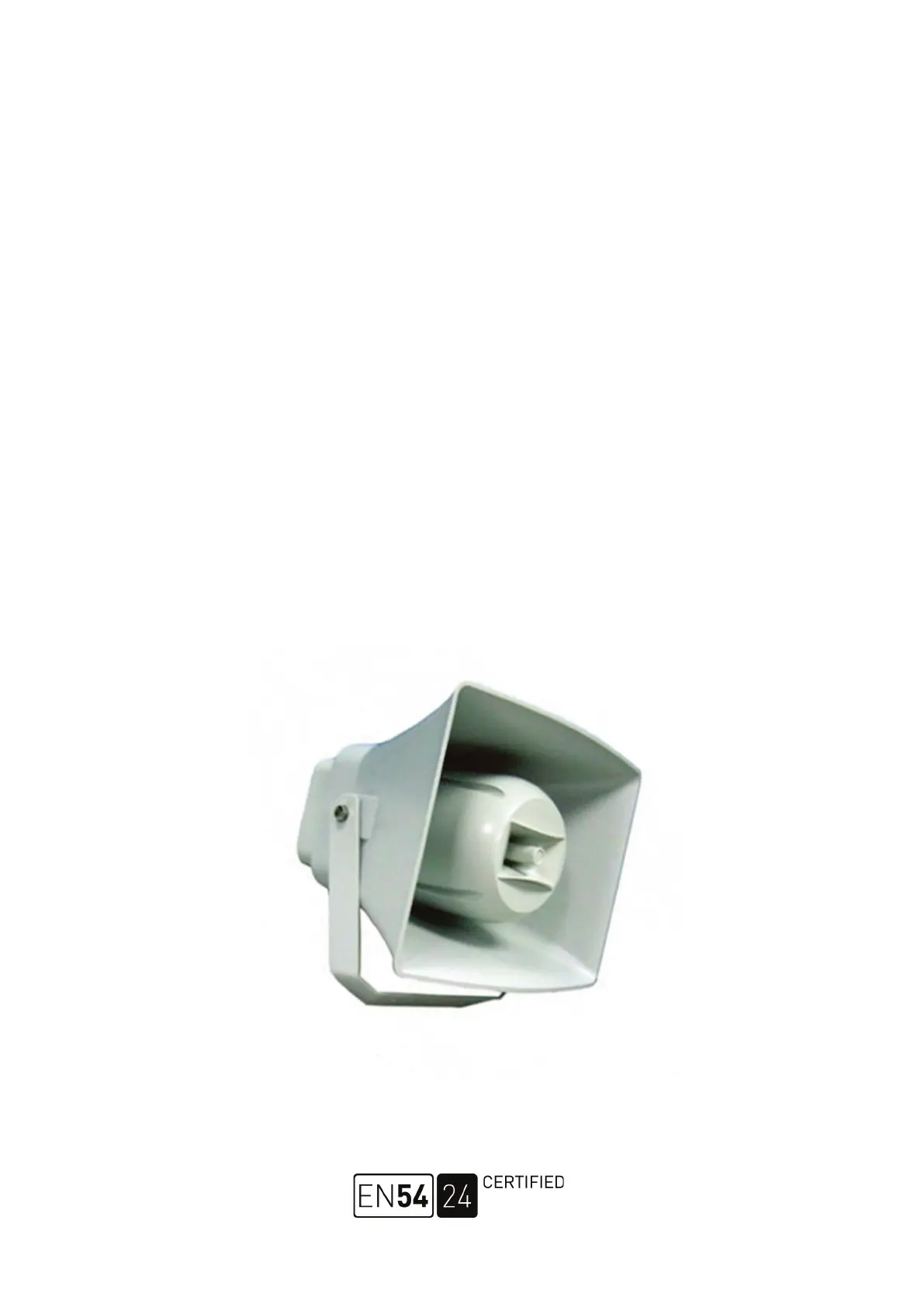

Sida 1/4
CS-6HT60BS
Horn Speaker
USER’S MANUAL
MANUALE D’USO
ENGLISH
ITALIANO
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT
This marking shown on the product or its literature, indicates
that it should not be disposed with other household wastes at
the end of its working life. To prevent possible harm to the
enviroment or human health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take
this item for environmentally safe recycling. Business users should
contact their supplier and check the terms an d conditions of the
purchase contract. This product should not be mixed with other
commercial wastes for disposal.
GENERAL SAFETY INSTRUCTIONS
Cotina Co. Ltd. (manufacturer) and Proel S.p.A. (importer) declines any
liability for damages to objects or persons caused by lack of
maintenance, improper use, installation not performed with safety
precautions and at the state of the art.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
EN54-24 CERTIFICATION
The product is in compliance with EN54-24:2008 standard.
CE CONFORMITY
The product is in compliance with CE Directive LVD 2014 / 35 / CE as
stated in EN 60065 standard.
DESCRIPTION
CS-6HT60BS is a high-efficiency horn loudspeakers that provides
excellent speech reproduction and sound distribution for a wide scope of
indoor and outdoor applications. It is equipped with one 165 mm (6.5”)
LF speaker and a 25.4 mm (1”) HF compression driver, able to provide an
excellent speech intelligibility with tight dispersion, together with a good
quality background music reproduction.
CS-6HT60BS includes a transformer to operate on 100V and 70V
constant voltage systems with selectable power. In compliance with EN
54-24:2008, it includes a ceramic terminal block and a thermal fuse and
it is, therefore, suitable for the use in voice alarm systems.
The ABS casing complies to UL 94V0 standard and provides IP66
protection, which makes this units suitable for both indoor and outdoor
application in malls, exhibition centres, railway and bus stations, etc.
FREQUENCY RESPONSE
TECHNICAL SPECIFICATION
System Type
Horn Speaker
LF Speaker
6.5" Waterproof PP Woofer
HF Speaker
1" Compression Driver
Rated Noise Power 100h @ 100V
60 W
Rated Noise Power 100h @ 70V
30 W
Power rating @ 100V
60 / 30 / 15 / 7.5 W
Power rating @ 70V
30 / 15 / 7.5 / 3.75 W
Impedance
167 / 333 / 666 / 1.33k Ω
Connector
Ceramic Terminal block
Power selection
On Transformer Terminals
Measure Environment
Free Field
Frequency Response (-10 dB)
200 - 20k Hz
Sensitivity at 1W (1 kHz, 1m / 4m)
102 / 100 dB
Sensitivity at 1W (Pink Noise 6dB
Crest Factor, 1m / 4m)
99 / 87 dB
Max SPL (Pink Noise 6dB Crest
Factor, 1m / 4m)
114 / 102 dB
Horizontal Coverage Angle at
500 / 1k / 2k / 4k Hz (-6dB)
105° / 50° / 80° / 80°
Vertical Coverage Angle at
500 / 1k / 2k / 4k Hz (-6dB)
140° / 70° / 90° / 150°
Cabinet
White (RAL 9016)
Material
ABS
Environmental Type
B
Protection Degree
IP66
Operating Temperature
-25 ÷ +55 °C (-13 ÷ +131 °F)
Relative humidity
<95%
Dimensions (mm)
418 x 332 x 391 (W x H x D)
Mounting
on wall using supplied bracket
Weight
7.4 kg (16.3 lb)
Standard Compliance
EN54-24:2008
Certification
1488-CPR-0315/W
INSTALLATION INSTRUCTIONS
[1] Mark on the ceiling or wall the three fixing points (A).
[2] Separate the bracket from the horn by unscrewing the bolts (B)
and secure it to the ceiling or wall. Note: choose an appropriate
fastening system for the wall type (no fastening system is provided
with the product). The fixing holes can accept 8-10mm screws or
bolts (C).
[3] Remove the top cover of the connection box (D) and insert the
speaker line cables into the PG cable glands (E). We suggest to use
a proper speaker cable with two insulated wires in a single jacket,
with diameter between 6mm and 8mm. If not used, close the last
cable gland with an unconnected piece of cable.
[4] On the transformer choose the right power to be sent to the
speaker (F). The printed power values are referred to a 100V line,
if you connect a 70V line you must consider half the power (see
technical specifications).
[5] Connect the speaker line wires to the ceramic terminal (G), taking
care to follow the +/- polarity.
[6] Close the top cover of the connection box (D) and tighten the PG
cable glands.
[7] Fix the horn loudspeaker to the bracket and aim it to the listening
area to be covered, then tighten the bolts (B).
