Congratulations on purchasing QFX Electric Mountain Bike. The QFX

Electric Mountain Bike is stylish and reliable, and with a long range of 20-25 miles

per charge it can take you anywhere you want to go. Use it for your daily commute

and still have enough power left for those fun leisure rides. Charging only takes 4 to 5

hours for a full recharge, so you’re ready to go in no time. With front and back

disc breaks, and an LED Display loaded with features, you know you’ll be safe riding

at all times of the day. Please cycle safe, follow your local laws, and take it for a

ride! Before taking the Electric Mountain Bike for a ride, please get used to its

speed and turning radius to avoid any injury.

LED 3 GEAR DISPLAY

PEDAL ASSIST/PURE ELECTRIC

SHIMANO 6 SPEED GEAR

BLACK PHONE HOLDER

RANGE: UP TO 25 MILES PER CHARGE

WEIGHT LIMIT: 330LBS

BRAKING SYSTEM: FRONT + REAR DISC

BRAKE(BRAKE FOR EACH)

MOTOR: 250 WATT BRUSHLESS ELECTRIC

MOTOR

CHARGE TIME: 4-5 HOURS FULLY CHARGED

BATTERY: LITHIUM-ION 36V 8AH

FRONT AND REAR DISC BRAKES

SPEED LIMIT:15.3MPH

EASY GRIP HANDLEBARS

POWER-OFF PROTECTION

BRAKE LEVERS WITH MOTOR CUT OFF

SPECIFICATIONS

1. FRAME

2. SEAT POST

3. SADDLE

4. VERTICAL HANDLE STEM

5. BATTERY

6. LCD DISPLAY

7. BRAKE LEVER

8. SUSPENSION FRONT FORK

9. DISC BRAKE

10. CRANK

11. PEDAL

12.PHONE HOLDER

13. MOTOR

14. REAR DERAILLEUR

15. RIM AND TIRE

16. REFLECTOR

17. REAR CARRIER

NOTES

1.Before riding, please read the manual carefully.

Please check whether the bike in good condition to ensure the safety of you riding.

2. Please abide by the municipal traﬃc regulations. Please slowdown in inclement

weather. In order to ensure safety, make note of increased braking distance in inclement weather.

3.This bike works in rain, snow, don't submerge the bike in water. If water ood the rear

wheel motor, will cause the vehicle internal wiring short circuit and damage to the electrical system.

4. Don’t use wet hands to touch the battery metal contact at the same time.

BATTERY NOTES

Charge your battery only with the supplied charger. Do not use the charger of any other manufacturer, not even when the connector of the charger matches your

rechargeable battery. The rechargeable battery can heat up, catch re or even explode!

We recommend that you charge your battery during the day and only in dry rooms which have a smoke or a re detector; but not in your bedroom.

Keep the rechargeable battery and the charger away from moisture and water during the charging process to exclude any risk of electric shocks and short circuits.

Keep the rechargeable battery and the charger out of the reach of children!

Do not leave either the rechargeable battery or the charger in the sun while charging!

Do not use a rechargeable battery or a charger that is defective. If you are in doubt or if you have any questions, then contact your bicycle dealer.

Do not charge any other electrical devices with the supplied charger.

The drive is not approved for steam cleaning, high-pressure cleaning or cleaning with a water hose. If any water gets into the electrical system or the drive it can

destroy the units. The individual drive components can be cleaned with a soft rag and neutral detergents. You may use a moist rag, but not excessive water. Keep

the rechargeable battery dry and do not submerge it! Risk of explosion.

Make sure not to discharge your rechargeable battery completely (also referred to as a deep discharge). Deep discharge will aﬀect the rechargeable battery perma-

nently. A deep-discharged battery can only be recharged in exceptional cases and with special chargers. Contact your bicycle dealer.

If the rechargeable battery or the charger (or parts of it) must be replaced, only use original spare parts. Contact your bicycle dealer.

Charge the battery at an ambient temperature of approx. 20 degrees Celsius (68 degrees Fahrenheit). Recharging the battery at temperature below 0 degrees Cel-

sius (32 Fahrenheit) will take much longer. For that reason avoid recharging the battery at temperatures below 0 degrees Celsius (32 Fahrenheit). Therefore, after a

ride in cold weather, for example, wait until the battery has warmed up before starting the charging.

Do not dispose of your rechargeable battery in the normal household trash! It must be disposed of according to battery disposal regulations. Therefore, retailers

selling new recharge-able batteries must provide the collection of old rechargeable batteries and appropriate disposal. If you are in doubt or if you have any ques-

tions, then contact your bicycle dealer.

Lithium batteries have no memory eﬀect; they can therefore be charged at any time without aﬀecting battery life.

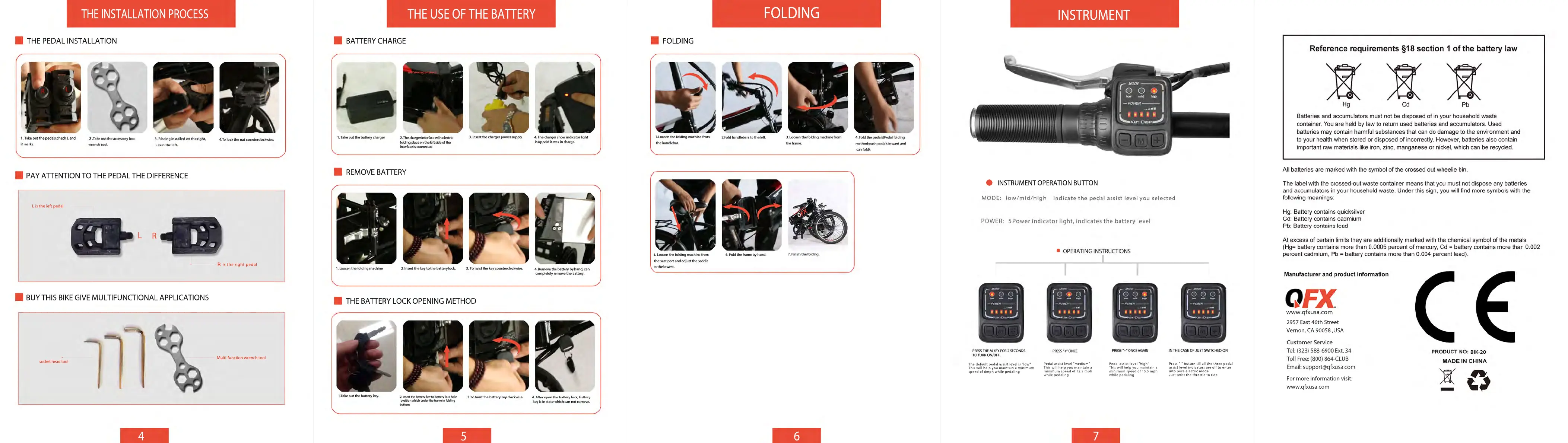

THE INSTALLATION PROCESS

BEFORE THE INSTALLATION

INSTALL THE HANDLEBAR

THE SADDLE ADJUSTMENT

３

THE INSTALLATION PROCESS

THE PEDAL INSTALLATION

PAY ATTENTION TO THE PEDAL THE DIFFERENCE

BUY THIS BIKE GIVE MULTIFUNCTIONAL APPLICATIONS

L is the left pedal

Ｒ is the right pedal

socket head tool

Multi-function wrench tool

THE USE OF THE BATTERY

BATTERY CHARGE

REMOVE BATTERY

5 6

THE BATTERY LOCK OPENING METHOD

FOLDING

INSTRUMENT

The default pedal assist level is "low"

This will help you maintain a minimum

speed of 6mph while pedaling

Pedal assist level "medium"

This will help you maintain a

minimum speed of 12.5 mph

while pedaling

Pedal assist level "high"

This will help you maintain a

minimum speed of 15.5 mph

while pedaling

Press “-" button till all the three pedal

assist levelindicators are oﬀ to enter

into pure electric mode:

Just twist the throttle to ride.

INSTRUMENT OPERATION BUTTON

www.qfxusa.com

2957 East 46th Street

Vernon, CA 90058 ,USA

For more information visit:

www.qfxusa.com

Produktspecifikationer

Varumärke:	QFX
Kategori:	Elcykel
Modell:	BIK-20
Inbyggd display:	Ja
Bredd:	1447.8 mm
Djup:	1066.8 mm
Höjd:	250.19 mm
Förpackningens bredd:	1339.85 mm
Motoreffekt:	250 W
Batterikapacitet:	8 Ah
Hopfällbar:	Ja
Vikt (inklusive batteri):	21953.87 g
Batteriteknik:	Litium-Ion (Li-Ion)
Bromssystem:	Skiva
Bagagehylla:	Bak
Produktens färg:	Vit
Skärmtyp:	LED
Låddjup:	629.92 mm
Vikt inkl. förpackning:	28122.7 g
Lamptyp:	LED
Batteriladdare ingår:	Ja
Batterispänning:	36 V
Ram material:	Gjuten aluminium
Inbyggd ljus:	Ja
Maxhastighet (e-bike):	24 km/t
Driftsträcka (max):	49.88 km
Hjulstorlek:	20 "
Cykel fjädring:	Framgaffel
Sträcka per laddning (vid pedalanvändning):	49.88 km
Distans per batteriladdning (e-bikeläge):	24.94 km
