www.avsl.com 154.101UK User Manual
Introduction

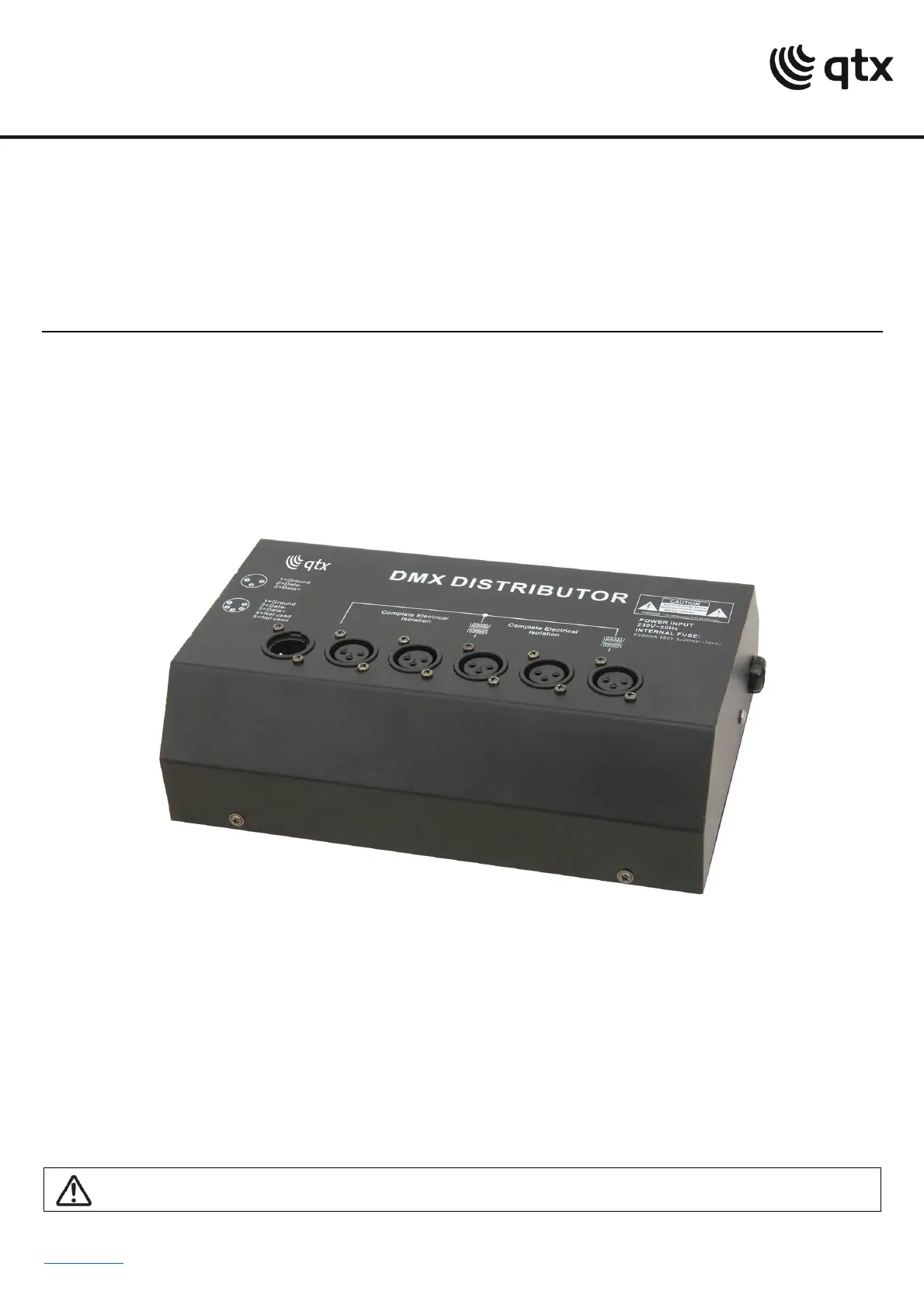

4 way DMX Booster/distributor with one input, loop through and four electrically opto-isolated outputs.
Both DMX input and DMX output are provided with 3 pin XLR connectors, making it universally compatible with most
lighting systems. This item is ideally used for splitting the signal over a large area or to isolating individual fixtures
making it quick and easy to diagnose and fix faulty fixtures without the whole system failing.
• DMX Loop out or DMX terminated (supplied)
• 4 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
• Powered by mains to boost signal over a long distance.

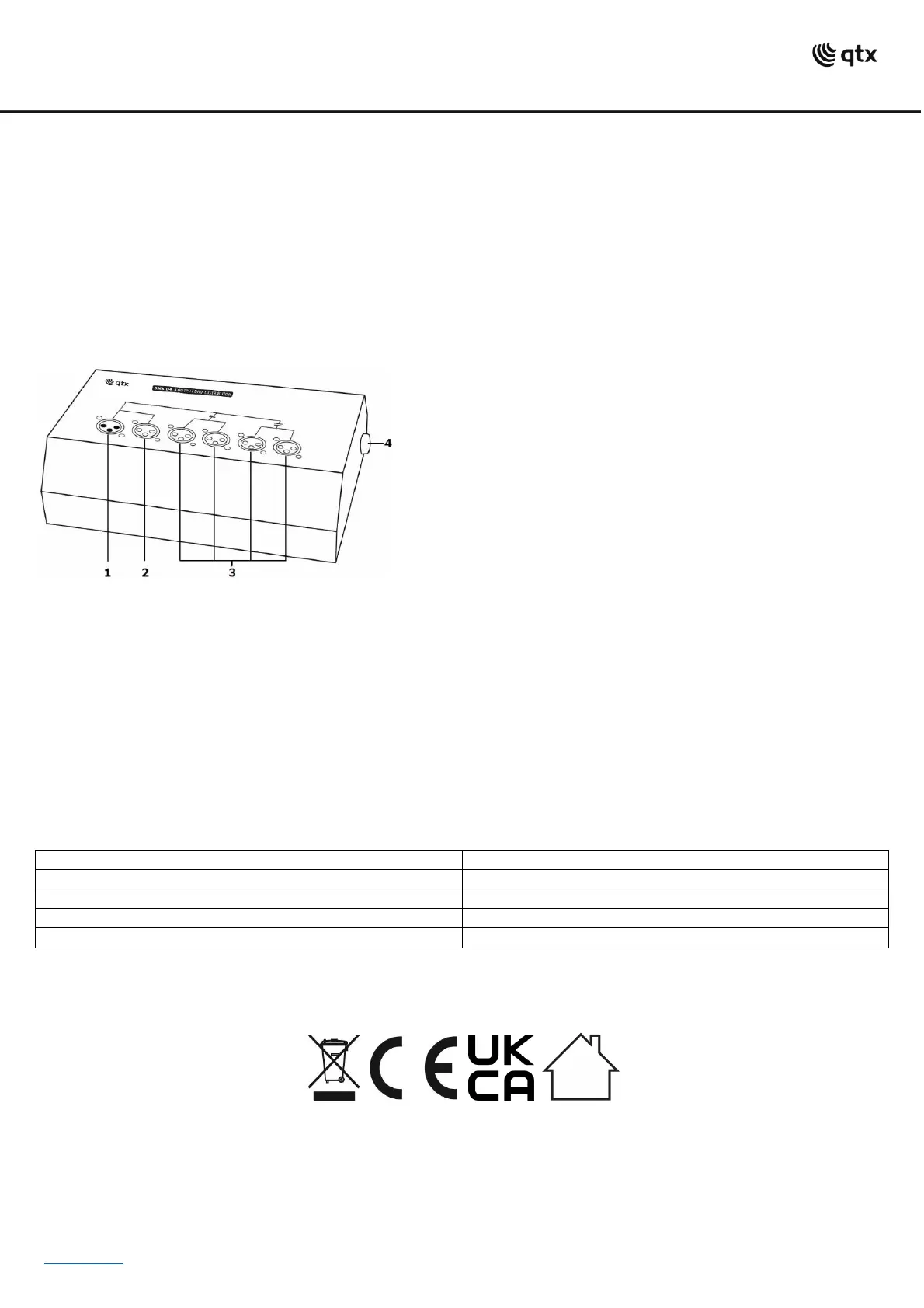

Layout
1. DMX Input
2. DMX Loop out
3. DMX Output
4. IEC Power input
WARNING: BEFORE USE
This item is for professional use only. Please take note of the following instructions before using this device.
• This unit must be earthed.
• Do not turn on the power until all connections are securely made.
• If you are not using the DMX LOOP out socket ensure you use the DMX XLR terminator supplied.
• Always disconnect from the mains before replacing the fuse
• There are no user serviceable parts inside
Specifications
Power supply
230Vac, 50Hz
DMX input
1 x XLRM
DMX output
4 x XLRF (+ loop output)
Dimensions
248 x 165 x 70mm
Weight
1.5kg
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at
the end of its useful life. The goods must be disposed of according to your local council guidelines
Errors and omissions excepted.
Copyright© 2021 AVSL Group Ltd, Unit 2 Bridgewater Park, AVSL (Europe) Ltd, Unit 3D North Point House,
Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland.
