www.avsl.com 154.100UK User Manual
MDMX-24
24 Channel Mini DMX Controller
Item ref: 154.100UK
User Manual
Easy to set up and use this 24-channel mini DMX controller is ideal for less experienced users or smaller
functions and events. 2 bright and clear LED displays show both the channel number and value at the
same time making the accurate control of fixtures a breeze. 6 channel sliders combine with a 4-way page
selector and LED panel for simple range selection and a Blackout button is also included for fast shut off
of fixtures when required.
In the box:
Your MDMX-24 should arrive with you in a single carton in good condition. The carton should contain
1 x main unit, 1 x UK power adaptor and 1 x user guide.

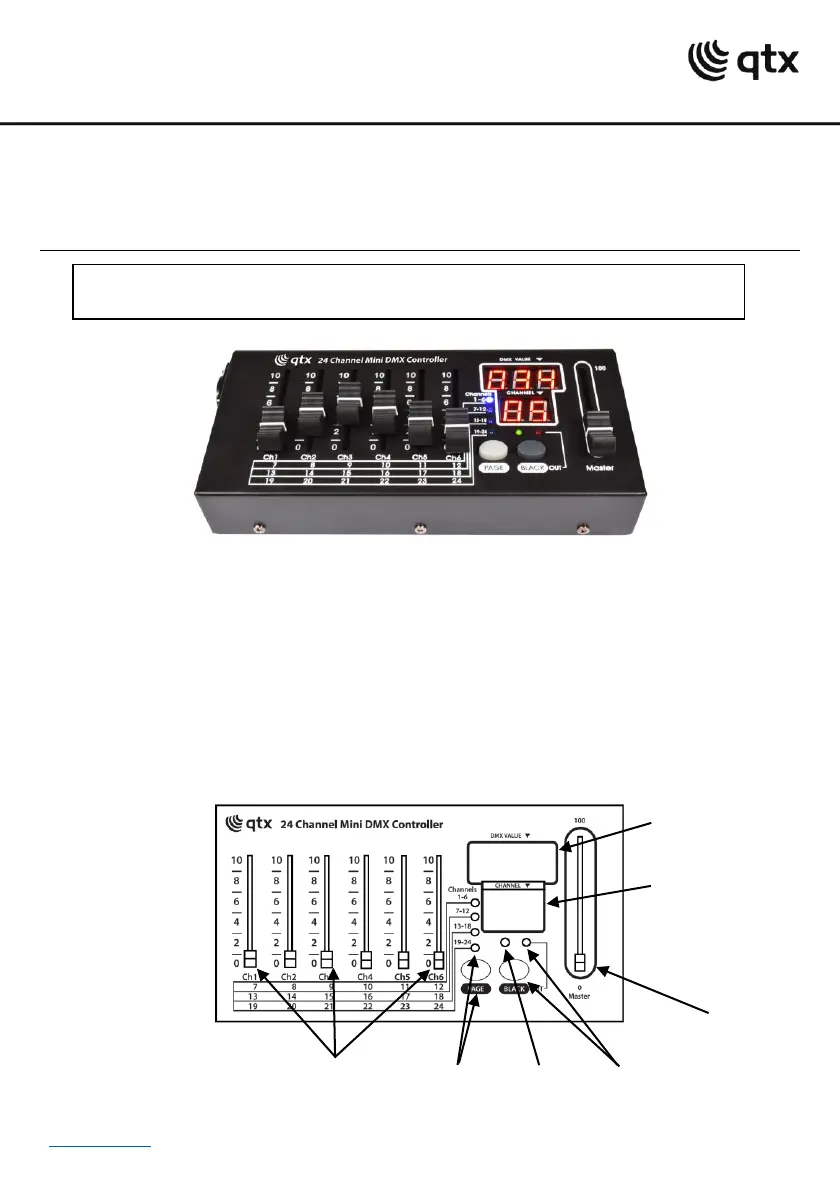

Controls Overview:
Please read through this manual thoroughly before use, any damage
caused by misuse of product will not be covered by warranty.
Channel Sliders
Page
button/LED
Blackout
button/LED
Master Slider
DMX value LED
Channel value LED
Power LED
www.avsl.com 154.100UK User Manual
Operation:
1. Connect the power supply to the socket on the side of the unit and plug into a mains socket.
2. Connect a DMX lead to the socket on the side of the unit and a compatible DMX-512 device.
3. Switch on the controller using the red power switch on the side of the unit.
4. The controller will perform a self-test and the green Power LED will light up.
5. The startup status will be channels 1-6 which is indicated by the blue LED next to the relevant indicator.
6. Press the Page button to switch to pages 7-12, 13-18 or 19-24, again the blue LED indicator will inform
you of the current page selection.
7. Use the channel sliders to adjust the DMX parameter value of the relevant channel. The DMX value LED
will indicate the current DMX parameter value at any time.
8. The Channel LED will display the current slider being used (stays on last adjusted channel).
9. Use the Master slider to control the DMX parameter values of all channels (i.e set to zero all channels
are closed).
10. Use the Blackout button to instantly switch all DMX parameters to zero.
Specifications:
DMX channels
24
Power supply
12Vdc, 500mA
Dimensions
210 x 100 x 50mm
Weight
762g
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at
the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2022 AVSL Group Ltd, Unit 2 Bridgewater Park, AVSL (Europe) Ltd, Unit 3D North Point House,
Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland.
Please do not open cover, contains high voltage. This product is
not serviceable or repairable by the end user. Please refer to
qualified personnel for service and repair.
