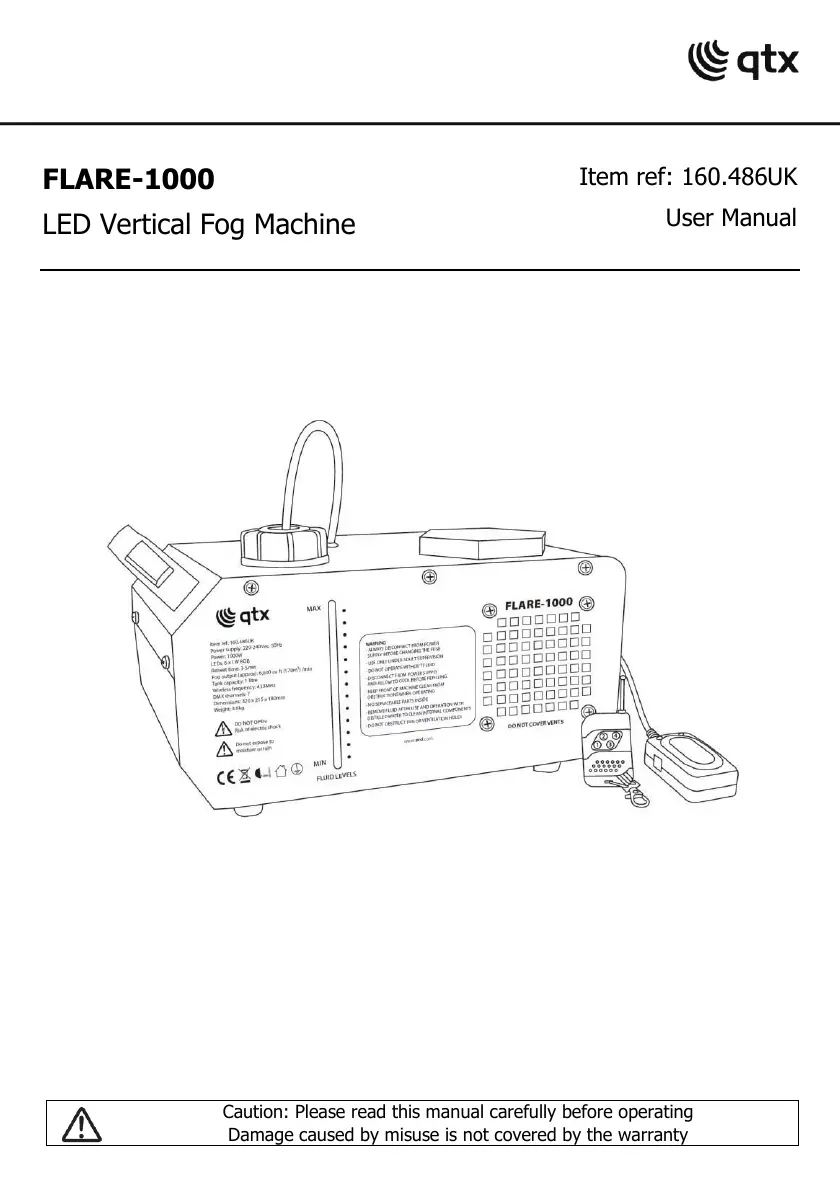

FLARE-1000
LED Vertical Fog Machine
Item ref: 160.486UK
User Manual
Version 1.0
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
FLARE-1000
LED Vertical Fog Machine
Item ref: 160.486UK
User Manual
Version 1.0
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Powered by TCPDF (www.tcpdf.org)
160.486UK User Manual

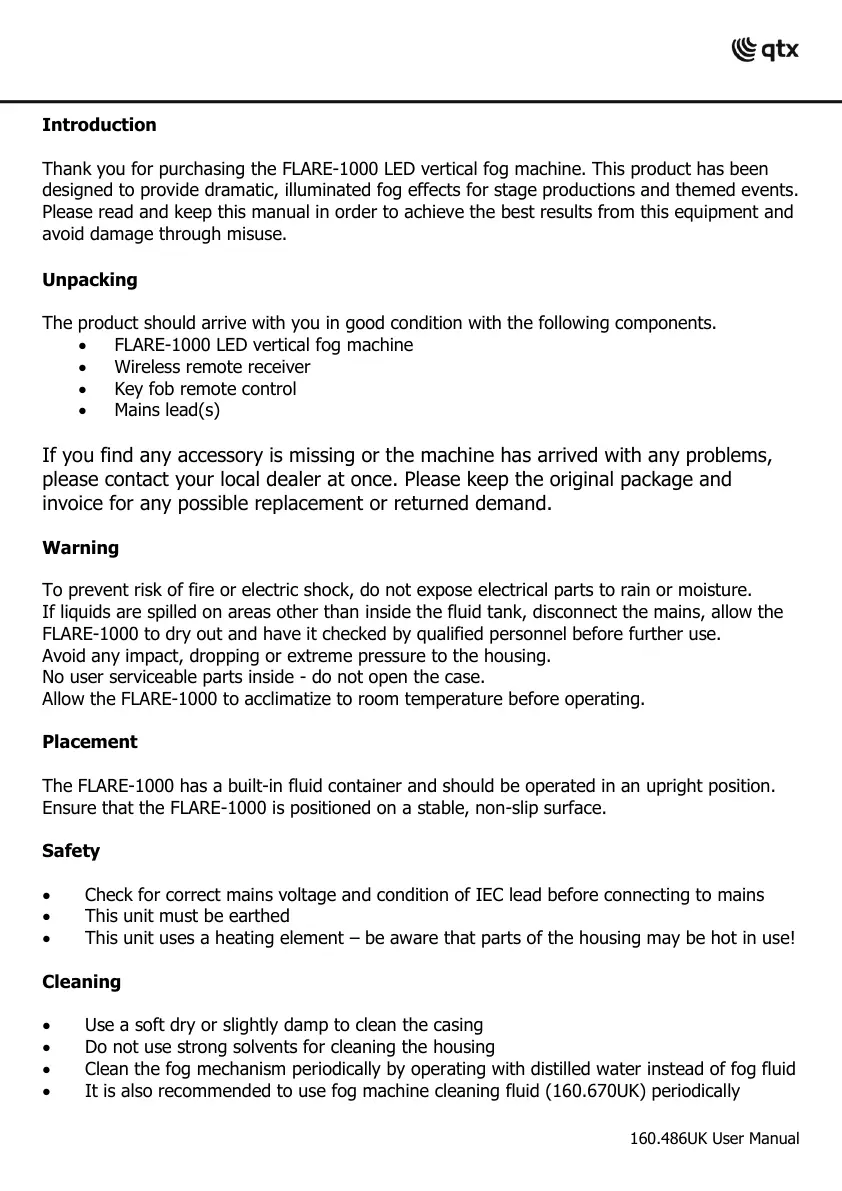

Introduction
Thank you for purchasing the FLARE-1000 LED vertical fog machine. This product has been
designed to provide dramatic, illuminated fog effects for stage productions and themed events.
Please read and keep this manual in order to achieve the best results from this equipment and
avoid damage through misuse.
Unpacking
The product should arrive with you in good condition with the following components.
• FLARE-1000 LED vertical fog machine
• Wireless remote receiver
• Key fob remote control
• Mains lead(s)
If you find any accessory is missing or the machine has arrived with any problems,
please contact your local dealer at once. Please keep the original package and
invoice for any possible replacement or returned demand.
Warning
To prevent risk of fire or electric shock, do not expose electrical parts to rain or moisture.
If liquids are spilled on areas other than inside the fluid tank, disconnect the mains, allow the
FLARE-1000 to dry out and have it checked by qualified personnel before further use.
Avoid any impact, dropping or extreme pressure to the housing.
No user serviceable parts inside - do not open the case.
Allow the FLARE-1000 to acclimatize to room temperature before operating.
Placement
The FLARE-1000 has a built-in fluid container and should be operated in an upright position.
Ensure that the FLARE-1000 is positioned on a stable, non-slip surface.
Safety
• Check for correct mains voltage and condition of IEC lead before connecting to mains
• This unit must be earthed
• This unit uses a heating element – be aware that parts of the housing may be hot in use!
Cleaning
• Use a soft dry or slightly damp to clean the casing
• Do not use strong solvents for cleaning the housing
• Clean the fog mechanism periodically by operating with distilled water instead of fog fluid
• It is also recommended to use fog machine cleaning fluid (160.670UK) periodically
160.486UK User Manual

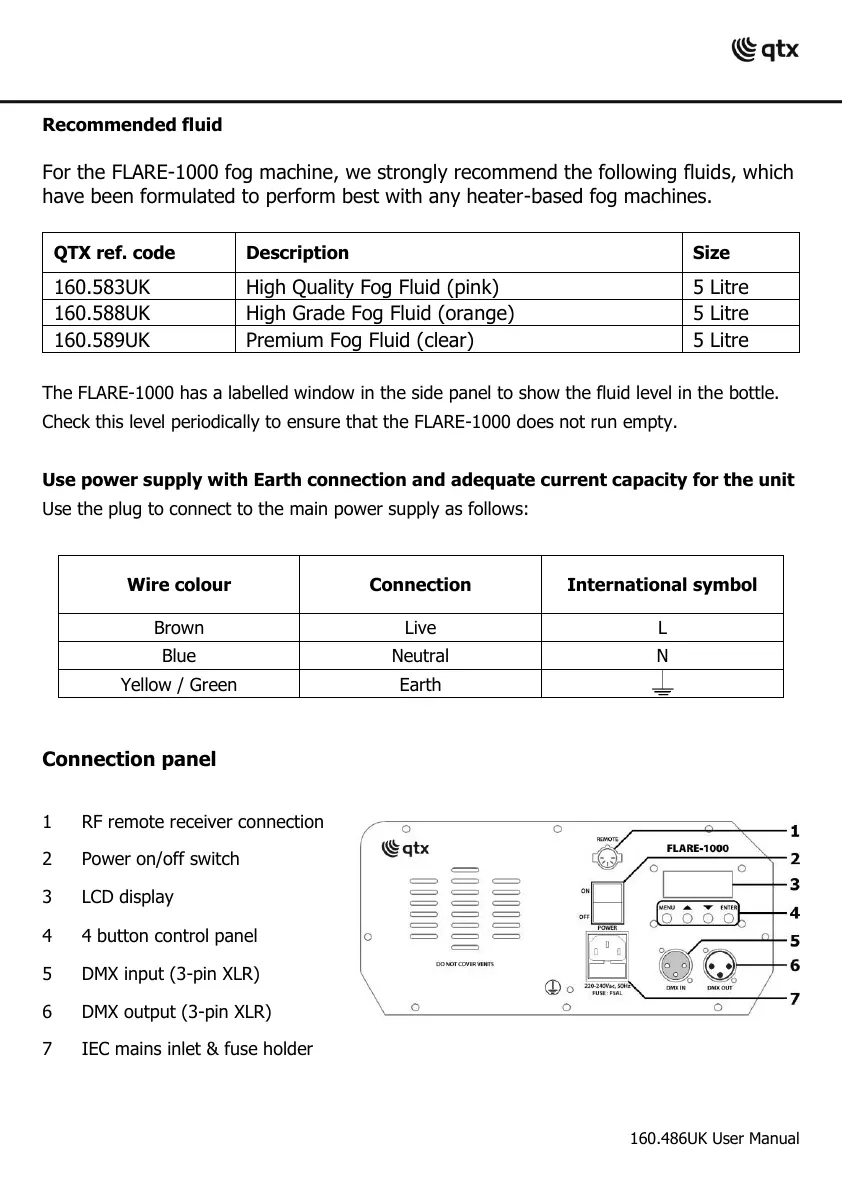

Recommended fluid
For the FLARE-1000 fog machine, we strongly recommend the following fluids, which
have been formulated to perform best with any heater-based fog machines.
QTX ref. code
Description
Size
160.583UK
High Quality Fog Fluid (pink)
5 Litre
160.588UK
High Grade Fog Fluid (orange)
5 Litre
160.589UK
Premium Fog Fluid (clear)
5 Litre
The FLARE-1000 has a labelled window in the side panel to show the fluid level in the bottle.
Check this level periodically to ensure that the FLARE-1000 does not run empty.
Use power supply with Earth connection and adequate current capacity for the unit
Use the plug to connect to the main power supply as follows:
Wire colour
Connection
International symbol
Brown
Live
L
Blue
Neutral
N
Yellow / Green
Earth
Connection panel
1
RF remote receiver connection
2
Power on/off switch
3
LCD display
4
4 button control panel
5
DMX input (3-pin XLR)
6
DMX output (3-pin XLR)
7
IEC mains inlet & fuse holder
