Sida 1/6
www.radialeng.com
Radial Engineering Ltd.
1845 Kingsway Ave, Port Coquitlam BC V3C 1S9
Tel: 604-942-1001 • Fax: 604-942-1010
Email: info@radialeng.com
J•ISO | Pro-ISO
Users Guide
True to the Music
Radial J•ISO and ProISO users guide V1.2 - Part #: R870 1220 10 / 07-2023
Subject to change without notice
+4dB Balanced to -10dB Unbalanced
Stereo Signal Conversion Tool
®
3

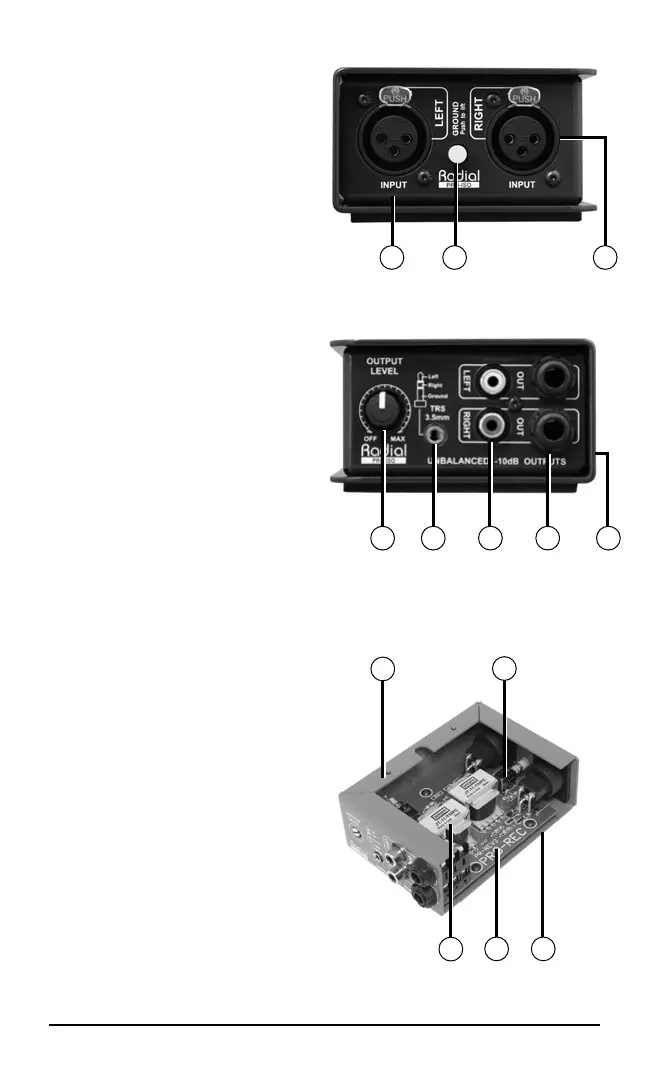

INPUT PANEL
1. XLR INPUT for balanced,
low-impedance, +4dB line-level
signals.
2. Ground lift disconnects the
signal ground to eliminate buzz
and hum caused by ground loops.
3. Secondary Ground Lift used
for instances where two separate
devices are connected to the
outputs.
OUTPUT PANEL
4. Output Level provides signal
attenuation to prevent clipping.
5. 3.5mm TRS output connection
for stereo -10dB devices such as
portable recording units.
6. RCA Phono left and right stereo
outputs for -10dB consumer audio
electronics.
7. ¼" TS left and right stereo
outputs for high-impedance audio
electronics.
CONSTRUCTION
8. Bookend design 14 gauge steel
outer shell creates protective zone
around connectors and switches.
9. I-beam enclosure eliminates
stress that could torque the PC
board and cause solder joint failure.
10. PCB mounted switches are
high-cycle rated for long life.
11. Jensen (J•ISO) and Radial
(Pro-ISO) transformers offer
outstanding audio performance.
12. Military-grade double-sided
PCB with plated through-holes is
bolted to welded steel standos.
13. Full-bottom no-slip pad This
provides electrical isolation and
plenty of "stay-put" friction.
1
J•ISO / Pro-ISO User Guide
Radial Engineering Ltd.
11
12 13
9
10
8
76
54
2
