True to the Music
www.radialeng.com

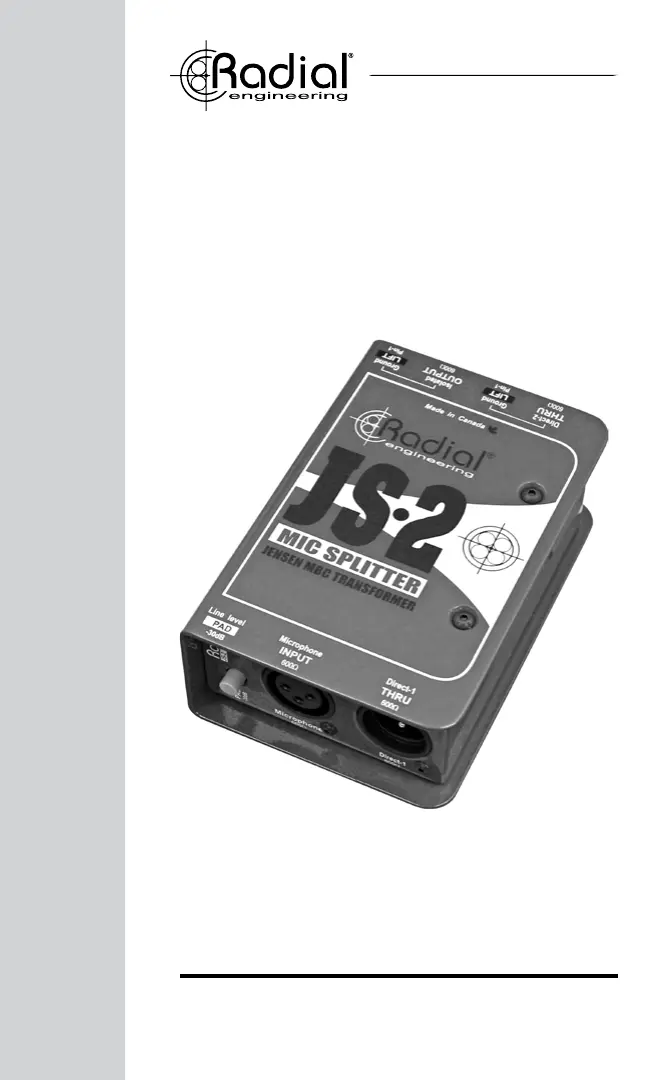

JS•2
2-Way Microphone Splitter
Users Guide
Radial Engineering
1845 Kingsway Ave., Port Coquitlam, BC V3C 0H3, Canada
Tel: 604-942-1001 • Fax: 604-942-1010
email: info@radialeng.com
Radial JS2 User Guide - Part #: R870 1055 00 / 02-2024
Copyright 2006 Radial Engineering Ltd. All rights reserved.
Specications and appearance subject to change without notice.
JS•2 User Guide
Radial Engineering
True to the Music
INPUT PANEL
1. -30dB PAD Allows line-level sources
to connect to the JS•2’s input.
2. Mic input For low impedance
microphone level signals.
3. Direct-1 thru balanced mic-level
direct output will pass phantom power
to microphone.
4. Bookend design 14 gauge steel
outer shell creates protective zone
around connectors and switches.
5. Full-bottom no-slip pad This
provides electrical isolation and plenty
of "stay-put" friction to keep the JS•2
in one place.
OUTPUT PANEL
6. Direct-2 thru Duplicate balanced
mic-level direct output.
7. Ground lift (Direct-2 thru) Lifts the
ground pin-1 on the direct-2 thru XLR
connector.
8. Isolated output balanced mic-level
transformer-isolated.
9. Ground lift (Isolated output) Lifts
the ground pin-1 on the isolated output
XLR connector.
CONSTRUCTION
10. Steel I-beam enclosure eliminates
stress that could torque the PC board
and cause solder joint failure.
11. Military-grade double-sided PCB
with plated through-holes is bolted to
welded steel standos.
12. Jensen transformer offers
outstanding audio performance.
13. Sturdy PC mounted switches are
high-cycle rated for long life.
96 7 8
1 52 3 4
10 11 12
13
