PACKAGE CONTENTS
• 2-outlet in-wall surge protector
• White decora-style wall plate
• Screws: 2 long and 2 short
• Quick Setup Guide
FEATURES
• Replaces a standard duplex outlet
• Status LED lets you know your devices are
protected
• Tamper-resistant outlets for added safety
• Provides two standard 125V power outlets
• 1,080 joules of surge protection
• Works in nearly all installations
• Compatible with your existing decora wall plate
We recommend that you use a professional electrician to
install the in-wall surge protector.
INSTALLING THE SURGE PROTECTOR
Warning: DISCONNECT POWER. Failure to do so can
result in severe injury or death.
1 Make sure that you disconnect power to the circuit
by removing the fuse from the circuit or turning
OFF the circuit breaker.
2 Remove the wall plate and mounting screws
that cover the old outlet.
3 Carefully remove the existing outlet from the
wall box.
4 Disconnect the wiring from the old outlet.
5 Connect the wires to the surge protector:
• Black lead attaches to the hot wire
• White lead attaches to the neutral wire
• Green lead attaches to the ground wire
You can attach the wires by:
A Inserting straight wires into the holes.
OR
A Wrapping the wires 3/4 of the way around
the terminal screws, making sure that the
wires do not overlap.
B Tighten every screw and make sure that no
bare copper wire is exposed.
SAFETY
Warnings:
• RISK OF ELECTRIC SHOCK — Use only in dry locations
and only indoors.
• All cables should be routed away from the outlet
openings.
• DO NOT use with any aquarium equipment.
• DO NOT install in an outlet that is not grounded.
Notes to the installer:
• This device must be installed in accordance with
National and Local electrical codes.
• To prevent severe shock or electrocution, always turn
power OFF at the service panel before working with
wiring.
• This device should be used with copper or copper-clad
wire. DO NOT use with aluminum wire.
• DO NOT plug this device into a shallow wall box. The
wall box must be deep enough to house the surge
protector. If the box is too shallow, the surge protector.
will not t securely into the wall.
Before using your new product, please read these instructions to prevent any damage.
PROTECTED/
PROTECTED/
FAULT
FAULT
TR
TR
AC outlets
(2)
Indicator
LED
Ground
(green)
Neutral
(white)
Hot
(black)
Front
QUICK SETUP GUIDE
RF-HTS120W22 | 2-outlet In-wall Surge Protector
Back
RF-HTS120W22_22-0836 _QSG_V1_EN_Final.ai 1 10/5/2022 9:23:07 AM
V1 ENGLISH 22-0836

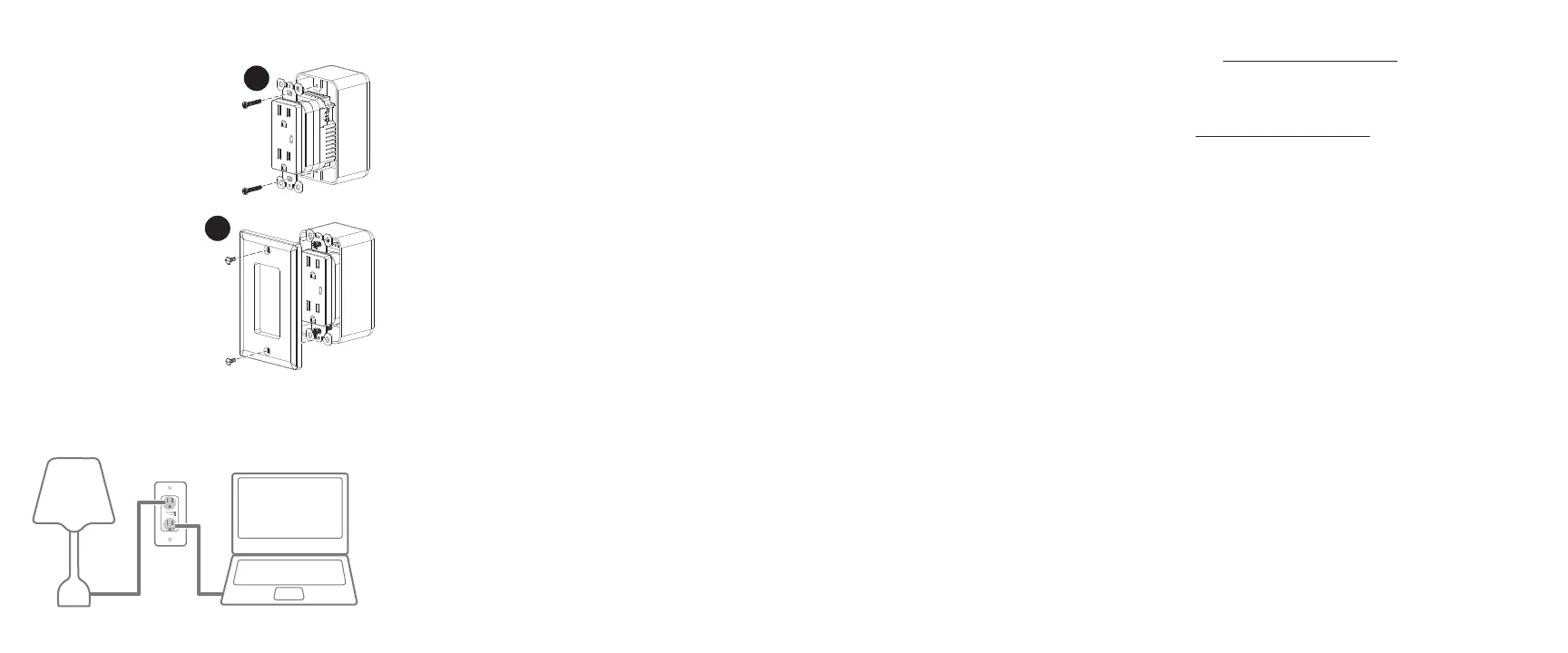

6 Carefully insert the surge
protector into the wall box.
7 Secure the surge protector
to the wall box with the two
long screws (provided).
8 Secure the wall plate to the
surge protector with the two
short screws (provided).
9 Restore power by
replacing the fuse or
turning on the circuit
breaker. The surge
protector is ready
to use.
USING THE SURGE PROTECTOR
To power electrical devices (like lamps or laptop), plug
them into the electrical outlets.
LED INDICATOR
• Blue: surge protected
• Red: wiring fault
• LED o: not surge protected
Note: Only applicable if the outlet is receiving power.
The LED is not lit when power is shut o to outlet.
SPECIFICATIONS
Dimensions (H × W × D)
• With plate:
4.7 × 3 × 1.9 in. (120 × 76 × 47.6 mm)
• Without plate:
4.2 × 1.7 × 1.9 in (106 × 44 × 47.6 mm)
Electrical
• Receptacle rating: 15 Amp, 125VAC
• Line voltage: 125V A C @ 60Hz
• Surge protection: 3 lines (L-N / L-G / N-G)
• Clamping voltage: L-N / L-G / N-G = 500 V
• Maximum surge current: 45,000 amps
• Maximum energy dissipation: 1,080 joules
• Wire terminals: #14-#12 AWG
UL-1449 certied
LEGAL NOTICES
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
ICES-003
This Class B digital apparatus complies with Canadian ICES-003.
ONE-YEAR LIMITED WARRANTY
Visit www.rocketfishproducts.com for details.
CONTACT ROCKETFISH:
For customer service please call 1-800-620-2790
www.rocketfishproducts.com
ROCKETFISH is a trademark of Best Buy and its aliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2022 Best Buy. All rights reserved.
7
8
RF-HTS120W22_22-0836 _QSG_V1_EN_Final.ai 2 10/5/2022 9:23:07 AM
