Sida 1/4
MX34 LiveMix
OWNERS MANUAL
ROLLS CORPORATION
SALT LAKE CITY, UTAH
11/04
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free
from defects in materials and workmanship under normal installation, use and
service for a period of one (1) year from the date of purchase as shown on the
purchaserís receipt.
The obligation of Rolls Corporation under this warranty shall be limited
to repair or replacement (at our option), during the warranty period of any part
which proves defective in material or workmanship under normal installation,
use and service, provided the product is returned to Rolls Corporation, TRANS-
PORTATION CHARGES PREPAID. Products returned to us or to an authorized
Service Center must be accompanied by a copy of the purchase receipt. In the
absence of such purchase receipt, the warranty period shall be one (1) year from
the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of
defacement, misuse, abuse, neglect, accident, destruction or alteration of the
serial number, improper electrical voltages or currents, repair, alteration or
maintenance by any person or party other than our own service facility or an
authorized Service Center, or any use violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations
or liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILI-
TIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED IN DURATION TO THE ONE YEAR DURATION OF
THIS WRITTEN LIMITED WARRANTY. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to
you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCI-
DENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER.
Some states do not allow the exclusion or limitation of special, incidental or
consequential damages so the above limitation or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
INTRODUCTION
Thank you for purchasing the new MX34 LiveMix - two channel microphone mixer.
Although having many uses, this little mixer was originally designed with the video
camera operator in mind. Itís handy shoulder strap, easy-access microphone Level and
Pan controls, and smart Input/Output jack placement make the MX34 ideal for the live
recording enthusiast. Two 9 volt alkaline batteries ensure adequate signal strength as well
as phantom power for your favorite condenser microphone.
Please review this manual carefully as it contains important information regarding the
proper use of this product.
INSPECTION
1. Unpack and Inspect the MX34 package
Your MX34 was carefully packed at the factory in a protective carton. Nonetheless, be
sure to examine the unit and the carton for any signs of damage that may have occurred
during shipping. If obvious physical damage is noticed, contact the carrier immediately to
make a damage claim. We suggest saving the shipping carton and packing materials for
safely transporting the unit in the future.
2. Please visit our website at www.rolls.com, click on the Register Your Warranty Here
text and follow the instructions to register your MX34.
TABLE OF CONTENTS
INTRODUCTION 1
INSPECTION 1
TABLE OF CONTENTS 1
DESCRIPTION 2
Front Panel
Rear Panel
Battery Installation
Phantom Power
CONNECTION 3
A note on wiring a mono signal to the stereo AUX IN
OPERATION 4
SCHEMATIC 5
SPECIFICATIONS 6
WARRANTY BACK COVER
1
SPECIFICATIONS
Input Impedance: mic - 600 Ohms or greater XLR
aux - 47K stereo 3.5mm
Output Impedance: 50 Ohms
THD + Noise: .02%
S/N Ratio: 110 dB
Frequency Response: 20 Hz - 30 kHz (+0 / -1 dB)
Max Output Level: + 14 dB
Max Input Level: +20 dB
Max Gain: +70 dB
Batteries: 2 X 9V Alkaline
Current Draw: 30 mA
Phantom Power: +18 VDC
Input Connectors: 2 Female XLR, 1/8î (3.5mm)
DC Power Jack: (5.5 X 2.1 mm tip negative)
Output connectors: 3.5mm stereo main out
3.5mm Headphone
Size: 6.3îw x 3.7îd x 1.4î h
Weight: 1 lbs.
6
DESCRIPTION
FRONT PANEL
pan
pan pwr
MX34
0 10 L R L R
LEVEL
0 10
LEVEL
0 10
OUTPUT
LEVEL
L
IVE
M
IX
MIC 1 MIC 2 HEADPHONE
MIC1 and MIC2
LEVEL: Adjusts the amount of signal of the indicated Microphone channel.
PAN: Adjusts the relative level of signal from the channel to the Right/Left Output.
pwr: When lit, indicates that the MX34 is on. A dim light indicates low battery
voltage.
HEADPHONE
LEVEL: Adjusts the amount of signal from the Headphone Output.
OUTPUT: 1/8î (3.5mm) jack containing the Headphone Output signal.
REAR PANEL
PWR
12 VDC
STEREO
OUT
AUX
IN
+
-
CHANNEL
1
CHANNEL
2
INPUTS
INPUTS: 1 - 2: XLR balanced inputs for connection to any standard dynamic or con-
denser microphone. The input circuitry has a very wide input range and can accomodate
almost any (mic to line) level signal.
AUX IN: Tip-Ring-Sleeve stereo 1/8î (3.5mm) jack for connecting to another line-level
stereo signal source.
STEREO OUT: Tip-Ring-Sleeve stereo 1/8î (3.5mm) jack for connection to a camera or
other stereo input (Line-level only).
12 VDC jack: For connection to the Rolls PS27 12VDC power supply.
POWER: Button applies power to the MX34.
BATTERY INSTALLATION: To replace the 9 V
alkaline batteries, first carefully press in and up on
the door to release the battery compartment. It
then slides out and you can replace the battery.
Remember to replace both batteries at the same
time.
PHANTOM POWER: The Phantom Power jumpers
are set to the off position from the factory. To engage
the phantom power, first make sure the MX34 is
powered off, use a pair of needle-nose pliers or
tweezers and carefully pull out the jumper corre-
sponding to the channel you wish to power. Replace
the jumper - connecting the two pins labeled on.

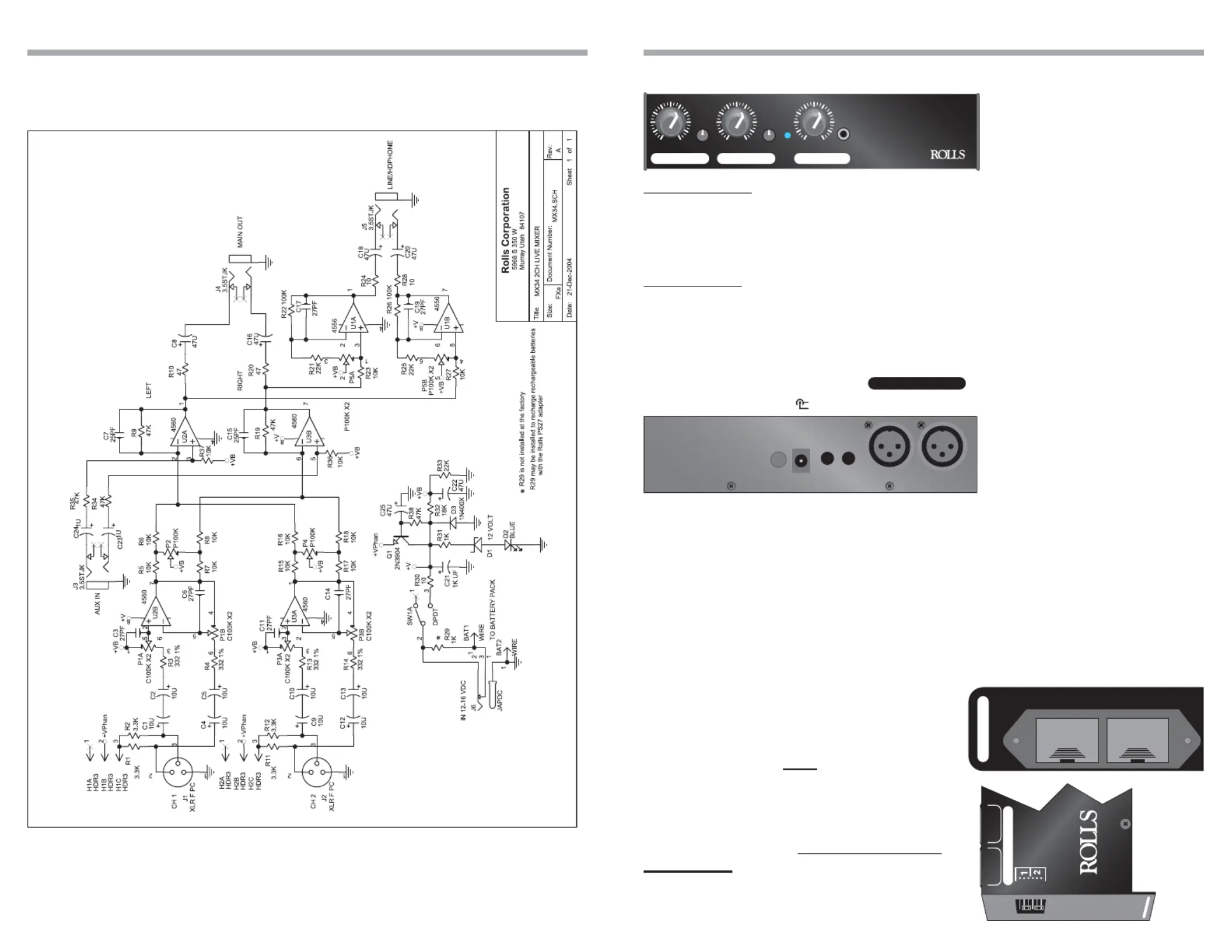

SCHEMATIC
PHANTOM
POWER
MADE IN USA
on
on
CHANNEL
1
CHANNEL
2
INPUTS
BATTERY
LIFT TO WITHDRAW
BATTERY
LIFT TO WITHDRAW
25
