MX122

MiniMix Pro Mixer

Quick Start Guide

ROLLS CORPORATION

SALT LAKE CITY, UTAH

8/19

SPECIFICATIONS

Input Impedance: Line: 10 K Ohms unbal.

Mic: 10 K Ohms bal.

Phantom Power Voltage: +15 VDC

Output Impedance: 50 Ohms bal

Max Input Level: +24 dBV line, -8 dBV microphone

Phase Shift: < 10 deg. 20 Hz - 20 kHz

Connectors: 8: 1/4” TS Inputs, 1: XLR Mic Input

3: 1/4” TRS, 1: 1/8” (3.5mm) Outputs

Max Gain: 26 dB Line

26 dB Aux

80 dB Mic

Mic CMRR: 95 dB

S/N Ratio: >90 dB

THD: < .004%

IMD (SMPTE): < .004%

Self Noise: < - 82 dB

Power: 9-15 VDC

Size: 8.4” x 1.7” x 5”

(21.3 x 4.3 x 13 cm)

Weight: 2.5 lbs (1.14 kg)

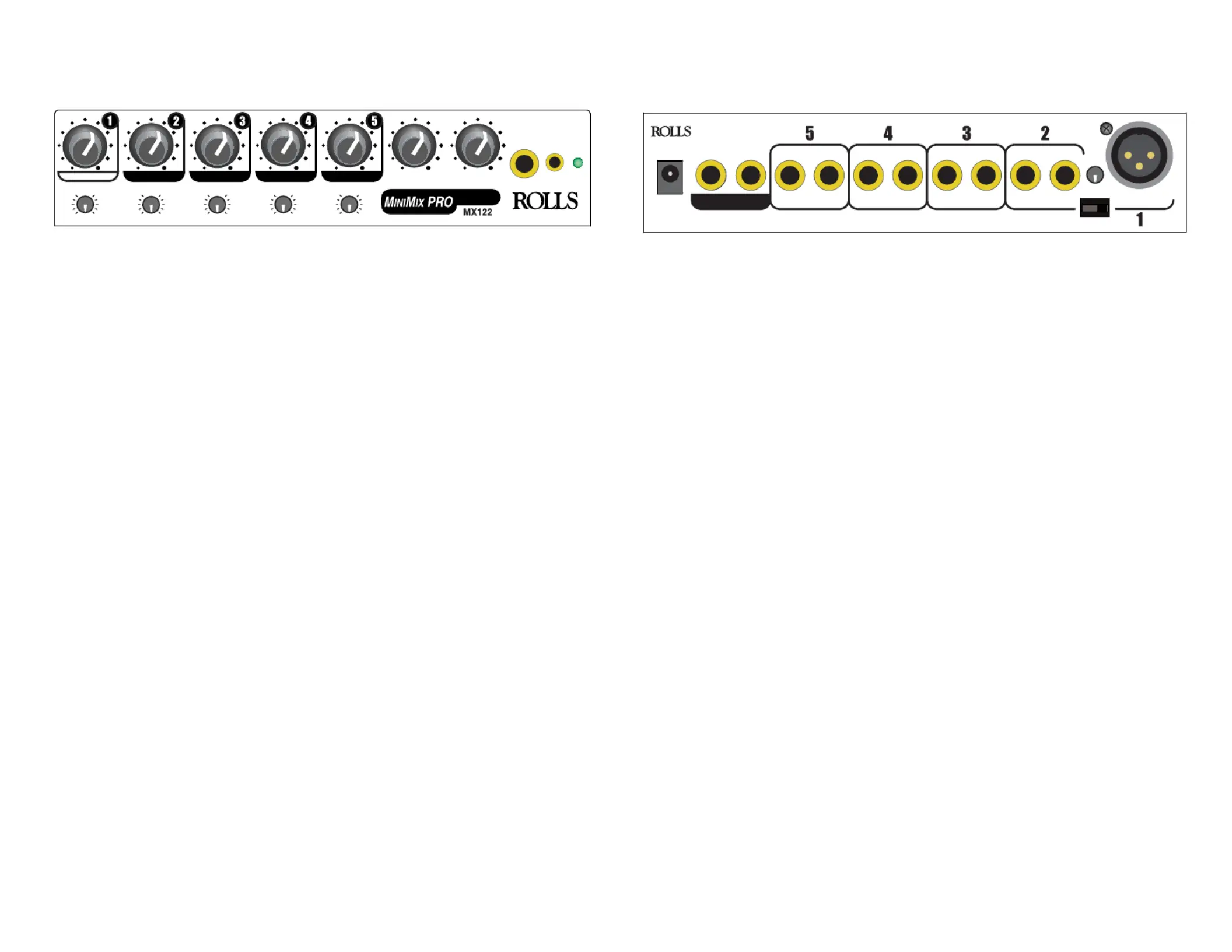

R L

PAN

R L

BAL

R L

BAL

R L

BAL

R L

BAL

MASTER

LEVEL

PHONE/AUX

LEVEL

PHONE/AUX

OUTPUTS

pwr

LEVELLEVELLEVELLEVEL

MIC LEVEL

FEATURES

• 1 XLR balanced Mic Input with rear panel Trim control

• +15VDC Phantom Power

• 4 individual 1/4” Stereo Inputs

• Balanced 1/4” TRS Outputs

• Balance control on each channel (Pan on the Mic channel)

• Headphone / Auxiliary Outputs

• External Power Supply included for low noise operation

Thank your for your purchase of the Rolls MX122 MiniMix Pro

Mixer. The MX122 is a line-level mixer featuring a single mic input

and four channels of stereo inputs.
