Sida 1/27

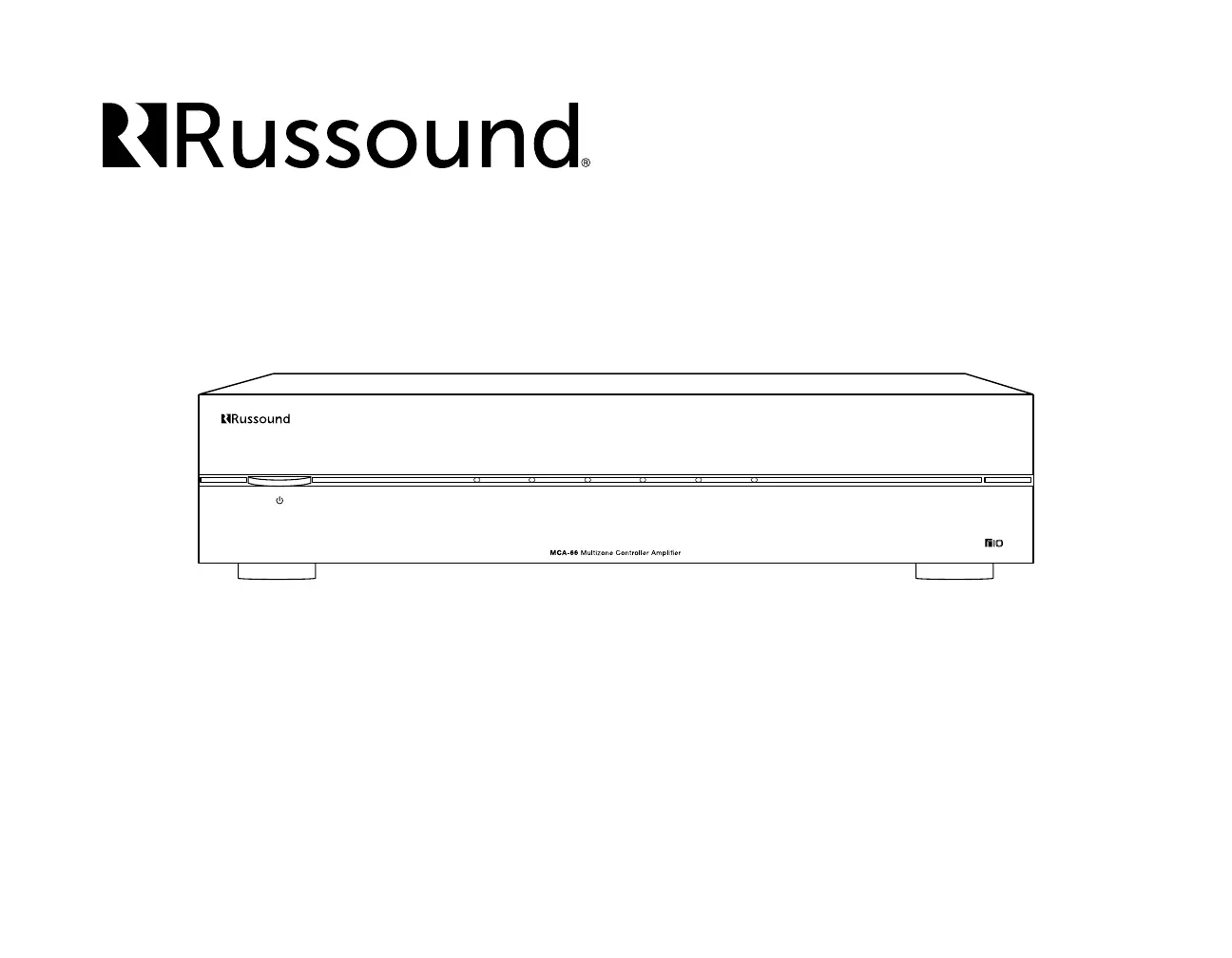

MCA-66
6 Source, 6 Zone Controller Amplier
Installation Manual
llRussound.
---
HRussound
= =
lilO
MCA-ff
Multizona Controller Amplifier
I I I I
2 Russound MCA-66 Installation Manual
NOTICE:
INTERNET CONNECTION REQUIRED FOR
PRODUCT INSTALLATION
There are two things that must be done at the time of installation of this
product that require a working internet connection:
1. Enter valid Russound Certied Installer credentials. The MCA-66 is
shipped in a locked state so that it cannot be operated without rst being
congured by a Russound Certied Installer.
IF YOU ARE NOT A RUSSOUND CERTIFIED INSTALLER, YOU WILL NOT
BE ABLE TO INSTALL AND CONFIGURE THIS PRODUCT.
If you are a custom installation professional and wish to become
authorized as a Russound Certied Installer, please contact your Russound
Sales Representative for more information.
Note: If you are a Russound Certied Installer and you plan on installing
this product on a job site that may not have working internet access, please
congure the unit at your shop or other location where internet access is
available BEFORE you take it to the job site.
2. Firmware may be updated through Web Cong conguration webpages
or by using a USB stick with the latest rmware. In both cases, an internet
connection is required for obtaining the most recent rmware.
Note: If no internet connection will be available at the installation location,
please download the latest rmware from the Russound website to your
laptop or to a USB drive before going to the job site.
Russound Certied Installer credentials must be entered through the
Web Cong conguration webpages.
Lockdown Feature
When a product is shipped from Russound, it will operate in only a “locked”
state. In this state, no audio or control of attached devices via its user
interfaces (keypad, touchscreen, MyRussound App) is available. In order to
unlock the system, valid Russound Certied Installer credentials must be
entered in the Web Cong.
When the controller is rst powered on, a message will appear on all
connected MDK-C6 keypads, XTS touchscreens and the MyRussound App
indicating that the device must be unlocked. The message will contain the IP
address of the controller. Using your mobile device or computer, browse to
the controller’s IP address (type http:// and then the IP address).
If you are using the MyRussound App, the IP address appears as a link that
will direct you to the Web Cong via your local web browser.
If you do not have a valid Russound Certied Installer credential, please
contact your Russound sales representative.
LOCKDOWN FEATURE
l~
MCA-66
stat
us Admiflis1
ra
lton• Configuration • Support•
......,.,_
...
This device must be configured by a Russound Certified I ris1ailef.
Installer
Credentials
UHmame
Password
Apply
3
Russound MCA-66 Installation Manual
Product Overview .......................................................................................................... 4
Programming Software - Web Cong ............................................................4-5
Ethernet Connection and Factory Reset ................................................................ 5
Controller Front and Back Panel............................................................................ 6-7
Installation Overview ...................................................................................................8
Installation Guide ........................................................................................................... 8
Controller / Keypad Connections ...........................................................................10
Speaker Connections ..................................................................................................11
Source Connections ....................................................................................................12
Bluetooth® and Digital Inputs ...................................................................................13
Multiple Controller Installation ...............................................................................14
Zone 1 and 2 Amplication ......................................................................................15
Page Input Source ........................................................................................................16
Home Theater Triggers ...............................................................................................17
IR Connections ..............................................................................................................18
System Start Up.............................................................................................................19
Troubleshooting ...........................................................................................................20
Technical specications .............................................................................................21
Limited Warranty ..........................................................................................................21
Safety Information .......................................................................................................22
TABLE OF CONTENTS

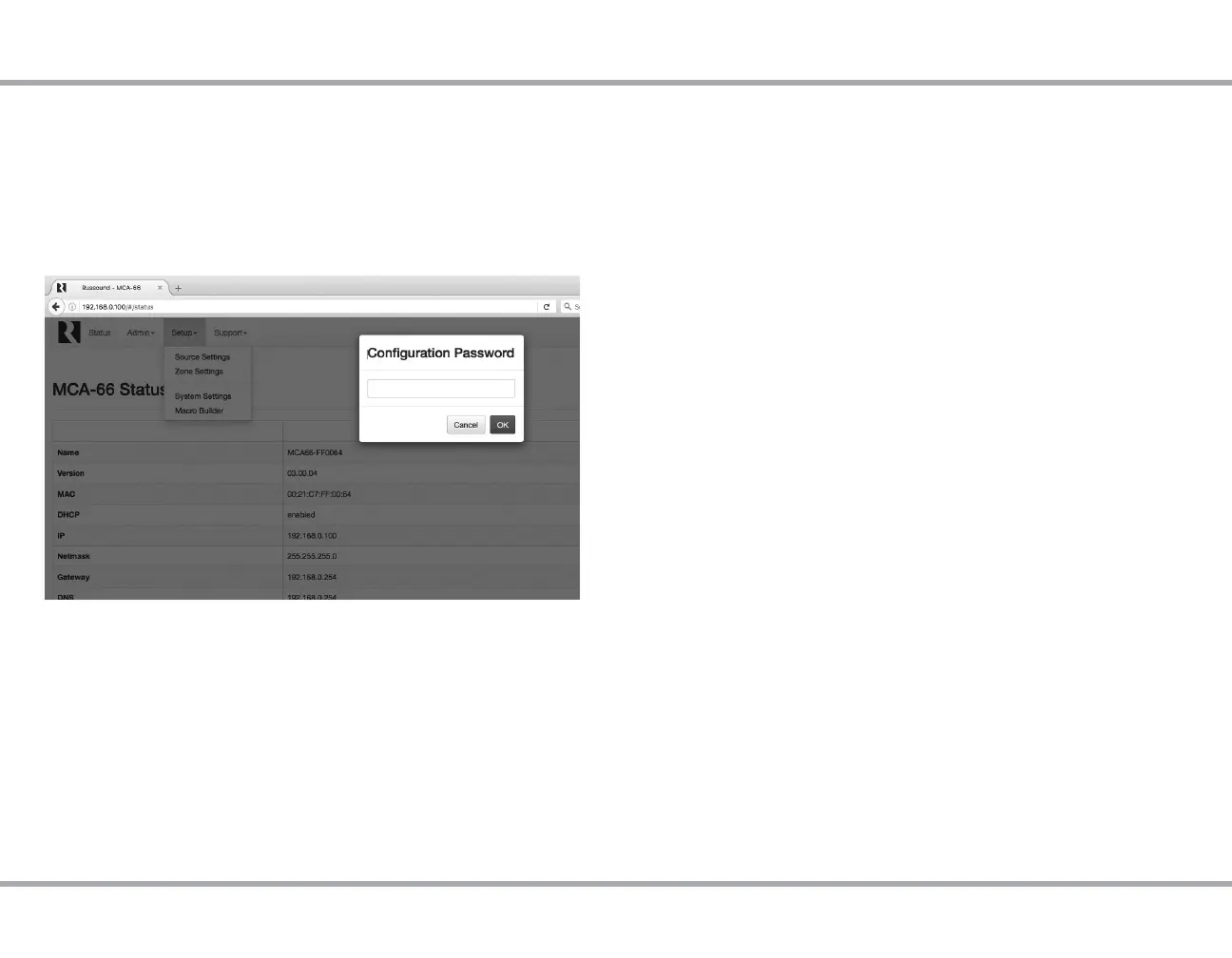

Conguration Password
In order to prevent unauthorized changes to conguration settings, a
default password of russound123 has been created that will be required to
be entered prior to changing any conguration settings. Enter this password
when prompted for a Conguration Password.
This password is separate from the Russound Certied Installer password
that is used to unlock the controller and cannot be modied.
