MHS Duo Ramp Accessory #4698

Assembly Instructions | Instrucciones de montaje | Instructions d’assemblage

Compatible with | Compatible con | Compatible avec:

MHS Models 4640, 4644

1

2

Included Items:

Accesorios incluidos:

Éléments inclus :

a.

b.

Ramp

Rampa

Rampe

Max Bike Weight = 100 LB /45 KG

Peso máximo de la bicicleta= 45 kg /100 libras

Poids maximum du vélo= 100 LB / 45kg

Max hitch height 32”

Altura máxima del enganche 32”

Hauteur maximale de l’attelage 32 ”

EN

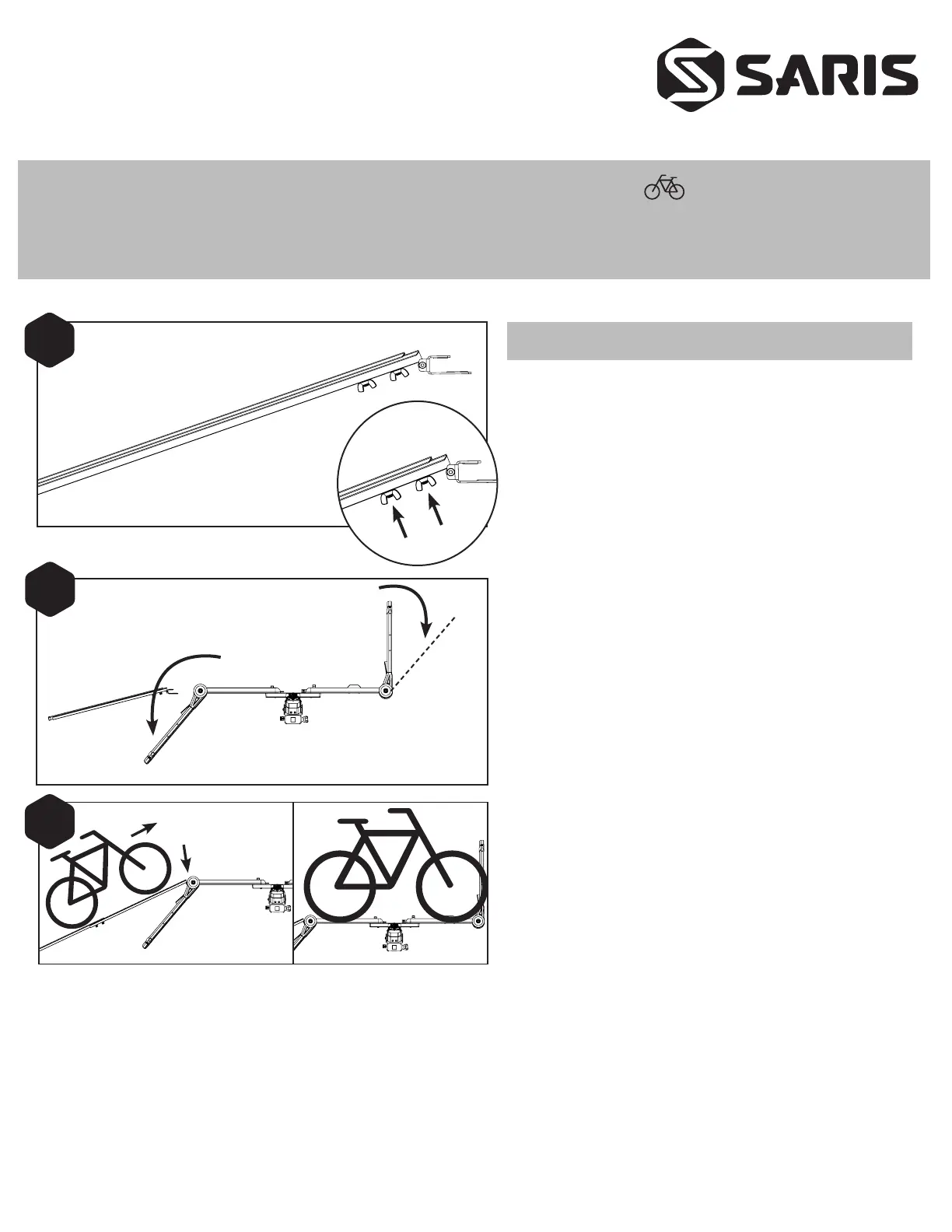

LOADING BIKES | PARA SUBIR LA BICICLETA |

1. a. Loosen knobs on the bottom side of the ramp and extend fully.

b. Tighten knobs.

2. a. Open rear wheel MHS arm and extend below rack.

b. Open Front MHS arm and position between 10 and 11 or 1 and 2.

3. a. Slide ramp attachment bracket on to MHS tray with longer side of

clip on the bottom side.

b. Roll bike up ramp tray and onto rack.

c. Secure front wheel arm before removing ramp

4. See MHS owner’s manual for steps to secure bicycle.
