FLIP PRO MAX-DUAL USB-C & 12V POWER SOCKET

(SC-MULTI-F1)

17-05-2023 (Issue 2)

Installation Instructions

For further installation

and warranty information

please visit:

www.scanstrut.com

USA

+1 860 308 1416

[email protected]

UK & International

+44 (0)1392531280

[email protected]

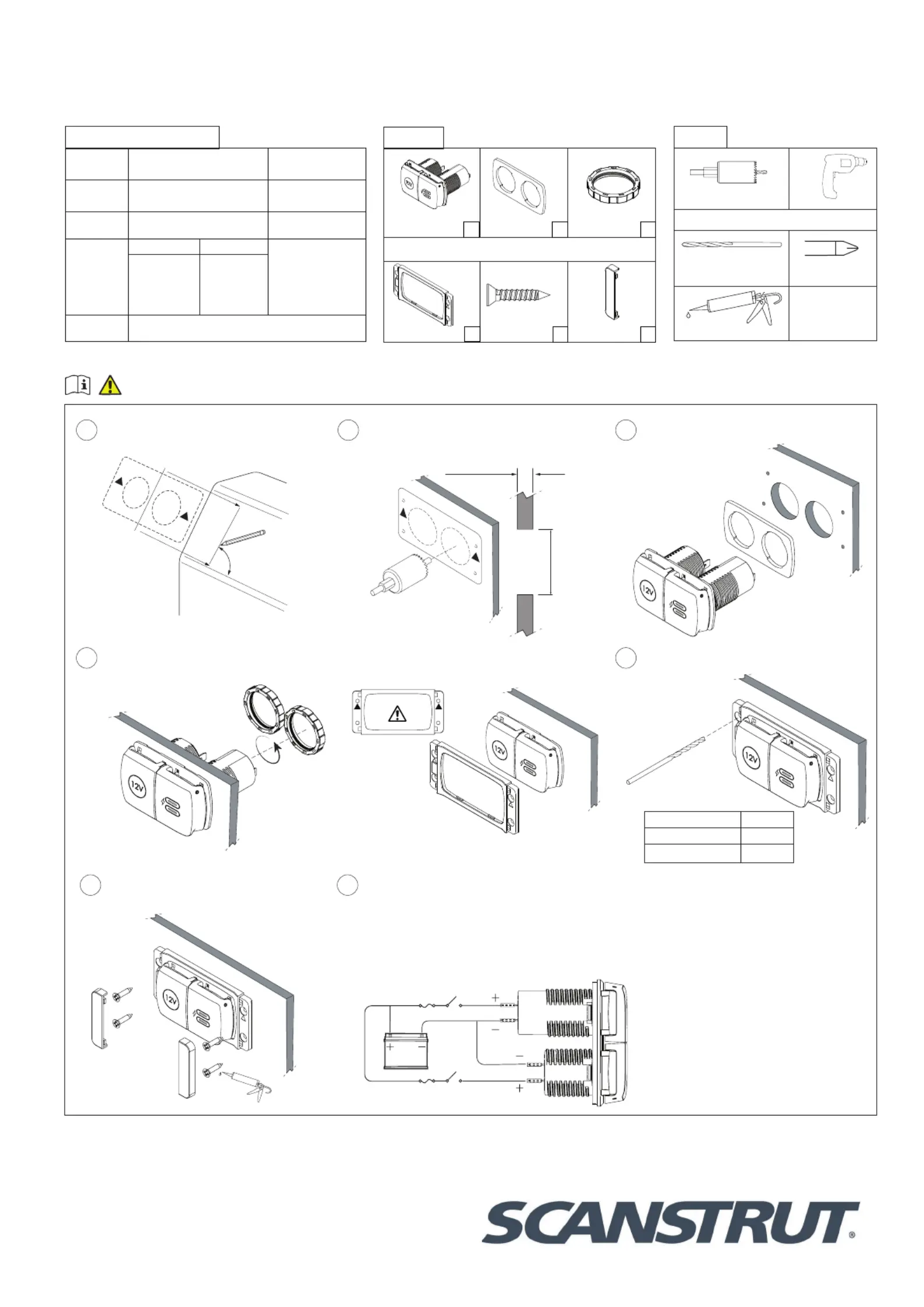

Draw a centre line to align template,

ensure line is square on surface and

correct orientation.

90°

TOP

1

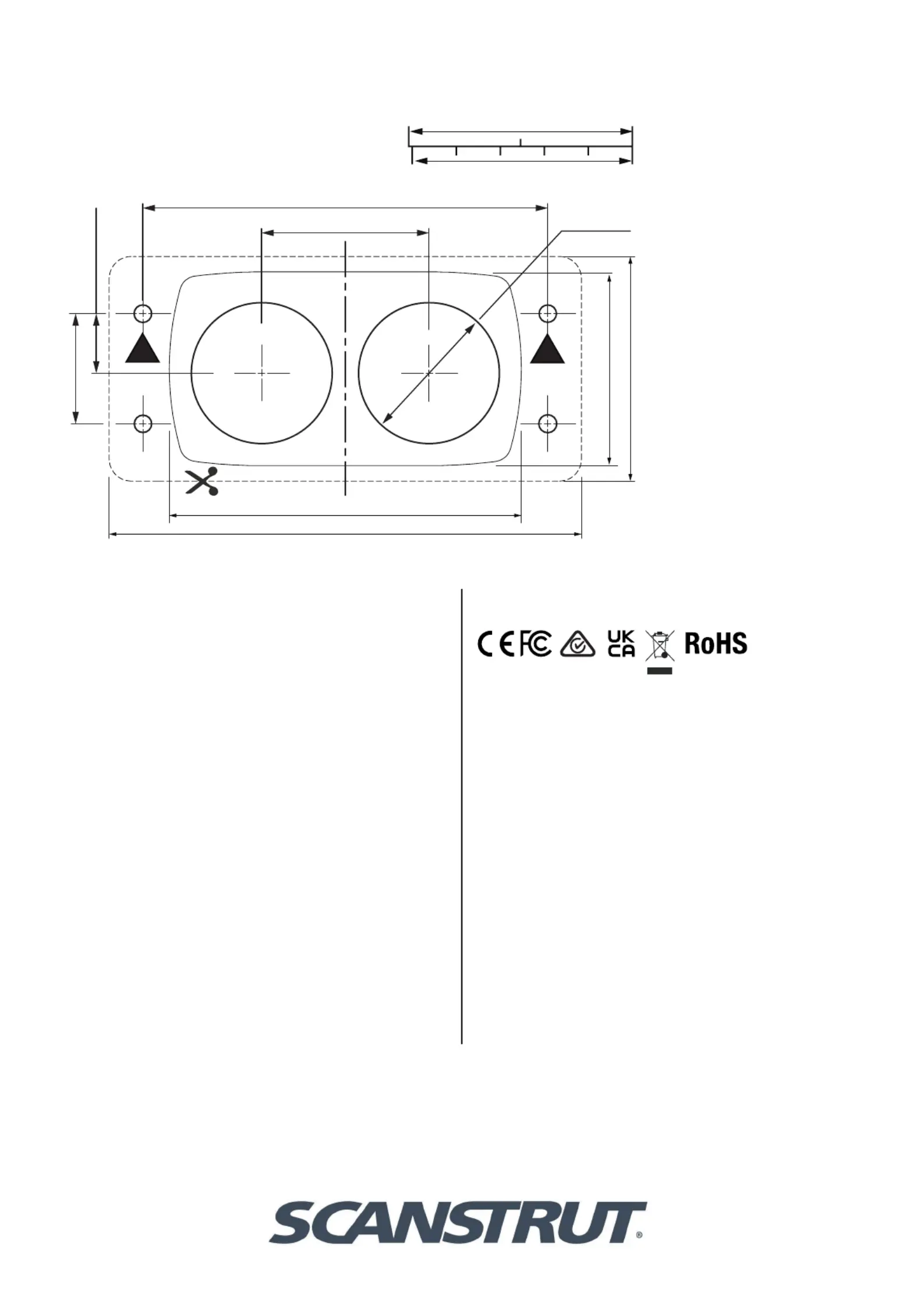

Use drilling template to drill x2 Ø32mm

(1 1/4”) holes (see tools required).

Ø32mm

(1.25”)

3mm (0.11”) Min

25mm (1”) Max

2

Feed Barrel through the gasket and

holes.

3

4

6

7

REAR INSTALL ONLY

Tighten lock rings onto product until

FRONT INSTALL ONLY

Push bezel onto the product, make sure

FRONT INSTALL ONLY

Apply silicone seal on xings and pilot

holes.

Connect to 12V supply, ensuring a waterproof

connection. Fuse and select cable diameter

according to input voltage and current for your

specic installation.

** If using a 24V system a voltage converter is

required on the 12V socket only**

Pilot Hole Size

Material No. 6 Screw

Soft Material e.g Plywood2.5mm (3/32”)

Hard Material e.g Fiberglass3mm (1/8”)

FRONT INSTALL ONLY

Drill 4 pilot holes for bezel.

5

TOP

32mm (1 1/4”) Hole sawDrill

Front install only

Drill bit 2.5mm (3/32”) or

3mm (1/8”)Pozi Screwdriver

Silicone

Tool list:

2 Socket & USB

ChargerGasketLock Ring

Front install only

Front Fit Bezel

No.6x20mm

ScrewsScrew Cover

Parts list:

x1x1

x1

x4

x2

x2

For latest tech info visit: www.scanstrut.com/USB

READ IMPORTANT SAFETY

INFORMATION BEFORE INSTALLING.

Technical information:

USB Charger12V Socket

Input

voltage

12/24V System

10-32V DC

12V System

10-15V DC

Input

current Max

6 A10 A

Output Type

(12V System) (24V System)

12V10A⎓

5V3A, ⎓

9V3A, ⎓

12V3A MAX⎓

5V3A, ⎓

9V3A, ⎓

12V3A, ⎓

15V3A, ⎓

20V3A MAX⎓

Standby

draw

< 0.1W
