Ventura Series
Dual USB-C Socket
Electrical Information
& Installation Instructions
SC-V-USB-01
scanstrut.com
EN READ THESE INSTRUCTIONS BEFORE
INSTALLING THE PRODUCT
DE LESEN SIE DIESE ANLEITUNG DURCH, BEVOR SIE
MIT DER INSTALLATION BEGINNEN
ES LEA ESTAS INSTRUCCIONES ANTES DE INSTALAR
EL PRODUCTO
FR VEUILLEZ PRENDRE CONNAISSANCE DE CES
INSTRUCTIONS. AVANT DE PROCÉDER
À L’INSTALLATION
IT LEGGERE QUESTE ISTRUZIONI PRIMA DI
INSTALLARE IL PRODOTTO
SWE LÄS DESSA INSTRUKTIONER INNAN
PRODUKTEN INSTALLERAS

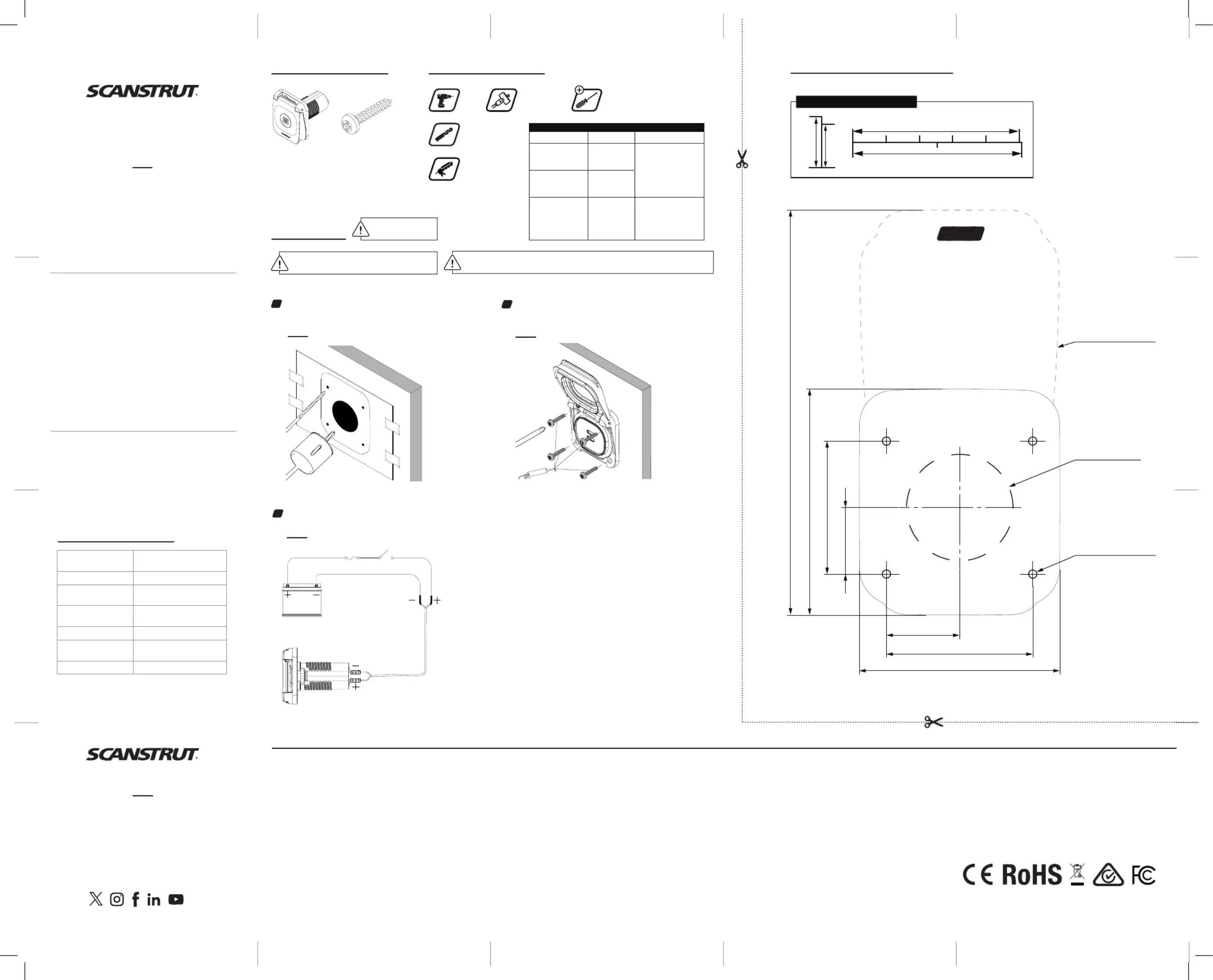

4x Mounting Screws1x Housing
Parts List
Drill
Holesaw
Ø32mm (1 1/4”)
Tools Required
PH2
Silicone or
Automotive Sealant
Drill Bit
Ø2.5mm (3/32”)
Drilling Template Scale 1:1
Installation
Do not click lid closed
until installed.
• Cut out template
• Tape to mounting surface
• Use template to drill 1x ø32mm (1 1/4”) hole and pilot holes as
per Pilot Drill Table above
1
• Apply silicone/automotive sealant to the 4x No.6 PH2 Panhead
mounting screws.
• Secure the housing assembly to the mounting surface -
DO NOT overtighten the screws.
2
3
• Connect to 12/24V supply, ensuring a waterproof connection.
• Fuse and select cable gauge according to input voltage and current for
your specific installation.
This product must be mounted strictly in accordance with the provided mounting template
and must not be installed in any location where submersion or partial submersion may occur.
UK / EMEA / APAC
Scanstrut Ltd, 14 Dart Business Park,
Clyst St. George, Exeter, EX3 0QH
USA
Scanstrut Inc. 7 Pequot Park Rd,
#303 Westbrook, CT 06498
RevA RETAIL-INST-006915
For the latest tech info visit
scanstrut.com
EU Representative (Regulatory Inquiries Only)
Eucomply OÜ, Pärnu mnt 139b-14, 11317 Tallinn, Estonia
hello@eucompliancepartner.com +3375690241
EN WARNING
This product is to be connected to a 12V or 24V DC battery power source
only. The power supply must be switched o before installation.
An appropriate fuse or circuit breaker must be used between battery/
power source and this product. Check for correct polarity of all wiring before
switching the power on.
This product may contain high voltages. Do not tamper with the product.
This product is NOT approved for use in hazardous/ flammable atmospheres.
Do NOT install in a hazardous/flammable atmosphere e.g. engine room.
Ensure any holes cut will not significantly weaken the structure of the
mounting surface.
Before drilling any holes, ensure the cutting template is correct to scale and
the area behind the mounting location is clear of wires, fuel and all other
hazardous objects.
This product must be mounted strictly in accordance with the provided
mounting template and must not be installed in any location where
submersion or partial submersion may occur.
CAUTION
The IP protection rating is only valid if the installation is carried out correctly
according to the instructions and on a flat, smooth and non-porous surface,
ensuring perimeter of the seal is compressed.
The IP protection rating applies to the front only and when the product lid is
fully closed and not in use.
Do not leave the lid in an open position when driving/underway, this may
damage the product and the mounting surface.
When choosing a mounting location, avoid areas exposed to heat radiation
devices, with poor ventilation or an area that can become submerged.
This product is specially designed for charging QC and PD compatible
devices.
This product does not contain any user serviceable parts.
DO NOT attempt to repair or modify the product in any way.
When used in high ambient temperature or in direct sunlight, the product may
turn o temporarily, this is a safety feature of the electronics.
WIRING
Professional electrician installation recommended, see Technical Information
for electrical requirements.
To achieve max power delivery, voltage drop due to cable gauge and length
across both the installation cables need to be considered for installation.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
IMPORTANT
The lid must remain securely latched closed when not in use.
ScanstrutLtd & Inc.accepts no liability for any product malfunction
due to the lid being left open when not in use.
Scanstrut Ltd & Inc. accepts no responsibility for any injuries or other
damages arising from the use of their products in any circumstances.
WARRANTY
A 3-year, non-transferable warranty covers this Scanstrut product
only and not any devices that are connected to it. No warranty is given
for users’ devices and users that expose their devices to hazards,
known or unknown, at their own risk.
Material Pilot Drill Size Fixing
Soft Material
eg. plywood, thin
metal sheet
2.5mm (3/32”)
Included
4x No.6 Screws
Hard Material
eg. fiberglass,
hardwood, acrylic
3mm (1/8”)
Bolt-Through
Mounting
4mm (5/32”)
Recommended
Flanged M4 Panhead
Bolts, Washers and
Nyloc Nuts
(Not included)
Input Voltage
(12/24V System)
10-32V DC
Input Current Max 6A
Output Type C
(12V System)
5V 3A, 9V 3A, 12V 3A Max⎓ ⎓ ⎓
Output Type C
(24V System)
5V 3A, 9V 3A, 12V 3A, ⎓ ⎓ ⎓
15V 3A, 20V 3A Max⎓ ⎓
Standby Power Draw 0.01W
Waterproof Rating
IP68, IP69K
Front Only When Lid Closed
Certification CE, ROHS, FCC, C-Tick, WEEE
Technical Information
Professional electrician installation recommended,
see Technical Information for electrical requirements.
Pilot Drill Table
Scanstrut Ltd, declares the product ‘Ventura Dual USB-C’ SKU:
SC-V-USB-01 is in compliance with EMC CE-RED Directive
(2014/30/EU). EU Declaration of Conformity can be found at
scanstrut.com/uk/compliance
50mm
2”
�5mm
0.5”
WARNING: CHECK SCALE
44mm (1.73")
22mm (0.87")
60.3mm (2.37")
67.9mm (2.67")
122mm (4.80")
40mm (1.57")
20mm (0.79")
TOP ^
4x Holes suitable
for No.6 screw
Clearance required
to fully open the lid
ø32mm (1 1/4”)
