Installation Guide: EN
Document version: 001
⚠WARNING: This product must be installed in
accordance with the instructions provided. Failure to do
so could result in personal injury, damage to your vessel
and/or poor product performance.
⚠WARNING: Performing service or maintenance
without rst disconnecting the battery can cause product
damage, personal injury, or death due to re, explosion,
electrical shock, or unexpected motor starting. Always
disconnect the battery cables from the battery before
maintaining, servicing, installing, or removing motor
components.
In the box
• 1x port-side cradle
• 1x starboard-side cradle
• 12x 1/4-20 x 7/16 hex screws
Tools needed
• #2 Phillips screwdriver
• 4 mm (5/32 in) Allen key
• Torque wrench
Installation
To remove the existing port and starboard side cradles:
1 Disconnect the trolling motor power cable from the
battery (or unplug the power cable if using a plug and
receptacle).

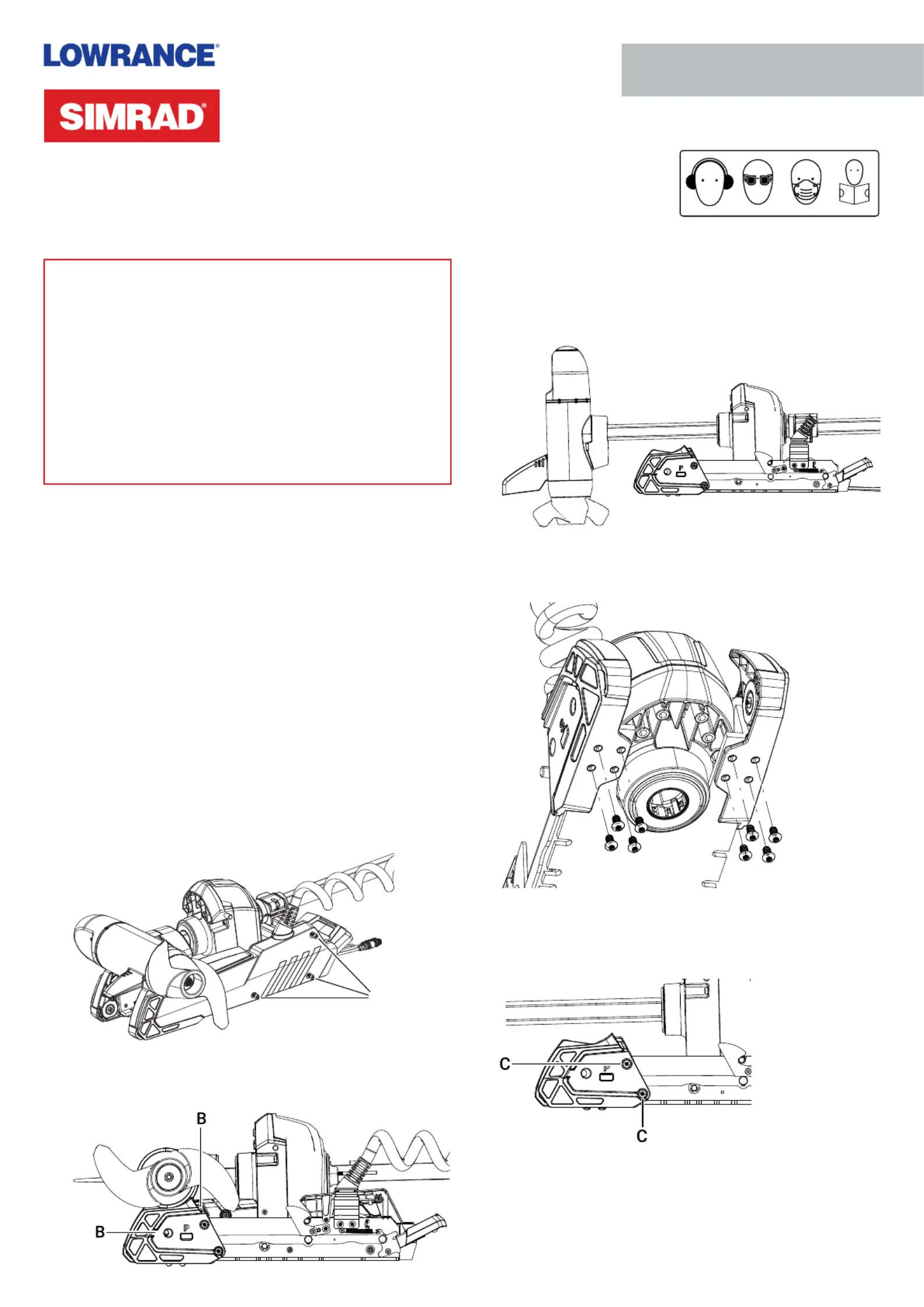

2 Using a #2 Phillips screwdriver, loosen the side plate
screws on both sides of the mount ( ). A
¼Note: The screws are retained by washers.
A
3 Remove the side plates, taking care not to damage the
locating tabs as they leave their slots ( ).B

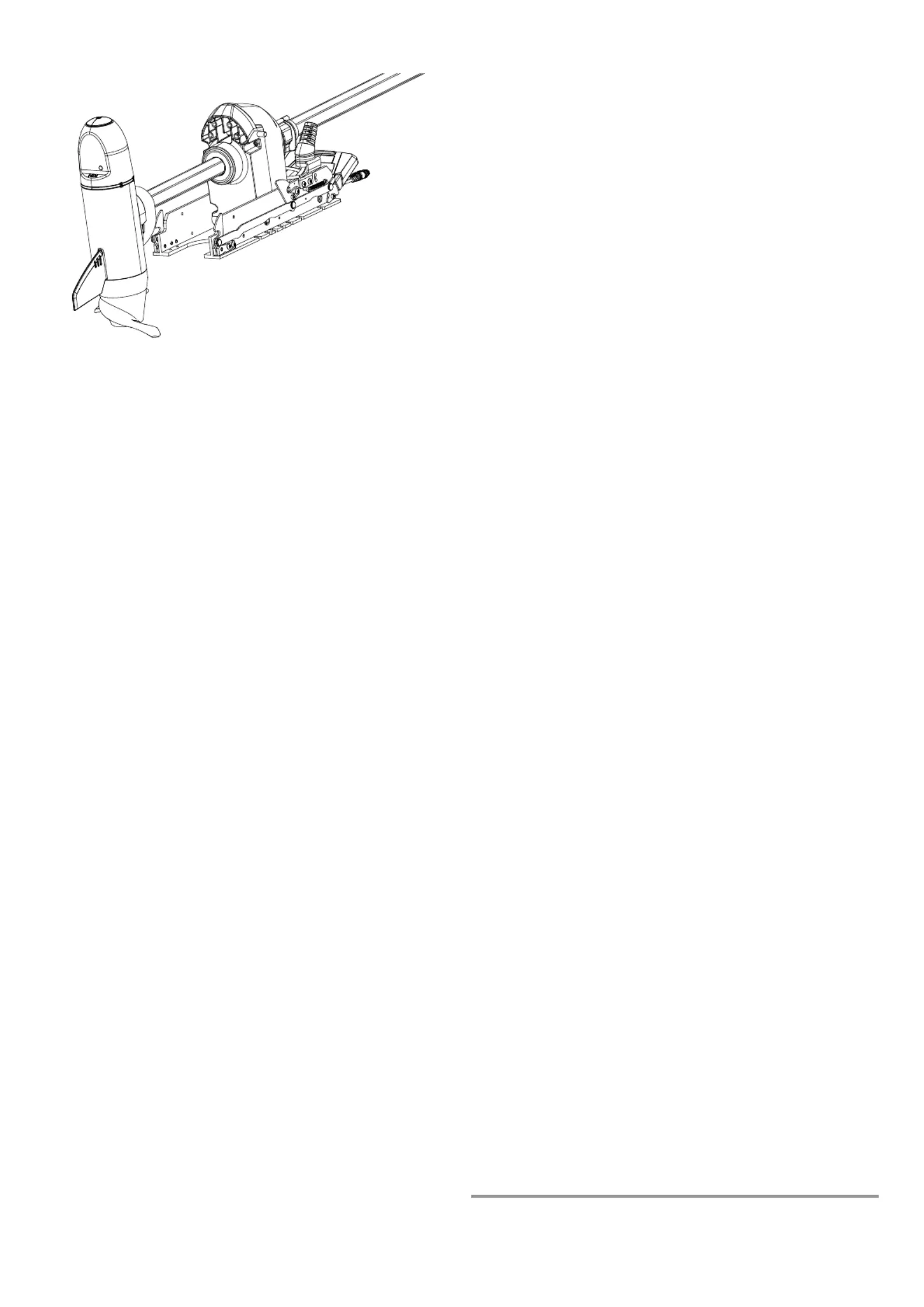

4 Press the stow/deploy release lever and slide the lower
unit off the cradle, while keeping the transmission in the
stowed position. Allow the lower unit to rotate so it rests
in the vertical orientation.
5 Using a 4 mm (5/32 in) Allen key, remove the four 1/4-
20 x 7/16 hex screws from the underside of each cradle.
6 Using a 4 mm (5/32 in) Allen key (or ratchet with 5/32
Allen bit), remove the two hex screws ( ) 1/4-20 x 7/16 C
from the side of each cradle.
