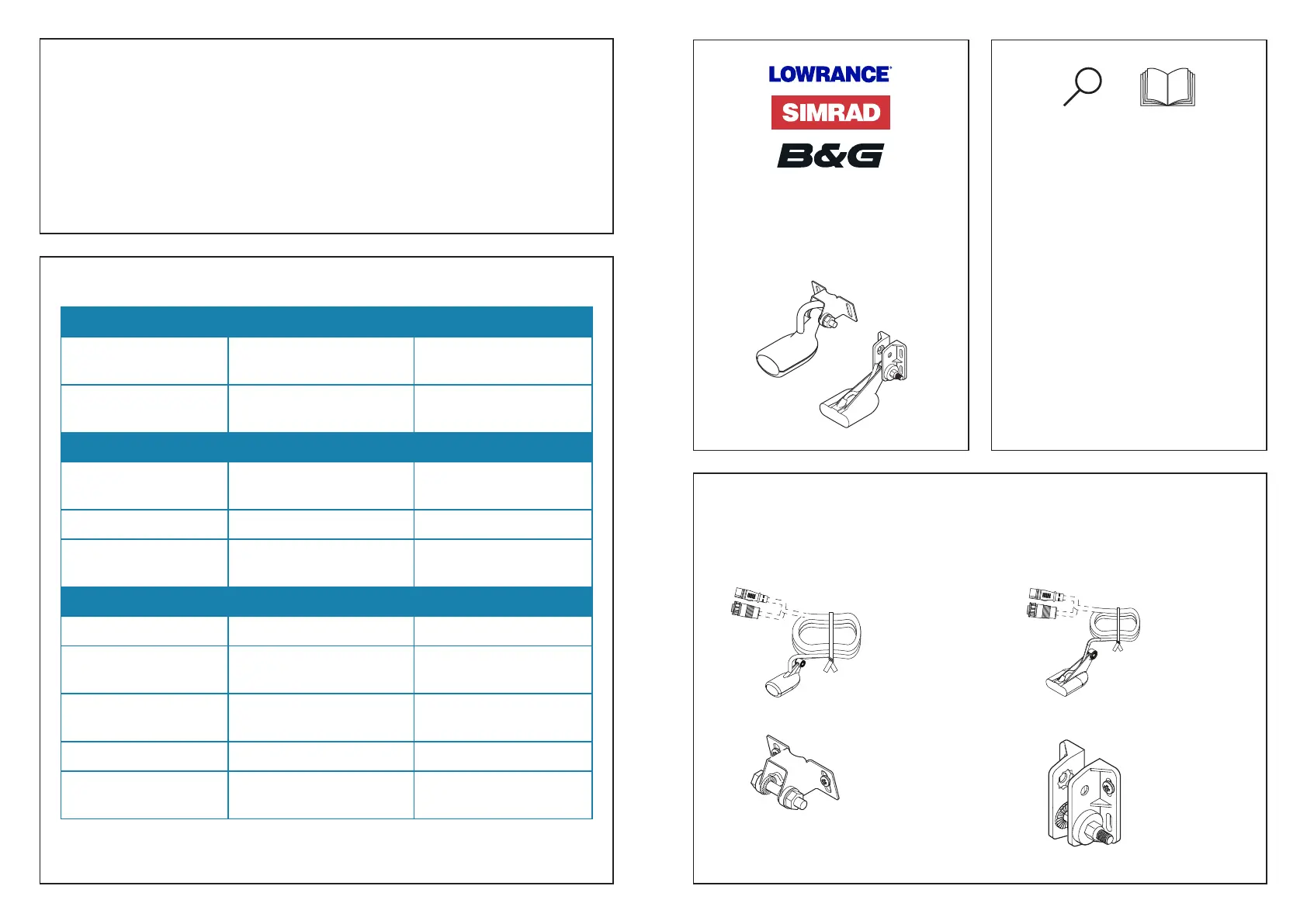

Sida 1/4
For product manuals, technical
specications, certicates and
declarations refer to the product
website:
*988-12321-003*
SKIMMER
TRANSDUCERS
Parts included
Environmental Mid/High Skimmer Low/High Skimmer
Operating temperature 0°C to +50°C
(32°F to +122°F)
0°C to +50°C
(32°F to +122°F)
Storage temperature -30°C to +70°C
(-22°F to +158°F)
-30°C to +70°C
(-22°F to +158°F)
Physical
Weight
(without cable)
0.11 kg (0.24 lbs) 0.37 kg (0.81 lbs)
Cable length 6 m (19.5 ft) 6 m (19.5 ft)
Mounting options Transom, trolling motor,
shoot-thru-hull
Transom, shoot-thru-hull
Sonar
Output Depth and temperature Depth and temperature
Frequency Medium/High CHIRP
(83/200 kHz)
Low/High CHIRP
(50/200 kHz)
Beam width
(at -3dB)
38° at 83 kHz
17° at 200 kHz
29° at 50 kHz
12° at 200 kHz
Depth (down to) 304 m (1000 ft) at 200 kHz 914 m (3000 ft) at 50 kHz
Speed (up to)
(transom mount)
60 knots (70 mph) 60 knots (70 mph)
Technical specications
Trolling motor installation
Refer to the documentation included with the trolling motor accessories
(000-0051-45).
¼Note: When mounted in-hull or shoot-thru-hull the transducer will read the
temperature at the transducer’s location.
Mid/High Skimmer Low/High Skimmer
**
Transducer with cable Transducer with cable
Bracket kit Bracket kit
* Available with dierent connectors
INSTALLATION GUIDE www.lowrance.com
www.bandg.com
www.simrad-yachting.com
Mounting guidelines Transom mount
Material 10# screw
Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”)
Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”)
Recommended pilot holes:
The transducer could lose bottom signal when the boat is on plane.
The transducer will not work while it is out of the water.
If your boat has a counterclockwise propeller rotation conguration mirror the
example shown in the illustration below.
B EC D
A
Best mounting location:
A. undisturbed water ow
A. Resin
B. Inner hull
C. Outer hull
D. Epoxy
E. Flotation material
Mount the transducer parallel to the water surface.
1. Sand smooth the face of the transducer and the bottom of the inner hull.
2. Apply epoxy to the face of the transducer and the bottom of the inner hull.
3. DGlue the transducer to the inner hull ( ).
4. Apply pressure to the transducer while the epoxy is setting.
Shoot-thru-hull installation
Warning: Do not remove any material from your inner hull unless you know
the hull’s composition. Contact your boat dealer or manufacturer to conrm your
hull specications.
Shoot-thru-hull transducers cannot shoot through:
• wood hulls
• metal hulls
Before you epoxy the transducer to the hull, make sure that:
• the area is clean, dry and free of oil or grease
• the surface of the hull is at so the entire transducer face is in contact with the hull
A
A
B
CDE
Apply a marine high-grade above- or below-waterline
sealant/adhesive compound to the pilot holes.
Mid/High Skimmer Low/High Skimmer
Torque to 1.7 Nm
(15 lbf in).
1
2
3
4
5
Avoid mounting:
B. behind planing strake
C. 1 m (3.3’) to port (left) of
propeller
D. within 7.5 cm (3“) to
starboard of propeller
E. close to trim tabs
