Sida 1/12

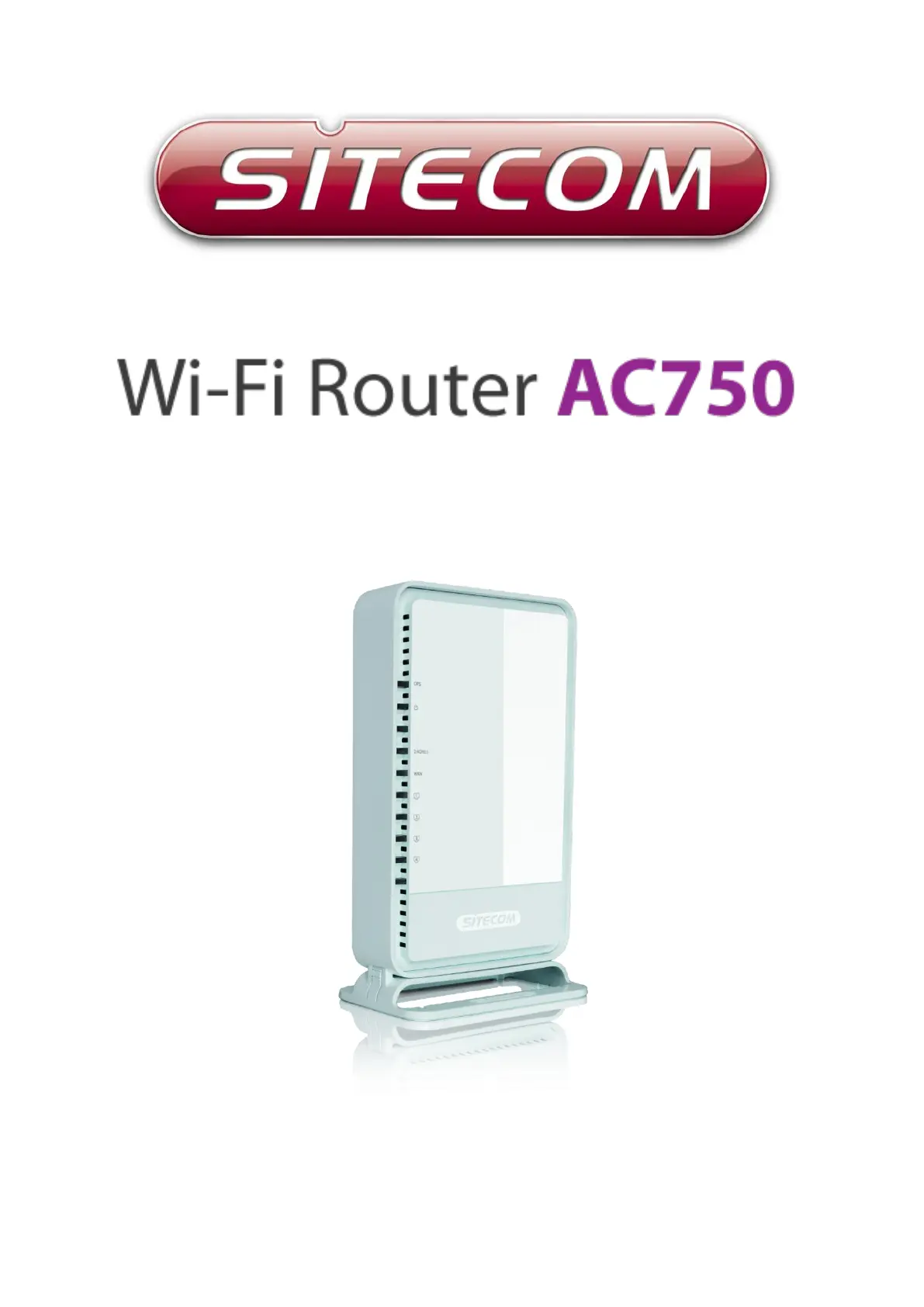

WLR-5002

User Manual

Table of Contents

Introduction .......................................................................................................... 3

Package Contents .................................................................................................. 5

Cautions ............................................................................................................... 6

Product Layout ...................................................................................................... 7

Network + System Requirements ............................................................................ 9

Setup your Router ................................................................................................10

Setup your Computer ............................................................................................11

Configure your Internet connection .........................................................................15

Configure your Router ...........................................................................................18

Wireless Settings ..................................................................................................23

Firewall Settings ...................................................................................................31

Advanced Settings ................................................................................................35

Toolbox Settings...................................................................................................41

Addendum A: USB Port Control Center ....................................................................45

Addendum B: Declaration of Conformity ..................................................................55

Addendum C: GNU/GPL Leaflet ..............................................................................57

Addendum D: GNU/GPL .........................................................................................58

Revision 1.0

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device’s

software may have a slightly different appearance or modified functionality than

presented in this manual.

Introduction

Congratulations on your purchase of the WiFi Router AC750. This router is compliant with

the 802.11ac draft and and up to 2 times faster than standard 802.11n based routers

while still being compatible with 802.11g & 802.11b devices. This router is not only a

Wireless Access Point, but also doubles as a 4-port full-duplex Gigabit switch that

connects your wired-Ethernet devices together at 10/100/1000 Mbps speeds.

At 300Mbps wireless transmission rate on 2.4GHz and 433 Mbps wireless transmission

rate on 5GHz, the Access Point built into the router uses advanced MIMO (Multi-Input,

Multi-Output) technology to transmit multiple streams of data in a single wireless

channel, giving you seamless access to multimedia content. The robust RF signal travels

farther, eliminates dead spots and extends the network range. For data protection and

privacy, the router encodes all wireless transmissions with WEP, WPA, or WPA2

encryption.

With the built-in DHCP Server & powerful SPI firewall, the router protects your computers

against intruders and most known Internet attacks and also provides safe VPN pass-

through. With the incredible speed and QoS function of 802.11n, the router is ideal for

media-centric applications like streaming video, gaming, and VoIP telephony to run

multiple media-intense data streams through the network at the same time, with no

degradation in performance.

Produktspecifikationer

Varumärke:	Sitecom
Kategori:	Router
Modell:	WLR-5002
Vikt:	272 g
Bredd:	183 mm
Djup:	114 mm
Höjd:	36 mm
LED-indikatorer:	LAN, Power, WAN, WLAN, WPS, Y
Processorfrekvens:	580 MHz
Wi-Fi-standarder:	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Frekvensband:	2.4 & 5 GHz
Snabbstartsguide:	Ja
Certifiering:	RoHS, CE
USB-version:	2.0
Internminne:	64 MB
Kabelteknik:	10/100/1000Base-T(X)
Processor:	MediaTek MT7620 + MediaTek MT7610
Återställningsknapp:	Ja
Rackmontering:	Nej
Bandbredd (första):	2.4 GHz
MAC-adressfiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
Brandvägg:	Ja
Flashminne:	8 MB
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
DHCP-klient:	Ja
Nätverksadressöversättning (NAT):	Ja
DMZ-stöd:	Ja
Full duplex:	Ja
Antenndesign:	Intern
Bandbredd (andra):	5 GHz
Systemhändelselogg:	Ja
Produktens färg:	Vit
Antal USB-portar:	1
Monteringsbar på väggen:	Ja
Windows-operativsystem som stöds:	Ja
Mac-operativsystem som stöds:	Ja
Inbyggd processor:	Ja
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	4
AC-inspänning:	220 - 240 V
Kryptering/säkerhet:	WPA, WPA-PSK, WPA2, WPA2-RADIUS
Kabel inkluderad:	LAN (RJ-45)
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	TCP/IPv4, IPv6
Likströmsingång:	Ja
Firmware kan uppgraderas:	Ja
Strömkälla av typen:	AC
AC-adapter inkluderad:	Ja
På / av-knapp:	Ja
Webbaserad adminstraion:	Ja
Antal USB 2.0 anslutningar:	1
Antenner mängd:	3
USB-port:	Ja
Processorkärnor:	1
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Plug & Play-kompatibel:	Ja
Typ av Ethernet LAN-gränssnitt:	Gigabit Ethernet
Linux operativsystem som stöds:	Ja
Automatisk kanalväljare:	Ja
Tillgängliga dataöverföringshastigheter, WLAN:	300,450 Mbit/s
Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Wi-Fi-band:	Dual-band (2,4 GHz / 5 GHz)
WPS tryckknapp:	Ja
Portvidarebefordran:	Ja
Dataöverföringshastighet via WLAN (max):	450 Mbit/s
Kontrollampa:	Ja
Gästanvändare:	Ja
DoS-attacker:	Ja
SPI (Stateful Packet Inspection):	Ja
Verifieringsmetod:	802.1x RADIUS
