Sida 1/52

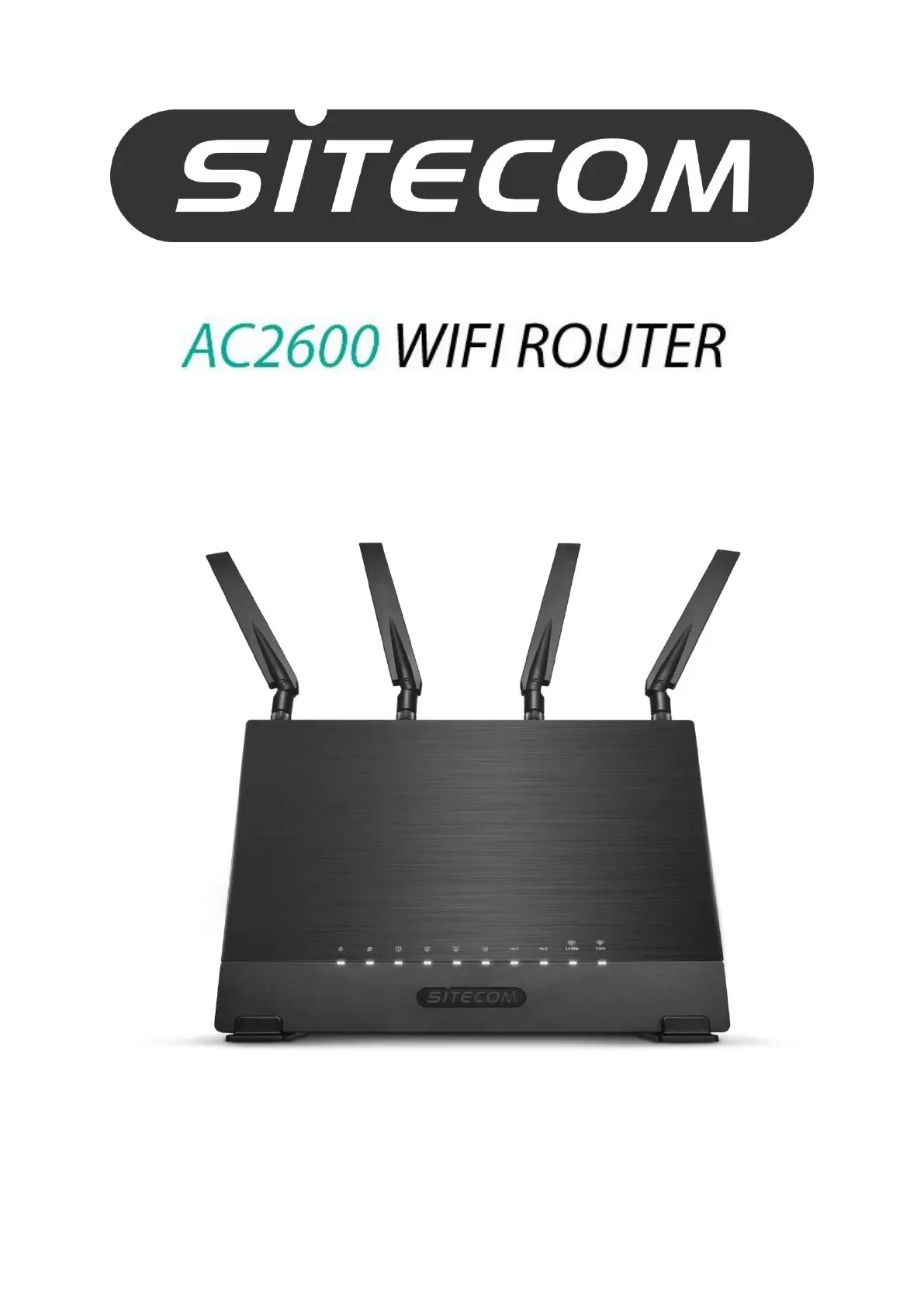

WLR-9500

User Manual

Table of Contents

Introduction ............................................................................................................ 3

Package Contents ..................................................................................................... 5

Cautions ................................................................................................................ 6

Product Layout......................................................................................................... 7

Network + System Requirements ...................................................................................10

Setup your Router ....................................................................................................11

Setup your Computer ................................................................................................12

Configure your Internet connection ...............................................................................16

Configure your Router ...............................................................................................19

Wireless Settings ......................................................................................................24

Firewall Settings ......................................................................................................33

Advanced Settings ...................................................................................................38

Toolbox Settings ......................................................................................................45

Revision 1.0

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device’s

software may have a slightly different appearance or modified functionality than presented in

this manual.

Introduction

Congratulations on your purchase of the AC2600 WiFi Router. This router is compliant with

802.11a/b/g/n/ac and up to 6 times faster than standard 802.11n based routers while still being

compatible with 802.11g & 802.11b devices. This router is not only a Wireless Access Point, but

also doubles as a 4-port full-duplex Gigabit switch that connects your wired-Ethernet devices

together at 10/100/1000 Mbps speeds.

At 800Mbps wireless transmission rate on 2.4GHz and 1750 Mbps wireless transmission rate on

5GHz, the Access Point built into the router uses advanced MIMO (Multi-Input, Multi-Output)

technology to transmit multiple streams of data in a single wireless channel, giving you

seamless access to multimedia content. The robust RF signal travels farther, eliminates dead

spots and extends the network range. For data protection and privacy, the router encodes all

wireless transmissions with WEP, WPA, or WPA2 encryption.

With the built-in DHCP Server & powerful SPI firewall, the router protects your computers

against intruders and most known Internet attacks and also provides safe VPN pass-through.

With the incredible speed and QoS function of 802.11n, the router is ideal for media-centric

applications like streaming video, gaming, and VoIP telephony to run multiple media-intense

data streams through the network at the same time, with no degradation in performance.

Produktspecifikationer

Varumärke:	Sitecom
Kategori:	Router
Modell:	WLR-9500
Produkttyp:	Bordsrouter
Bredd:	265 mm
Djup:	180 mm
Höjd:	30 mm
LED-indikatorer:	LAN, Power, USB, WAN, WLAN
Processorfrekvens:	1000 MHz
Wi-Fi-standarder:	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Snabbstartsguide:	Ja
Återställningsknapp:	Ja
MAC-adressfiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
Brandvägg:	Ja
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
DHCP-klient:	Ja
Nätverksadressöversättning (NAT):	Ja
DMZ-stöd:	Ja
Full duplex:	Ja
URL-filtrering:	Ja
Antenndesign:	Extern
Systemhändelselogg:	Ja
Produktens färg:	Black, Grey
Monteringsbar på väggen:	Ja
Inbyggd processor:	Ja
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	4
Kabel inkluderad:	AC, LAN (RJ-45)
Nätverksansluten (Ethernet):	Ja
Filtrering för IP-adress:	Ja
Firmware kan uppgraderas:	Ja
Strömkälla av typen:	AC
AC-adapter inkluderad:	Ja
På / av-knapp:	Ja
Webbaserad adminstraion:	Ja
Antal USB 2.0 anslutningar:	1
Antenner mängd:	4
Antenn ökningsnivå (max):	5 dBi
USB-port:	Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	1
Processorkärnor:	2
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Typ av Ethernet LAN-gränssnitt:	Gigabit Ethernet
Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Wi-Fi-band:	Dual-band (2,4 GHz / 5 GHz)
WPS tryckknapp:	Ja
Portvidarebefordran:	Ja
Dataöverföringshastighet via WLAN (max):	2600 Mbit/s
Dataöverföringshastighet via WLAN (första bandet):	1750 Mbit/s
Dataöverföringshastighet via WLAN (andra bandet):	800 Mbit/s
Kontrollampa:	Ja
Gästanvändare:	Ja
Brandväggssäkerhet:	Domain Filter, IP Address Binding, MAC Address Binding
DoS-attacker:	Ja
SPI (Stateful Packet Inspection):	Ja
