Sida 1/72

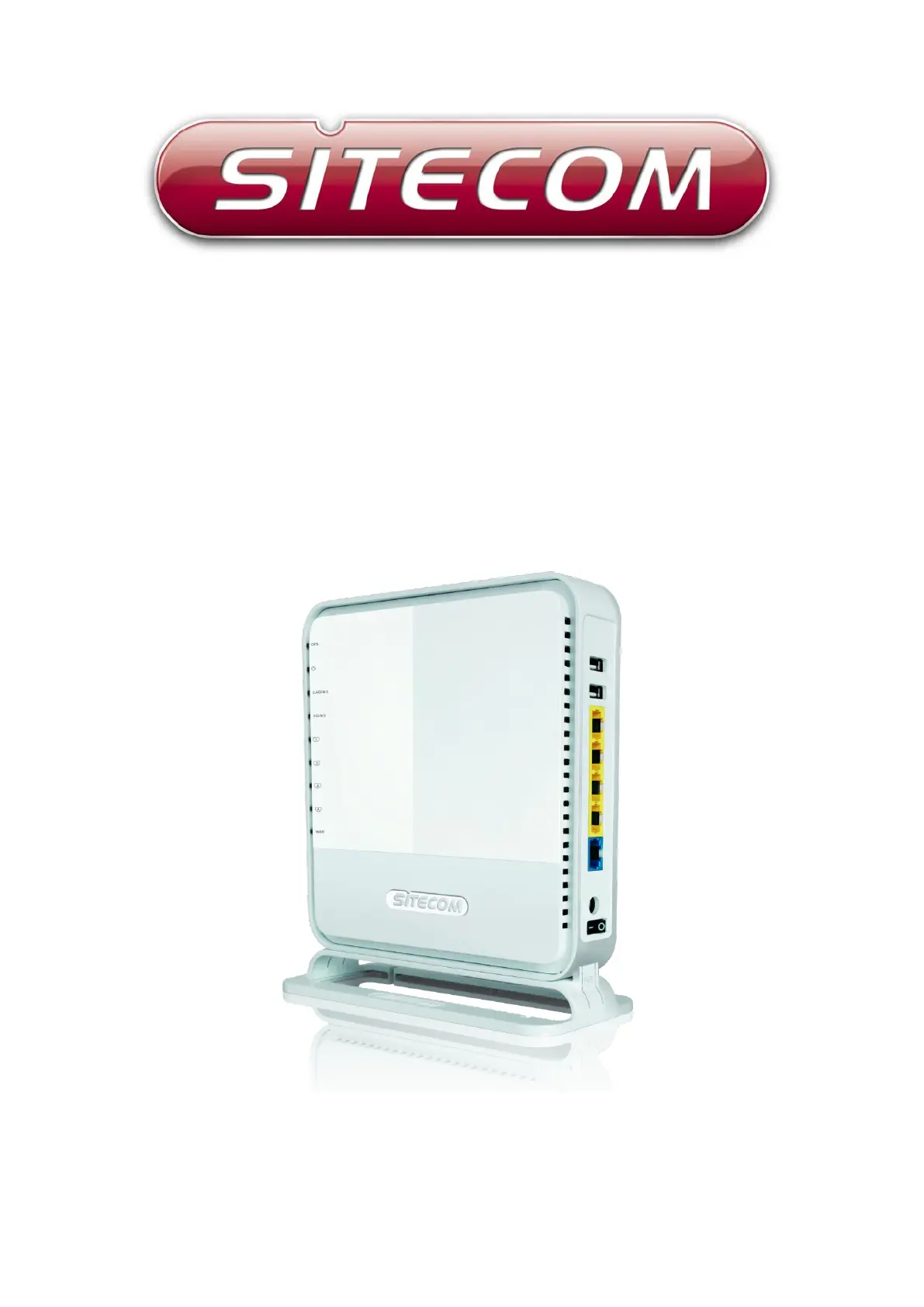

Wi-Fi router X8 AC1750

WLR-8100

User Manual

Table of Contents

Introduction ............................................................................................................ 3

Key Features ............................................................................................................ 4

Package Contents ..................................................................................................... 5

Cautions ................................................................................................................ 6

Product Layout......................................................................................................... 7

Network + System Requirements .................................................................................... 9

Setup your Router ....................................................................................................10

Setup your Computer ................................................................................................11

Configure your Internet connection ...............................................................................15

Configure your Router ...............................................................................................18

Wireless Settings ......................................................................................................22

Firewall Settings ......................................................................................................30

Advanced Settings ...................................................................................................34

Toolbox Settings ......................................................................................................41

Addendum A: USB Port Control Center ............................................................................49

Addendum B: GNU/GPL Leaflet .....................................................................................60

Addendum C: GNU/GPL .............................................................................................62

Addendum D: Declaration of Conformity .........................................................................71

Revision 1.0

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device‟s

software may have a slightly different appearance or modified functionality than presented in

this manual.

Introduction

Congratulations on your purchase of the WiFi Router X8 AC1750. This router is compliant with

802.11a/b/g/n/ac and up to 6 times faster than standard 802.11n based routers while still being

compatible with 802.11g & 802.11b devices. This router is not only a Wireless Access Point, but

also doubles as a 4-port full-duplex Gigabit switch that connects your wired-Ethernet devices

together at 10/100/1000 Mbps speeds.

At 450Mbps wireless transmission rate on 2.4GHz and 1300 Mbps wireless transmission rate on

5GHz, the Access Point built into the router uses advanced MIMO (Multi-Input, Multi-Output)

technology to transmit multiple streams of data in a single wireless channel, giving you

seamless access to multimedia content. The robust RF signal travels farther, eliminates dead

spots and extends the network range. For data protection and privacy, the router encodes all

wireless transmissions with WEP, WPA, or WPA2 encryption.

With the built-in DHCP Server & powerful SPI firewall, the router protects your computers

against intruders and most known Internet attacks and also provides safe VPN pass-through.

With the incredible speed and QoS function of 802.11n, the router is ideal for media-centric

applications like streaming video, gaming, and VoIP telephony to run multiple media-intense

data streams through the network at the same time, with no degradation in performance.

With Sitecom Cloud Security, Sitecom goes one step further and ensures that you can surf the

Internet even more safely, not only on your PC, but on all the devices in your home which you

use to access the Internet. It does not matter whether you surf the Internet on a laptop, a tablet,

a mobile telephone or your television. Thanks to the security that is integrated in the router, all

the Internet devices in your home are protected against the dangers of Internet criminality.

Produktspecifikationer

Varumärke:	Sitecom
Kategori:	Router
Modell:	X8 AC1750
Vikt:	426 g
Bredd:	182 mm
Djup:	182 mm
Höjd:	37 mm
LED-indikatorer:	LAN, Power, WAN, WLAN, WPS
Processorfrekvens:	700 MHz
Wi-Fi-standarder:	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Frekvensband:	2.4 & 5 GHz
Snabbstartsguide:	Ja
Certifiering:	RoHS, CE
Internminne:	128 MB
Kabelteknik:	10/100/1000Base-T(X)
Processor:	Qualcomm Atheros QCA9558 + Qualcomm Atheros QCA9880
Återställningsknapp:	Ja
Bandbredd (första):	2.4 GHz
MAC-adressfiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
Brandvägg:	Ja
Flashminne:	16 MB
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
DHCP-klient:	Ja
Nätverksadressöversättning (NAT):	Ja
DMZ-stöd:	Ja
Full duplex:	Ja
Antenndesign:	Intern
Bandbredd (andra):	5 GHz
Systemhändelselogg:	Ja
Produktens färg:	Vit
Antal USB-portar:	2
Monteringsbar på väggen:	Ja
Windows-operativsystem som stöds:	Ja
Mac-operativsystem som stöds:	Ja
Inbyggd processor:	Ja
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	4
AC-inspänning:	220 - 240 V
Kryptering/säkerhet:	WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-RADIUS
Kabel inkluderad:	LAN (RJ-45)
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	TCP/IPv4, IPv6
Likströmsingång:	Ja
Firmware kan uppgraderas:	Ja
Strömkälla av typen:	AC
AC-adapter inkluderad:	Ja
På / av-knapp:	Ja
Webbaserad adminstraion:	Ja
Antal USB 2.0 anslutningar:	1
Antenner mängd:	6
USB-port:	Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	1
Processorkärnor:	1
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Plug & Play-kompatibel:	Ja
Typ av Ethernet LAN-gränssnitt:	Gigabit Ethernet
Linux operativsystem som stöds:	Ja
Automatisk kanalväljare:	Ja
Tillgängliga dataöverföringshastigheter, WLAN:	450,1300,1750 Mbit/s
Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Medföljande programvara:	USB Printer Software
Wi-Fi-band:	Dual-band (2,4 GHz / 5 GHz)
WPS tryckknapp:	Ja
Portvidarebefordran:	Ja
Löstagbar(a) antenn(er):	Nej
Dataöverföringshastighet via WLAN (max):	1750 Mbit/s
Kontrollampa:	Ja
Gästanvändare:	Ja
DoS-attacker:	Ja
SPI (Stateful Packet Inspection):	Ja
Verifieringsmetod:	802.1x RADIUS
