NOTICE

T h e i n f o r m a t i o n c o nt a i n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

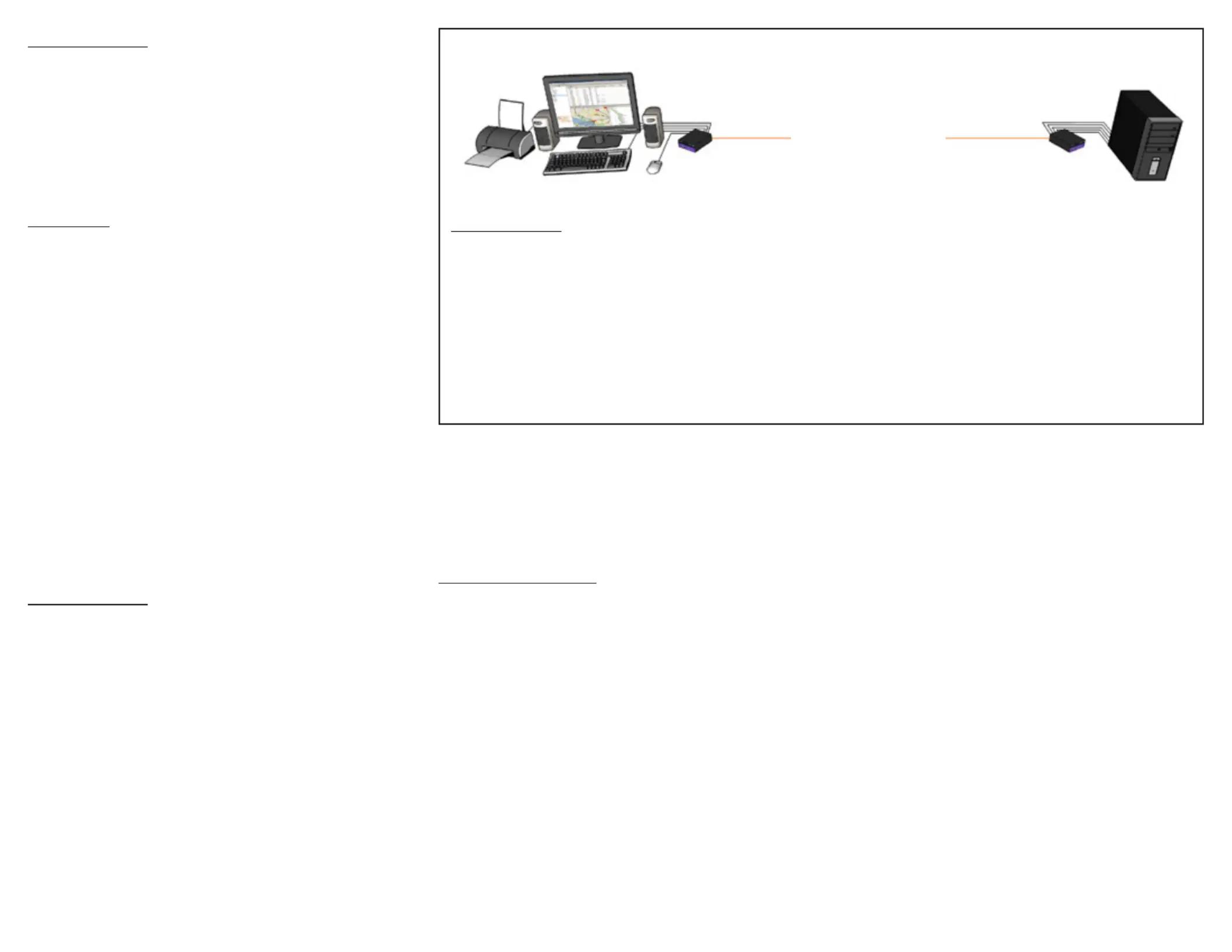

The FDX-3500 consists of a transmitter

and receiver that extend KVM, DVI-D,

audio and RS-232 signals. It is a

professional quality KVM capable of

extending signals up to 15 kilometers

over a single singlemode ber optic cable.

FDX-3500

DVI-D Video, Stereo Audio, USB

Keyboard/Mouse and RS-232

Extender over Fiber Optic Cable

www.smartavi.com

Installation

Manual

What’s in the Box?

PART NO. QTY DESCRIPTION

FDX-TX3500 1 FDX-3500 Transmitter Unit - DVI-D, Stereo

Audio, USB Keyboard/Mouse and RS-232

Extender over Fiber Optic Cable

FDX-RX3500 1 FDX-3500 Receiver Unit - DVI-D, Stereo

Audio, USB Keyboard/Mouse and RS-232

Extender over Fiber Optic Cable

Power Supply 2 PS5VDC4A

Technical Specications

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (2) DVI-D 29-pin female

Output Interface (1) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC Internal

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

AUDIO

Frequency Response 20 Hz to 20 KHz

Impedance 600 ohm

Nominal Level 0-1.0 V

Common Mode Rejection at 60dB

Input Interface (1) 3.5 mm Stereo Audio

Output Interface (1) 3.5 mm Stereo Audio

USB

Signaling USB Keyboard and Mouse ONLY

Input Interface (1) USB Type B

Output Interface (2) USB Type A

OTHER

Power External 100-240 VAC/5VDC4A @20W

Dimensions 4.5”W x 5.375”H x 1.75”D

Weight 1 lb.

Approvals UL, CE, ROHS Compliant

Operating Temp. 32-131°F (0-55 °C)

Storage Temp. -4-185 °F (-20-85 °C)

Humidity Up to 95%

RS-232 Data up to 115,000 bps

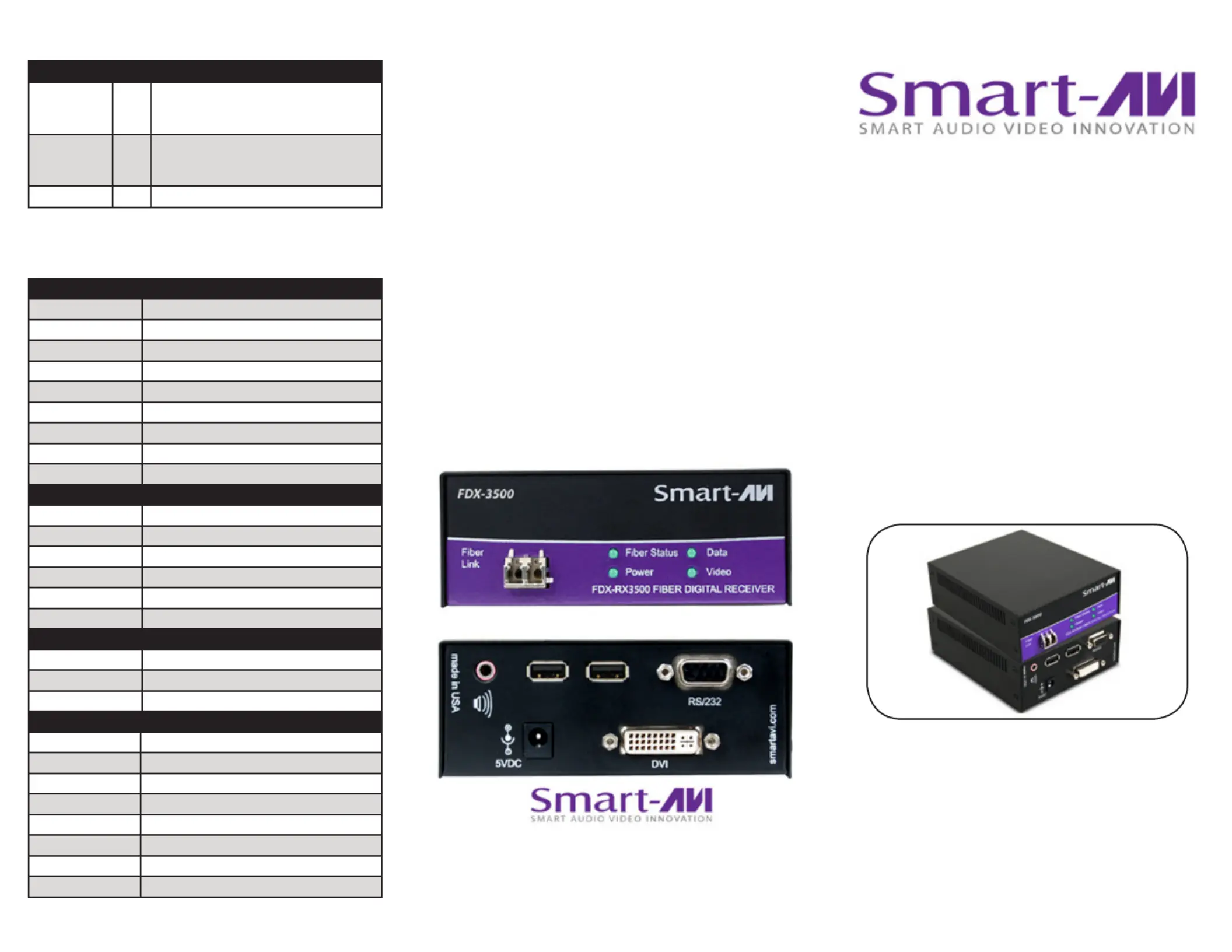

FDX-3500 Receiver Front

FDX-3500 Receiver Rear

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com
