The FDX-2500 consists of a transmitter
and receiver that extend KVM, DVI-D,
audio and RS-232 signals. It is a
professional quality KVM capable of
extending signals up to 15 kilometers
over a single singlemode ber optic cable.
FDX-2500
DVI-D Video, Stereo Audio, PS/2
Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO.QTYDESCRIPTION
FDX-TX25001FDX-2500 Transmitter Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
FDX-RX25001FDX-2500 Receiver Unit - DVI-D, Stereo
Audio, PS/2 Keyboard/Mouse and RS-232
Extender over Fiber Optic Cable
Power Supply2PS5VDC4A
Technical Specications
VIDEO
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface(2) DVI-D 29-pin female
Output Interface(1) DVI-D 29-pin female
ResolutionUp to 1920 x 1200 @60Hz
DDCInternal
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
AUDIO
Frequency Response20 Hz to 20 KHz
Impedance600 ohm
Nominal Level0-1.0 V
Common ModeRejection at 60dB
Input Interface(1) 3.5 mm Stereo Audio
Output Interface(1) 3.5 mm Stereo Audio
PS/2
SignalingPS/2 Keyboard and Mouse ONLY
Input Interface(2) PS/2 Female
Output Interface(2) PS/2 Female
OTHER
PowerExternal 100-240 VAC/5VDC4A @20W
Dimensions4.5”W x 5.375”H x 1.75”D
Weight1 lb.
ApprovalsUL, CE, ROHS Compliant
Operating Temp.32-131°F (0-55 °C)
Storage Temp.-4-185 °F (-20-85 °C)
HumidityUp to 95%
RS-232Data up to 115,000 bps

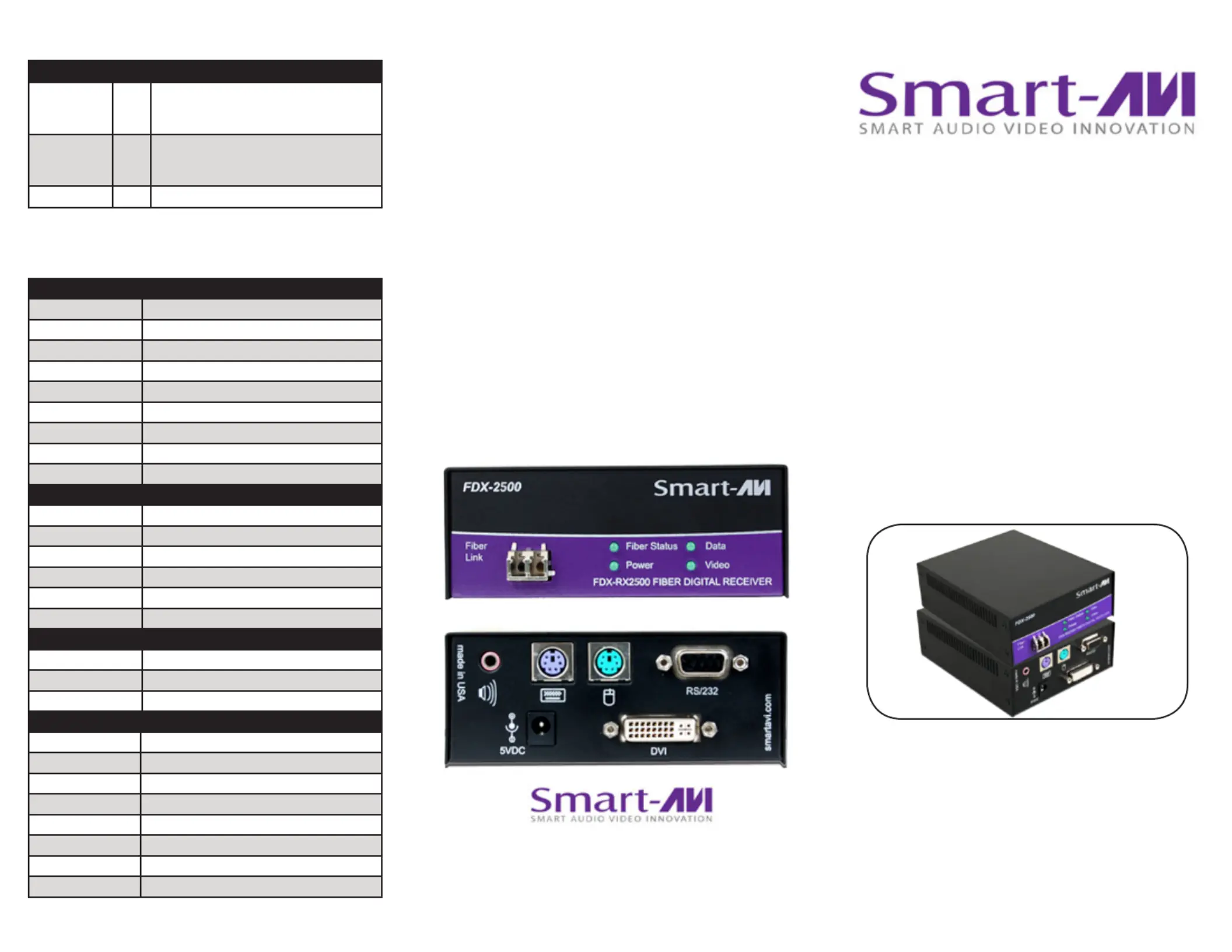

FDX-2500 Receiver Front
FDX-2500 Receiver Rear
