Dual DVI-D and USB 2.0 Extender up
to 250 feet over Twisted Pair Cable
UDX-2P
Dual DVI-D and USB 2.0 Extender
over Twisted Pair with Super Reclocking
www.smartavi.com

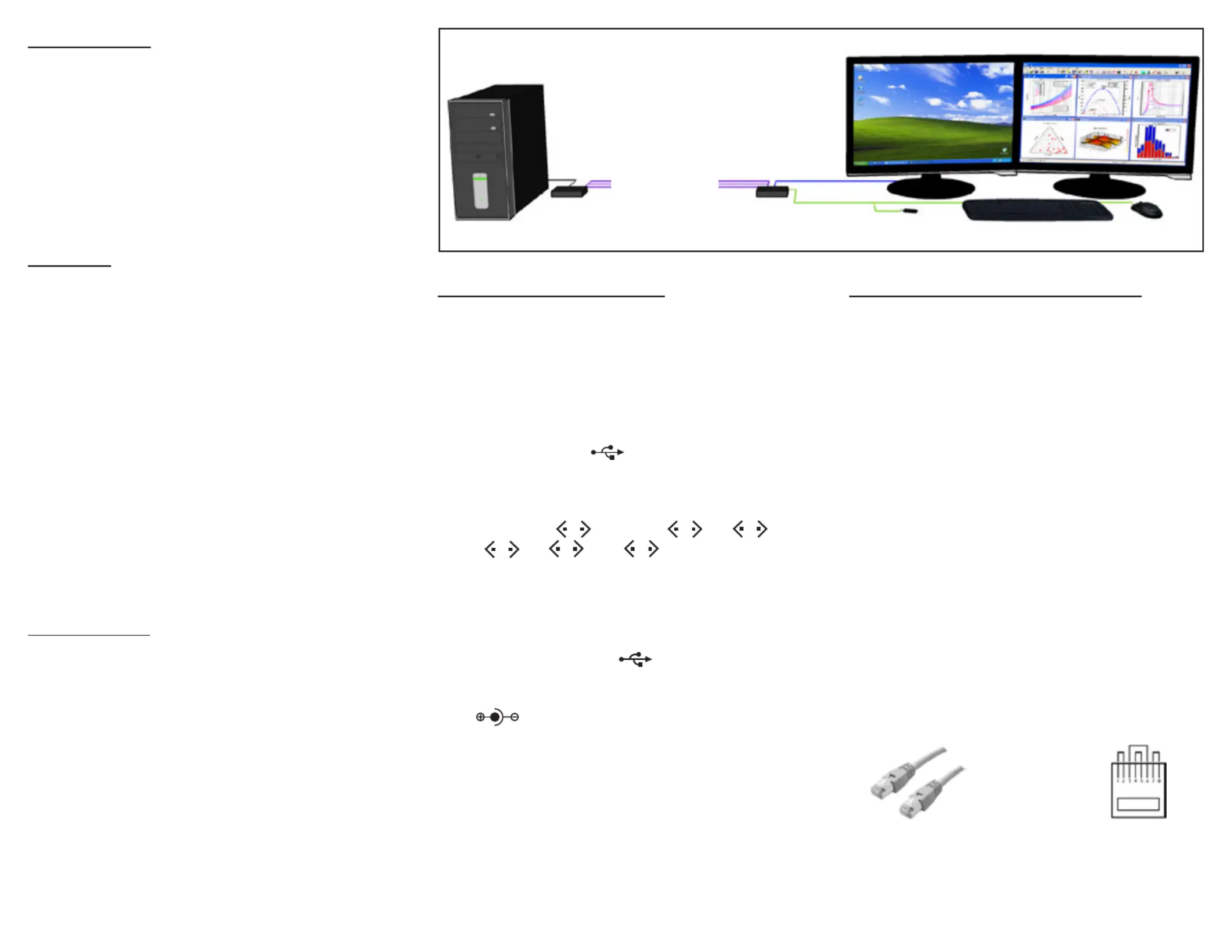

Installation
Manual
Technical Specications
What’s in the Box?
PART NO.QTYDESCRIPTION
UDX-2PS12 DVI-D and USB 2.0 over CAT6 STP Extender.
Includes: [UDX-2P-TX, UDX-2P-RX and 2 x (PS-
5VD4A)]
Power Supply1PS5VDC4A
User Manual1
VIDEO
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)(2) DVI-D 29-pin female
Output Interface (RX)(2) DVI-D 29-pin female
ResolutionUp to 1920 x 1200 @60Hz
DDC5 volts p-p(TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
USB
Signal TypeUSB 2.0 480 Mbit/s (60 MB/s)
Input Interface (TX)(1) USB Type B (Female)
Output Interface (RX)(4) USB Type A (Female)
OTHER
PowerExternal 100-240 VAC/5VDC4A @20W
Dimensions10.5 in W x 1.75 in H x 3.375 in D (3 in RX)
Weight4 lb
Operating Temp.0-55 °C (32-131°F)
Storage Temp.-20-85 °C (-4-185 °F)
HumidityUp to 95%

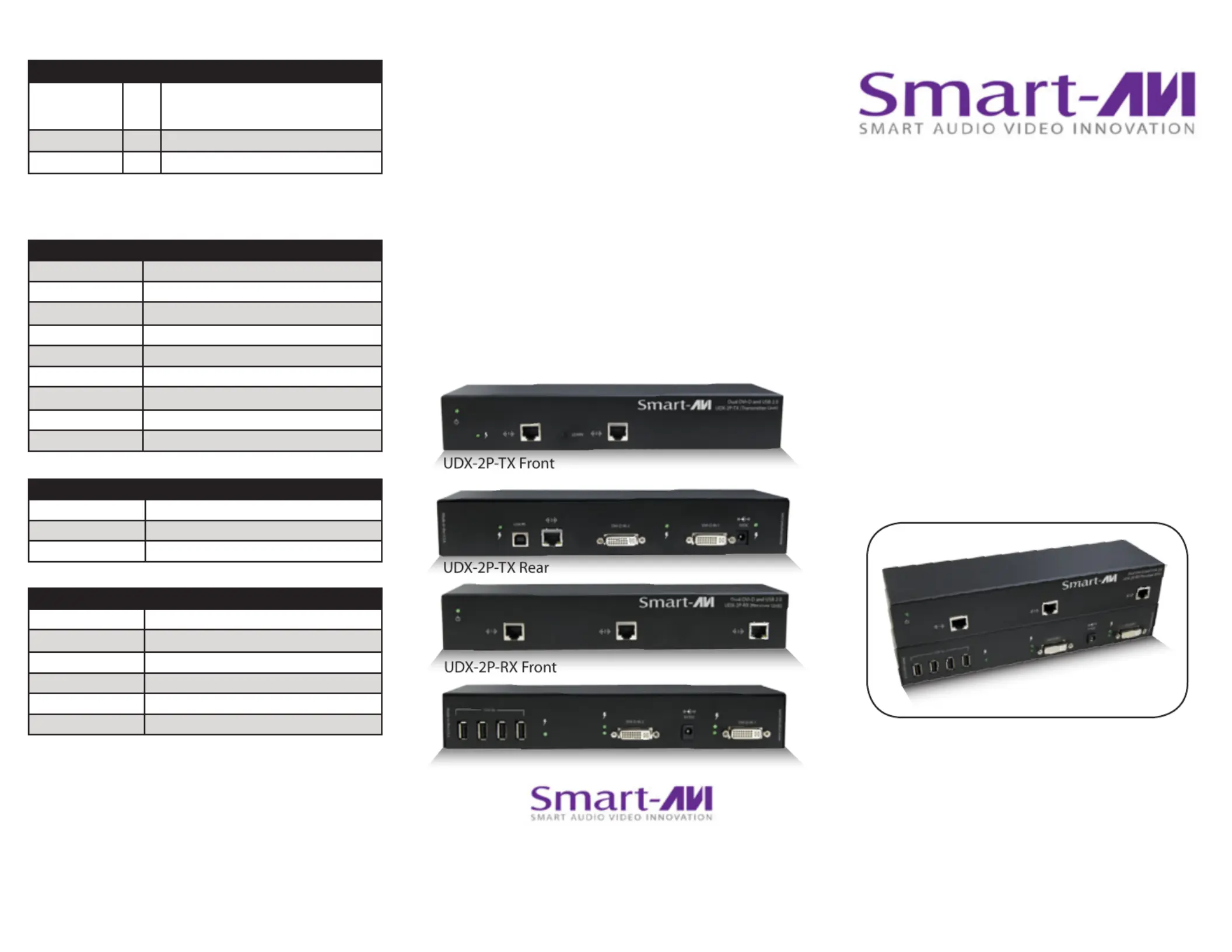

UDX-2P-RX Rear
