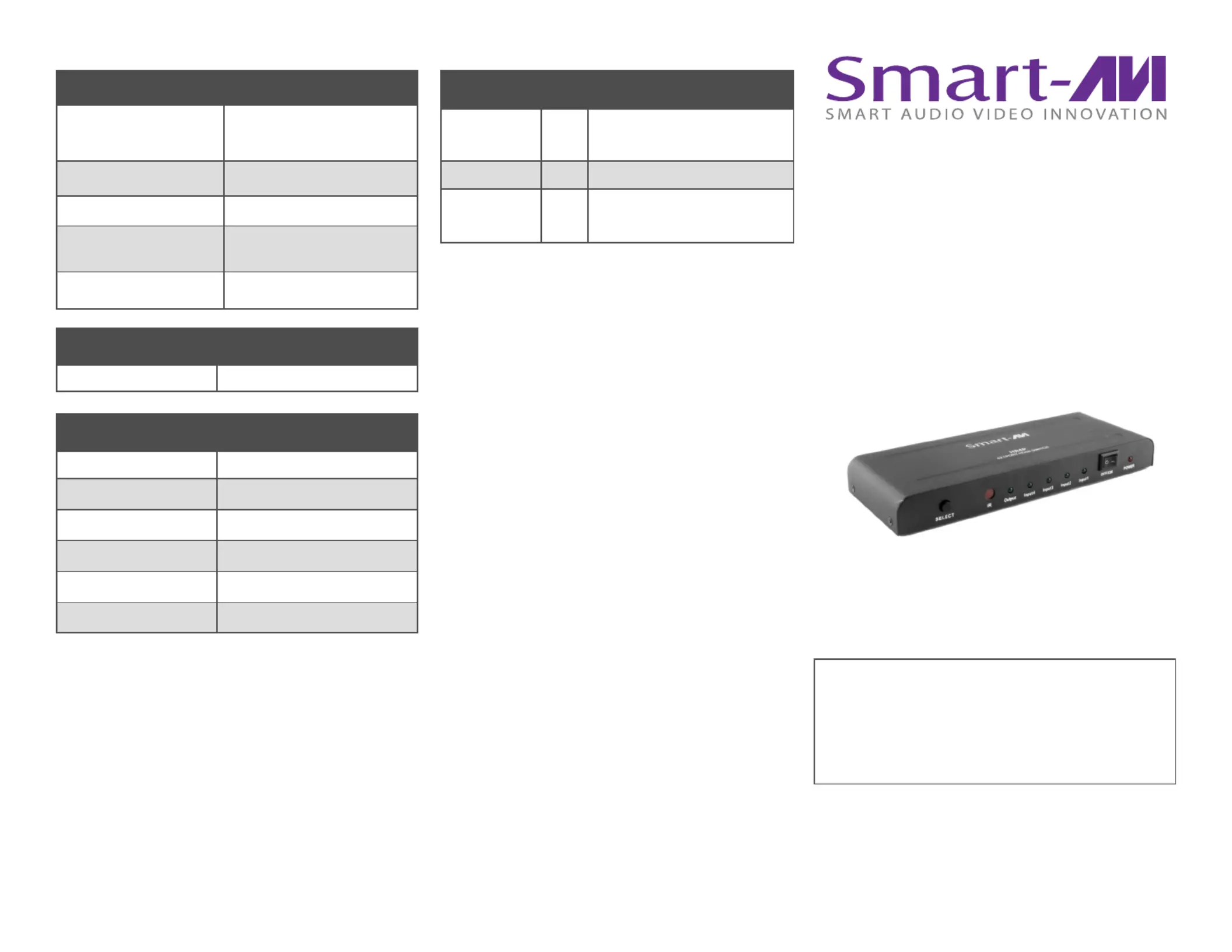

Sida 1/2

HRHR-

4P4P

4-Port HDMI Switch with IR Support

Quick Start Guide

Switch between four HDMI video

sources on one display with front-

panel or IR remote control.

GENERAL

Input (4) HDMI 1.3

Output (1) HDMI 1.3

Video Bandwidth 2.25 Gbps

Video Resolution

Up to 1080p (1920x1200 @

60Hz)

Max. Transmission 50 feet

TECHNICAL SPECIFICATIONS

PHYSICAL

Dimensions 4.74”W x 0.94”H x 2.85”D

Weight 0.64 lbs.

Operang Temp. 0° - 70° C

Storage Temp. -20° - 60° C

Relative Humidity -90% (no condensation) 20%

Power Consumpon 3.5 Watts

800.AVI.2131

Tel: (818) 503- Fax: (818) 503- 6200 |

|| 6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

NOTICE

The information contained in this

document is subject to change without

notice. SmartAVI makes no warranty of

any kind with regard to this material,

including but not limited to, implied

warranties of merchantability and fitness

for particular purpose.

SmartAVI will not be liable for errors

contained herein or for incidental or

consequential damages in connection

with the furnishing, performance or use

of this material.

No part of this document may be

photocopied, reproduced, or translated

into another language without prior

written consent from SmartAVI

Technologies, Inc.

PART NO. QTY DESCRIPTION

HR- 1 HDMI 4x1 Switch 4P

PS5VDC1A 1 Power Supply / Adapter

Quick Start

Guide

1 Installation Setup/Part listing

WHAT’S IN THE BOX

CONTROL

Select Source “SELECT” button or IR remote

HR-4P is a 4- -1 HDMI signal switch with IR con-to

trol support. Send four HDMI sources to one

HDMI output display, and switch between each

signals with the push of a button. HR-4P is also

compatible with infrared remote control, so

switching is always kept easy and within reach.

FEATURES

 (4) HDMI Inputs for HD video and digital audio

 Infrared control support

 Easy switching with SELECT front panel button

 1080p HD (1920x1080 @ 60Hz) resolution

 Simple set-up; plug- -play ready and

 LED status indicators

 OFF/ON switch for energy saving

CONNECTING THIS PRODUCT

1. Make sure all devices are turned OFF.

2. Connect HDMI source devices to HR-4P via HDMI cord (any Input 1-4).

3. Connect HR-4P to an HDTV or HDMI display device via HDMI cord (OUTPUT).

4. Connect HR-4P to PS5VDC1A power supply.

5. Turn on connected input-output devices.

6. Turn on HR-4P by switching the ON/OFF button to ON.

**Status LEDs should display green when HDMI signals are properly connected**

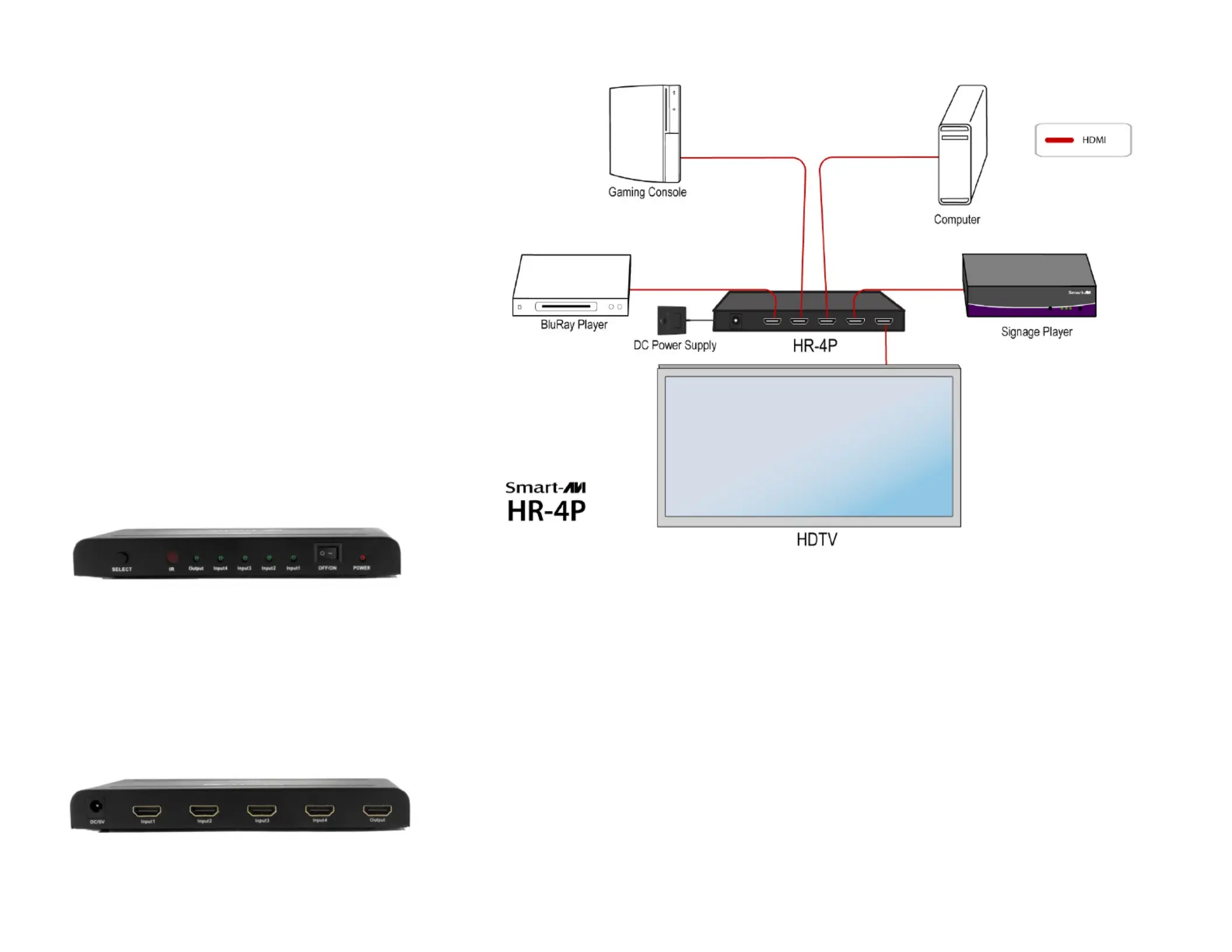

FRONT

BACK

INSTALLATION DIAGRAM

Produktspecifikationer

Varumärke:	Smart-AVI
Kategori:	AV extender
Modell:	HR-4P
Videolägen som stöds:	1080i, 1080p, 480i, 480p, 720i, 720p
Maximal upplösning:	- pixlar
Modell:	Sändare och mottagare för AV-utrustning
Antal HDMI-utgångar:	1
Produktens färg:	Svart
Produktstorlek (BxDxH):	72.5 x 120.5 x 24 mm
Likströmsingång:	Ja
HDMI-in:	4
