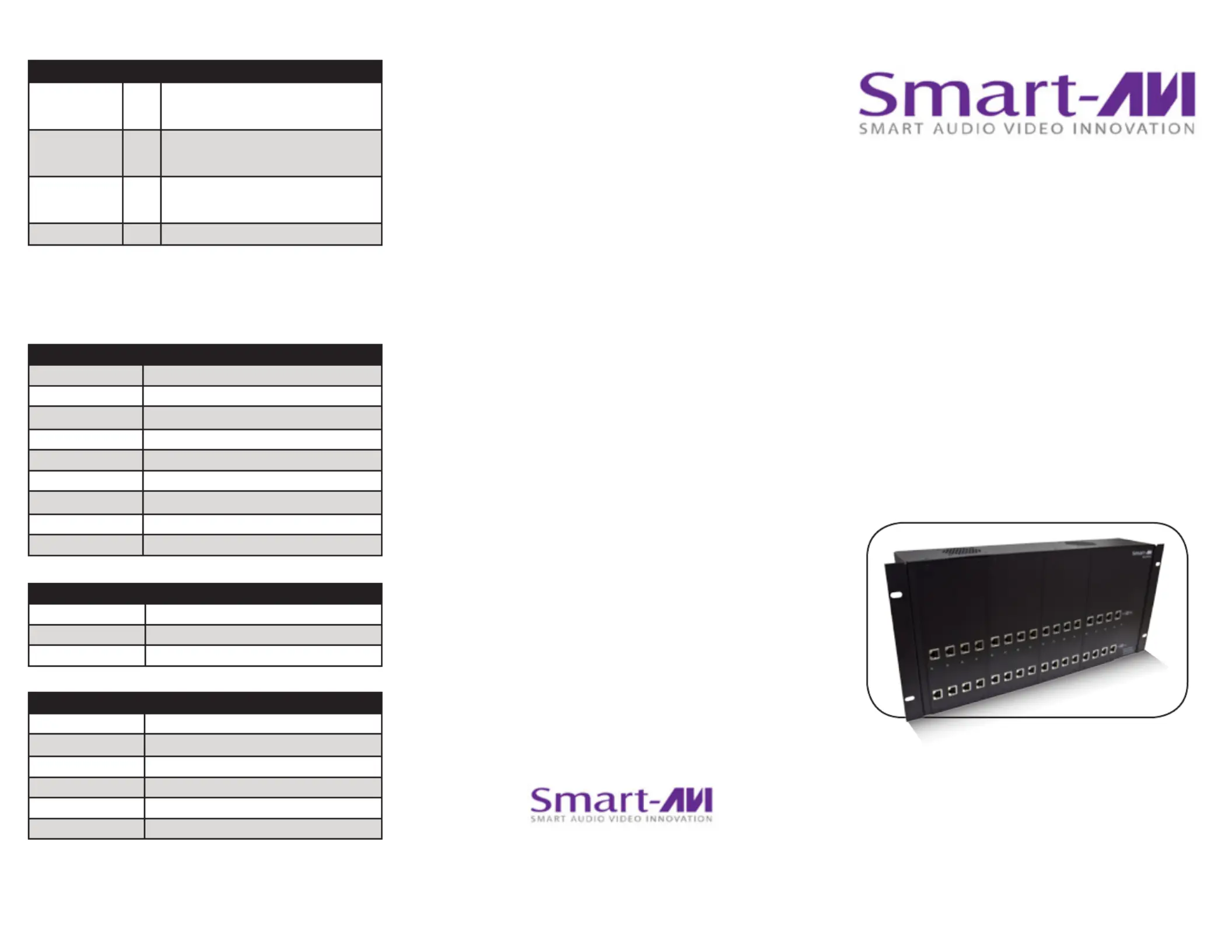

16-Port Dual DVI-D and USB 1.1
Extender up to 275 feet
over STP Cable
RK-DVX-Plus
16-Port Dual DVI-D and USB 1.1
Extender over STP
www.smartavi.com

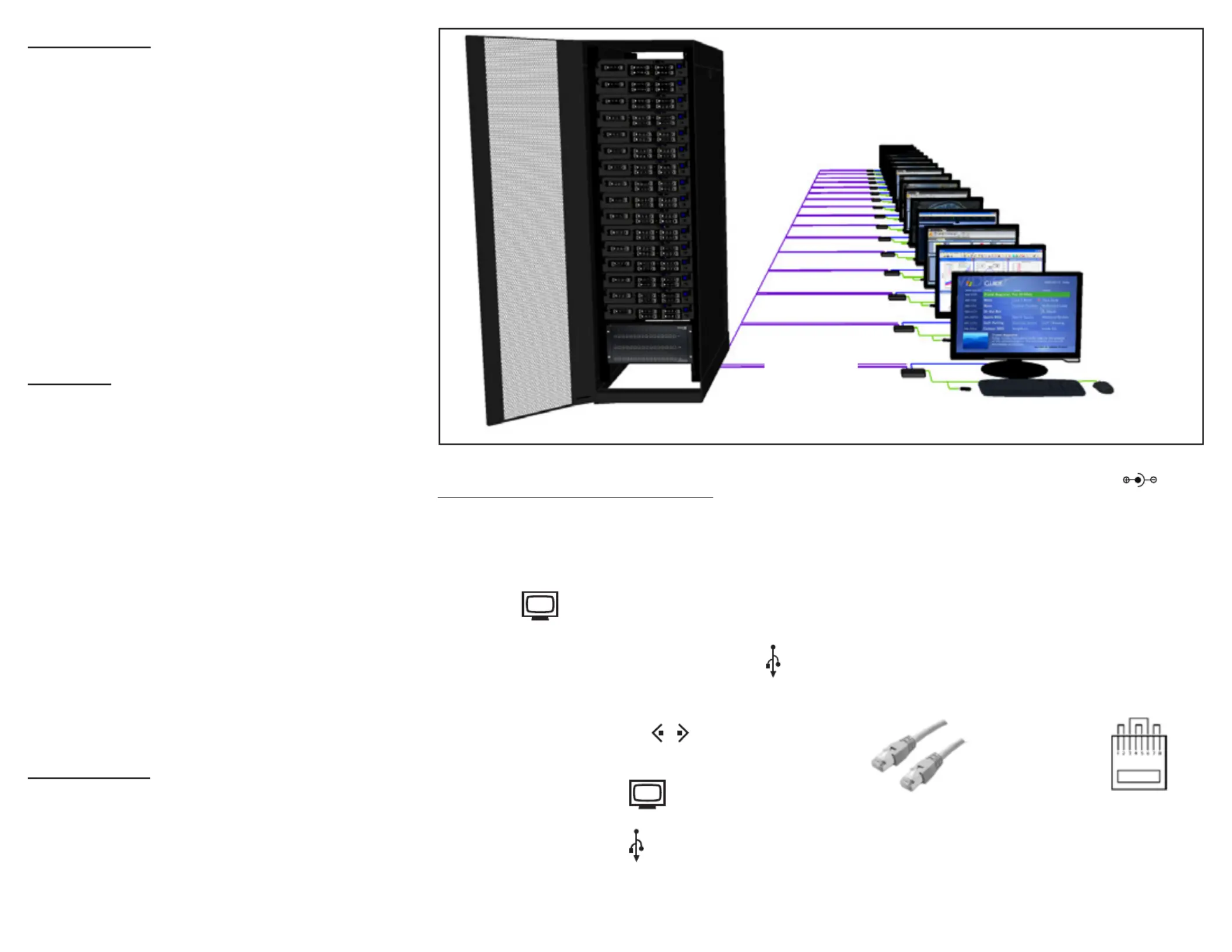

Installation
Manual
Technical Specications
*
What’s in the Box?
PART NO.QTYDESCRIPTION
RK-DVX-Plus-TX4SPowered Rack/Chassis with DVI/USB CAT6
Transmitter, 4 Card Package. Includes: [RK-
DVX-Plus-TX4 and CCPWR06]
RK-DVX-Plus-TX8SPowered Rack/Chassis with DVI/USB CAT6
Transmitter, 8 Card Package. Includes: [RK-
DVX-Plus-TX8 and CCPWR06]
RK-DVX-Plus-
TX16S
Powered Rack/Chassis with DVI/USB CAT6
Transmitter, 16 Card Package. Includes: [RK-
DVX-Plus-TX16 and CCPWR06]
User Manual1
VIDEO
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)16 DVI-D 29-pin female
Output Interface (RX)DVI-D 29-pin female
ResolutionUp to 1920 x 1200 @60Hz
DDC5 volts p-p(TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
USB
Signal TypeUSB 1.1 (Fully Transparent)
Input Interface (TX)16 x (1) USB Type B (Female)
Output Interface (RX)(4) USB Type A (Female)
OTHER
PowerInternal 110-240 VAC
Dimensions17 in W x 7 in H x 3.25 in D
Weight10 lb
Operating Temp.0-55 °C (32-131°F)
Storage Temp.-20-85 °C (-4-185 °F)
HumidityUp to 95%
*specications shown are for 16-Port option
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Produktspecifikationer
| Varumärke: | Smart-AVI |
| Kategori: | AV extender |
| Modell: | RK-DVX-PLUS-RX4S |
| LED-indikatorer: | Ja |
| Videolägen som stöds: | 480p, 720i, 720p, 1080i, 1080p |
| Maximal upplösning: | 1920 x 1200 pixlar |
| USB-version: | 1.1 |
| Grafikupplösningar som stöds: | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Modell: | AV-mottagare |
| Uteffekt: | 1 A |
| RJ-45 utgångsportar: | 16 |
| RJ-45 ingångsportar: | 16 |
| Driftspänning: | 5 V |
| Kabeltyper som stöds: | Cat6 |
| Produktens färg: | Svart |
| Antal USB-portar: | 16 |
| Produktstorlek (BxDxH): | 431.8 x 89 x 177.8 mm |
| AC-inspänning: | 90 - 240 V |
| Nätverksansluten (Ethernet): | Ja |
| Likströmsingång: | Ja |
| På / av-knapp: | Ja |
| Maximal överföringshastighet avstånd: | 84 m |
| Antal: | 1 |
| DVI-utgång portar: | 16 |
