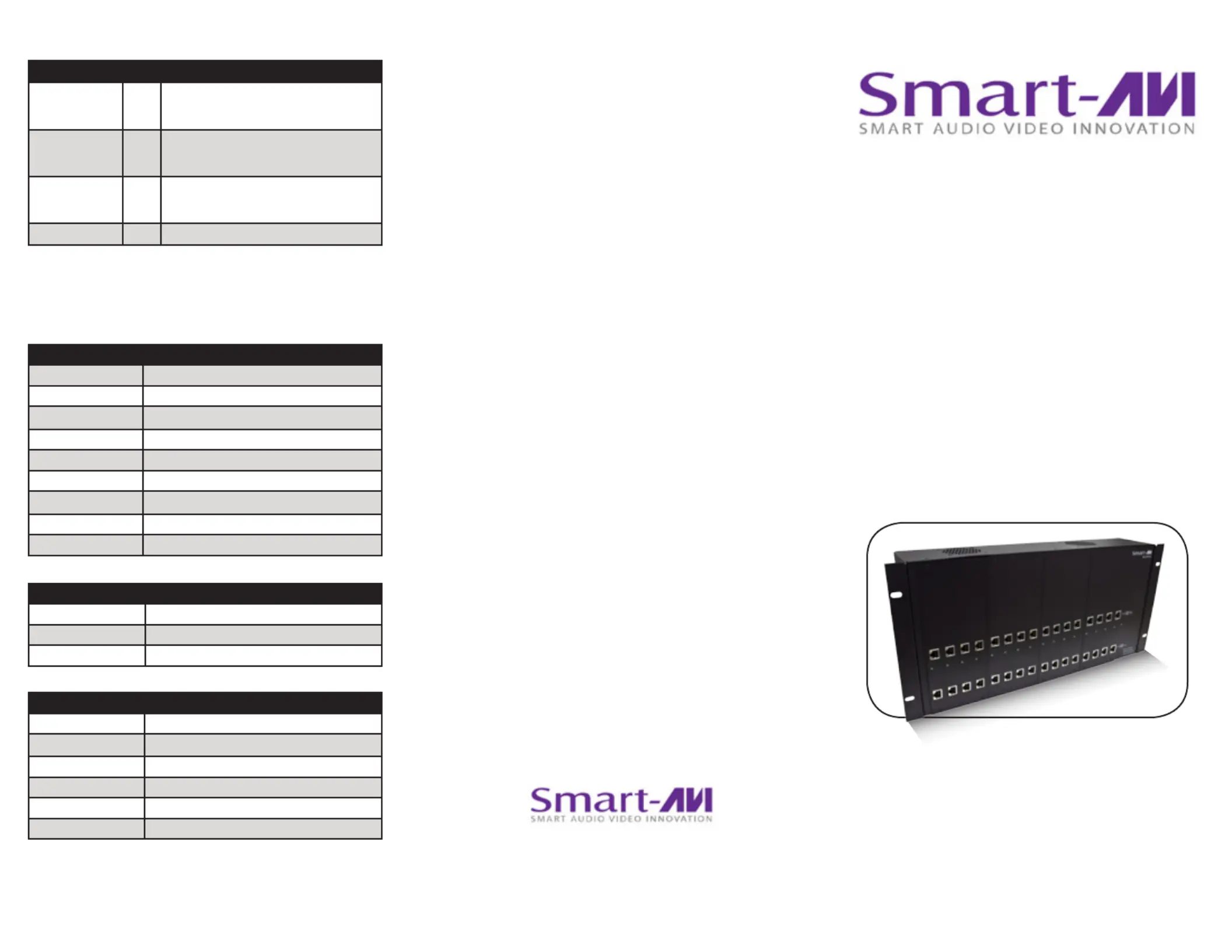

16-Port Dual DVI-D and USB 1.1

Extender up to 275 feet

over STP Cable

RK-DVX-Plus

16-Port Dual DVI-D and USB 1.1

Extender over STP

www.smartavi.com

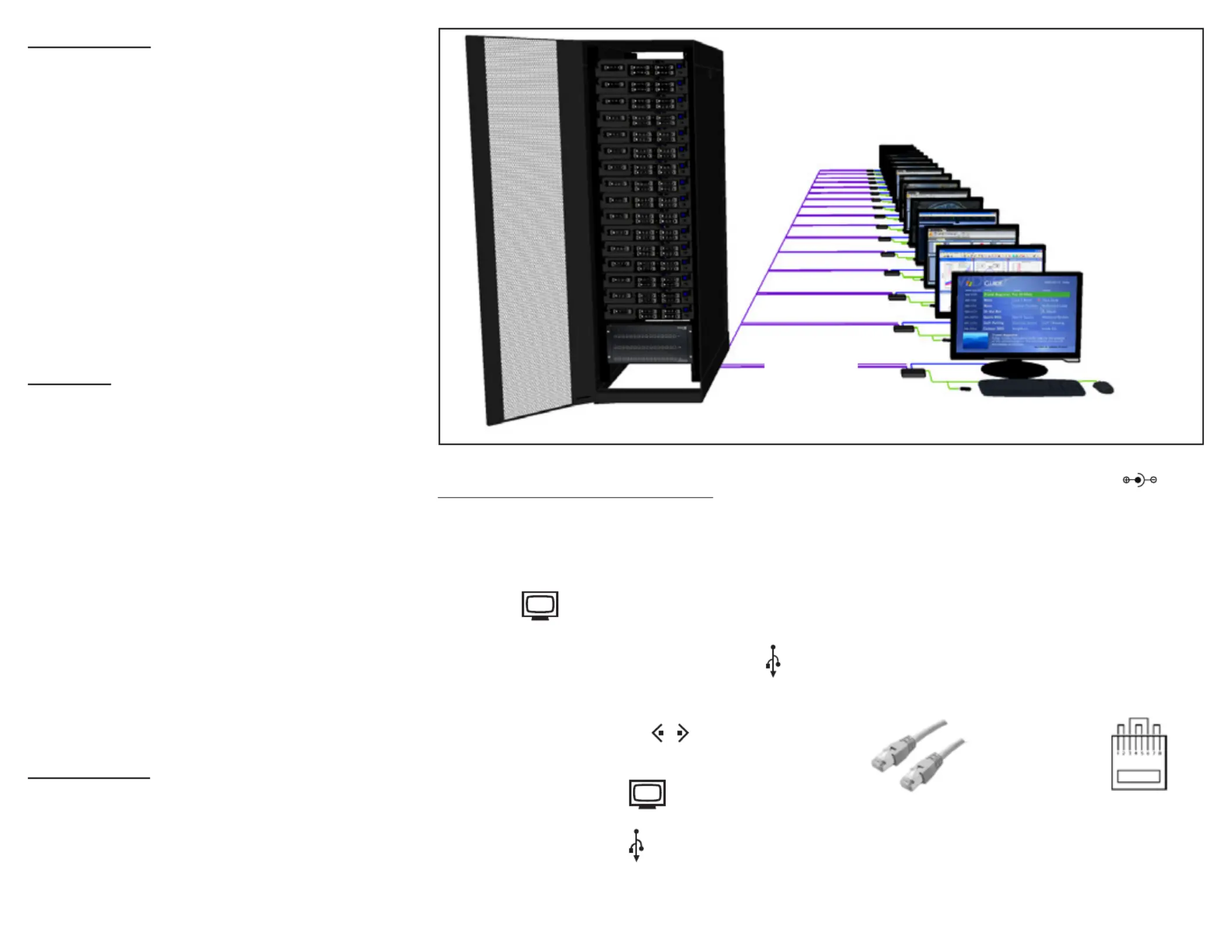

Installation

Manual

Technical Specications

*

What’s in the Box?

PART NO.QTYDESCRIPTION

RK-DVX-Plus-TX4SPowered Rack/Chassis with DVI/USB CAT6

Transmitter, 4 Card Package. Includes: [RK-

DVX-Plus-TX4 and CCPWR06]

RK-DVX-Plus-TX8SPowered Rack/Chassis with DVI/USB CAT6

Transmitter, 8 Card Package. Includes: [RK-

DVX-Plus-TX8 and CCPWR06]

RK-DVX-Plus-

TX16S

Powered Rack/Chassis with DVI/USB CAT6

Transmitter, 16 Card Package. Includes: [RK-

DVX-Plus-TX16 and CCPWR06]

User Manual1

VIDEO

FormatDVI-D Single Line

Maximum Pixel Clock165 MHz

Input Interface (TX)16 DVI-D 29-pin female

Output Interface (RX)DVI-D 29-pin female

ResolutionUp to 1920 x 1200 @60Hz

DDC5 volts p-p(TTL)

Input EqualizationAutomatic

Input Cable LengthUp to 20 ft.

Output Cable LengthUp to 20 ft.

USB

Signal TypeUSB 1.1 (Fully Transparent)

Input Interface (TX)16 x (1) USB Type B (Female)

Output Interface (RX)(4) USB Type A (Female)

OTHER

PowerInternal 110-240 VAC

Dimensions17 in W x 7 in H x 3.25 in D

Weight10 lb

Operating Temp.0-55 °C (32-131°F)

Storage Temp.-20-85 °C (-4-185 °F)

HumidityUp to 95%

*specications shown are for 16-Port option

© Copyright 2011 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com
