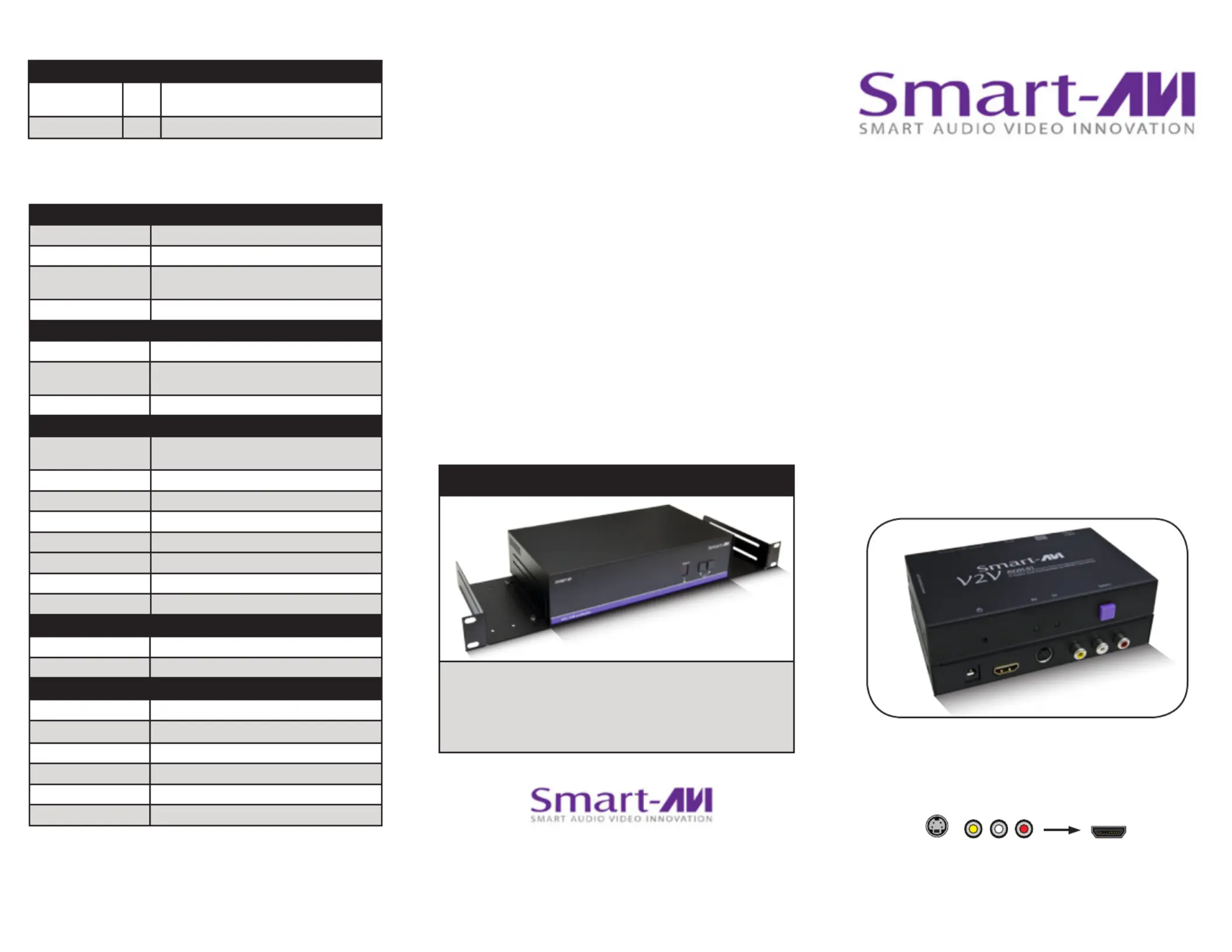

S-Video and Composite to HDMI
Converter
V2V-V2H-01A
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO.QTYDESCRIPTION
V2V-AV2H-011SVideo, Composite Video and Audio to HDMI
Converter
PS5VDC2A15 Volt 2 Amp Power Supply
Technical Specications
OTHER
PowerExternal 100-240 VAC/5VDC2A @10W
Dimensions5.25 in W x 3.5 in H x 1 in D
Weight0.71 lb
Operating Temp.0-55 °C (32-131°F)
Storage Temp.-20-85 °C (-4-185 °F)
HumidityUp to 95%
© Copyright 2012 SmartAVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
HDMI VIDEO
FormatHDMI 1.3b [Deep Color, xvYcc color space
supported]
DVI ComplianceSingle-link DVI-D 1.1
HDCP Compliance1.0/1.1
Video BandwidthSingle-link 340MHz [10.2Gbps]
Resolution480i,480p,720i,720p,1080i,1080p
Output Interface(1) HDMI[7.1ch audio & video]
ConnectorType A[19-pin female]
Maximum Distance25 ft.
COMPOSITE VIDEO
Input FormatNTSC/PAL/SECAM
Output FormatsNTSC/PAL/SECAM
Resolution800 x 600, 1024 x 768,
up to 1280 x 1024@60Hz
Input Interface(3) RCA Female
V2V FAMILY
AUDIO
Signal TypeStereo Unbalanced
Ouput InterfaceLeft/Right RCA (Female)
S-VIDEO
Input FormatNTSC/PAL/SECAM
Resolution800 x 600, 1024 x 768,
up to 1280 x 1024@60Hz
Input Interface(1) S-Video Female
Produktspecifikationer
| Varumärke: | Smart-AVI |
| Kategori: | AV extender |
| Modell: | V2V-AV2H-01 |
| Videolägen som stöds: | 1080i, 1080p, 480i, 480p, 720i, 720p |
| Maximal upplösning: | 1280 x 1024 pixlar |
| HDMI-version: | 1.3 |
| Grafikupplösningar som stöds: | 1024 x 768 (XGA), 800 x 600 (SVGA) |
| Modell: | Sändare och mottagare för AV-utrustning |
| Antal HDMI-utgångar: | 1 |
| Analogt signalformatsystem: | NTSC, PAL, SECAM |
| Strömförbrukning (vanlig): | 10 W |
| Temperatur vid drift: | 0 - 55 ° C |
| Temperaturintervall (förvaring): | -20 - 85 ° C |
| Intervall för relativ operativ luftfuktighet: | 0 - 95 % |
| AC-inspänning: | 100-240 V |
| Likströmsingång: | Ja |
| Antal S-Video-ingångar: | 1 |
| DVI-utgång portar: | 1 |
