page 1 / 6 sonel.com
Underground detective
Features
The LKZ locator set consists ofa LKN transmitter and LKD detector. It allows for location, identication and tracking
ofthe route ofobjects buried in the ground. It allows to trace:
• power cords and cables, control cables, telecommunications cables,
• underground elements oflightning protection systems, cathodic protection systems,
• water and sewage systems,
• fuel transmission systems (pipelines, gas pipelines)
• heating systems and pre-insulated pipes.
The sets of LKZ series are an invaluable support in earthworks carried out for various industries, including energy, instal-
lation, construction, railway, telecommunications, water and sanitary, heating, geodetic and many others.
LKN-2500 transmitter injects a locating signal into an underground object. placed along the object LKD-2500 detector
traces this signal along the object. The information about position of the traced object is displayed on the Sonel LKZ
Mobile app which is connected with the detector. Determination of the object’s route is possible based on observation
of compass readings and the level of the detected signal.
The system has the ability to trace cables and record routes via the mobile application. Such les can be exported and
shared with other users – including those who do not have the LKN-2500 / LKD-2500 device.
The system is capable of operating in passive mode (without the use of the LKN-2500 transmitter) and active mode
(with the use of the LKN-2500 transmitter). The active mode allows to introduce the signal in three different methods:
• galvanic – injects tracing signal into the object directly, through crocodile clips and test leads,
• clamp – injects tracing signal into the object through an inductive clamp,
• inductive – injects tracing signal into the object inductively, using the instrument’s internal antenna.
Cable and underground infrastructure locator
LKZ-2500
0 |index: WMGBLKZ2500
ex: WMGBLKZ2500START
ndex: WMGBLKZ2500LITE
0 | index: WMGBLKD2500
LKN-2500
transmitter
LKD-2500
detector
page 2 / 6 sonel.com
LKZ-2500 Lite
includes transmitter, detector and short handle
LKZ-2500
includes transmitter, detector, control panel
andlonghandle
LKZ-2500 Start
includes transmitter, detector andlonghandle
LKD-2500
includes detector and short handle
transmitter short handledetector long handlecontrol panel
Choose the best set for your needs
page 3 / 6 sonel.com

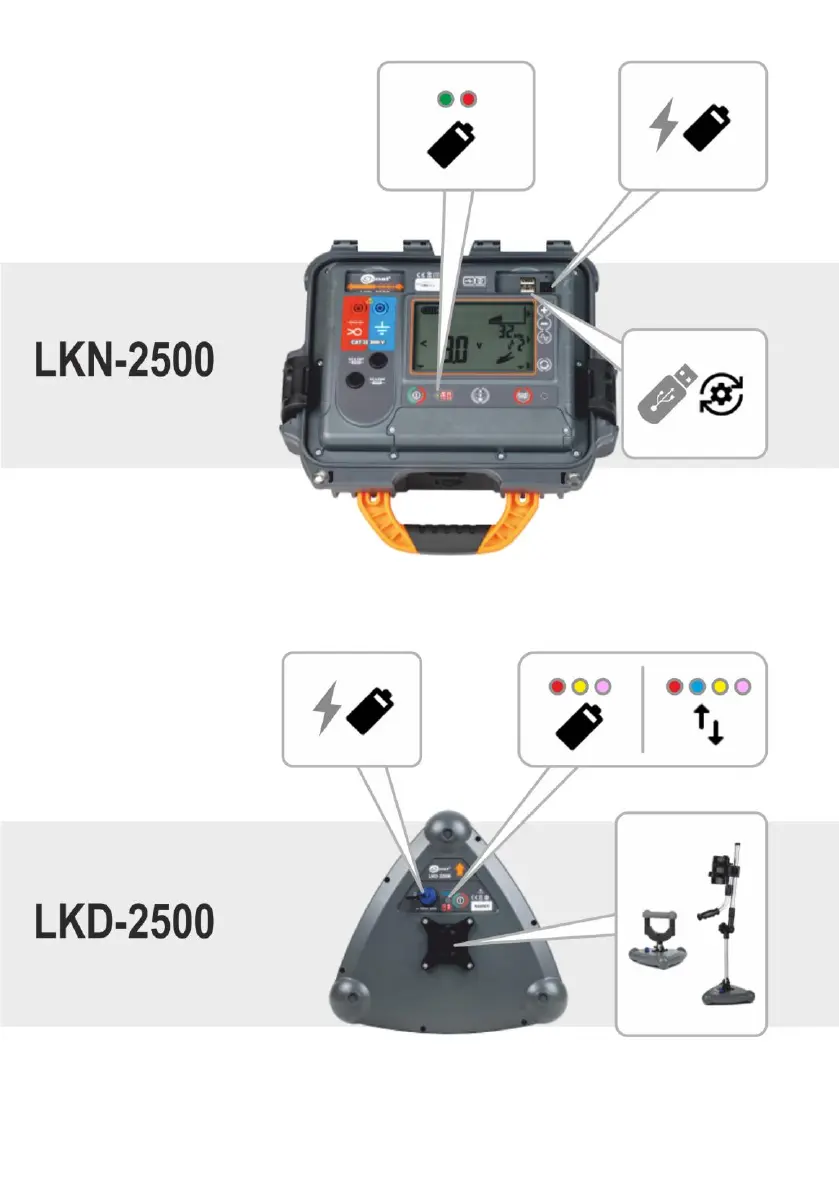

LKN-2500 transmitter
• Operation in direct galvanic or inductive connection
mode – internal transmitting antenna
• Compatible with transmitting clamps
• Rugged housing
LKD-2500 detector
• Active mode
» work with LKN-2500 transmitter at the frequencies of
8 kHz, 32kHz (Signal mode)
• Passive mode – work at the frequencies of:
» 50 Hz, 60 Hz (Power mode)
» 2...65 kHz (Radio mode)
Sonel LKZ Mobile
The application works with Sonel LKD-2500 detector.
It enables tracing of objects, recording of routes in the
memory of the mobile device along with GPS positions
of waypoints and additional readings.
The application additionally enables:
• live positioning preview,
• measuring the distance to a specic waypoint,
• export of routes to other mobile devices,
• reading routes from the mobile device’s memory,
• preview of all recorded parameters,
• merging routes,
• adding notes to routes and measurement points.
