Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
WarningWarning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
+100 V
+70.7 V
Common
Constant
Voltage
Conection
Low
Impedance
Connection
Audio Isolation
Transformer
AC-P350-XFMR
40 Vrms Max.
+
For use with PhaseTech P350 Amplier
The AC-P350-XFMR allows the PhaseTech P350 low-impedance amplier
to be converted to a constant-voltage amplier with a 70.7V or 100V
speaker output for distributed audio systems.
Equipment Rack Mounting
The AC-P350-XFMR can also be mounted in an equipment/server rack.
The mounting holes on the chassis's ange accept standard rack mount
screws and align with standard rack rail hole spacing.
70.7V / 100V loudspeakers wired
in parallel (daisy-chained)
PhaseTech P350 Amplier
+++
———
INPUT
12V TRIGGER
UNBALANCEDBALANCED
OUTPUT
TRIGGER
MODE
INOUT
MUSIC
ON
12V
4-16 OHMS
INPUT
VOLTAGE
POWER
ONOFF
115V 60 Hz/ 230V 50 Hz
AC INPUT 600W MAX
PUSH
115V

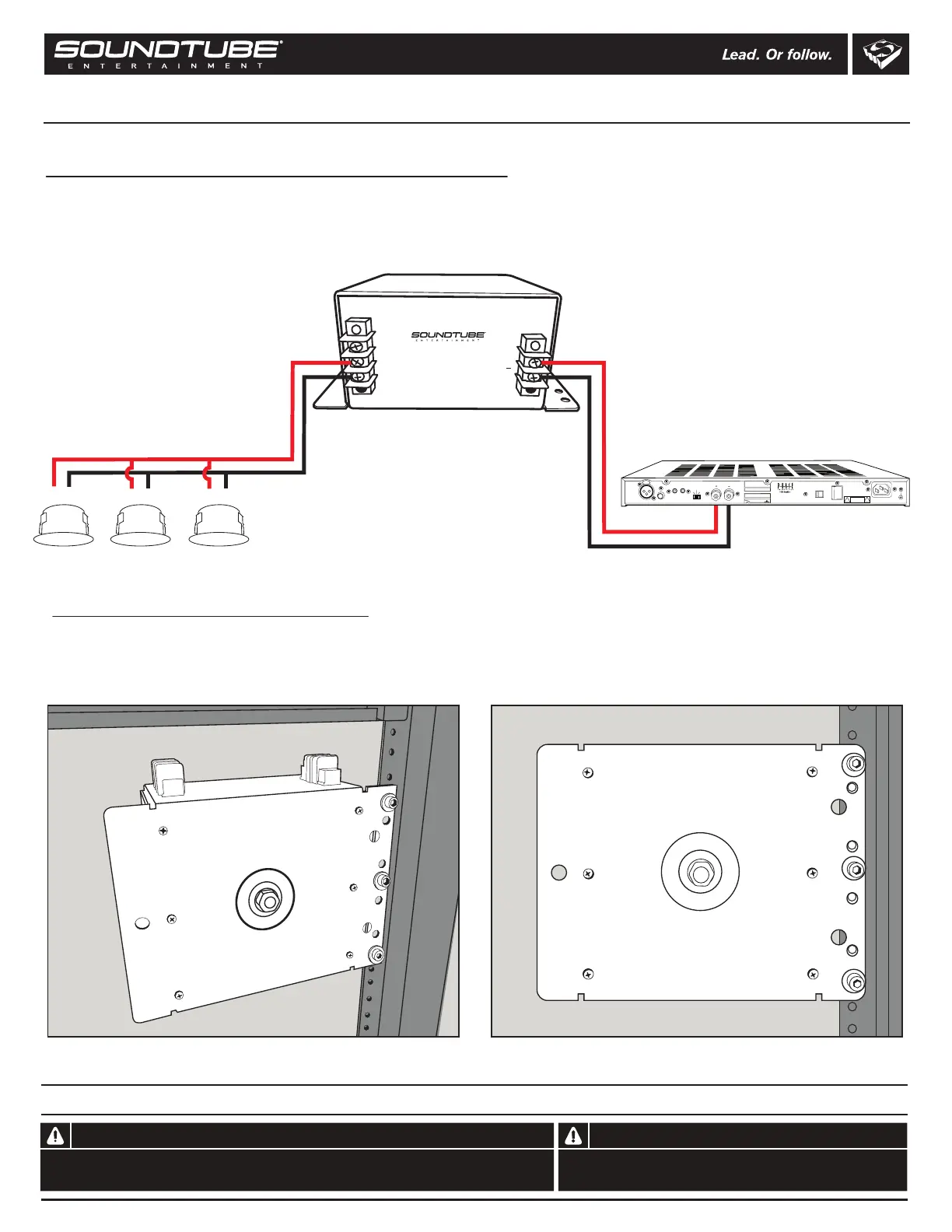

AC-P350-XFMR Installation Instructions
