Power External Controller LED Light Speaker
Contact closure = Green/White
Contact closure = Green
12 V trigger = Blue/White
LED control = Orange/White
LED control = Orange
Left in = White
Left in = Green
Right in = Red
Right in = Black
Power = Brown/White
Power ground = Brown
Cat 5 Wiring
All signal and control wires are located in the signal/hanging cable provided
with the FP unit speaker wires. A Cat 5 cable (blue or gray shield) contains the control and power
wires; audio wires are individual 16-gauge wires in the bundle.
Wiring Instructions

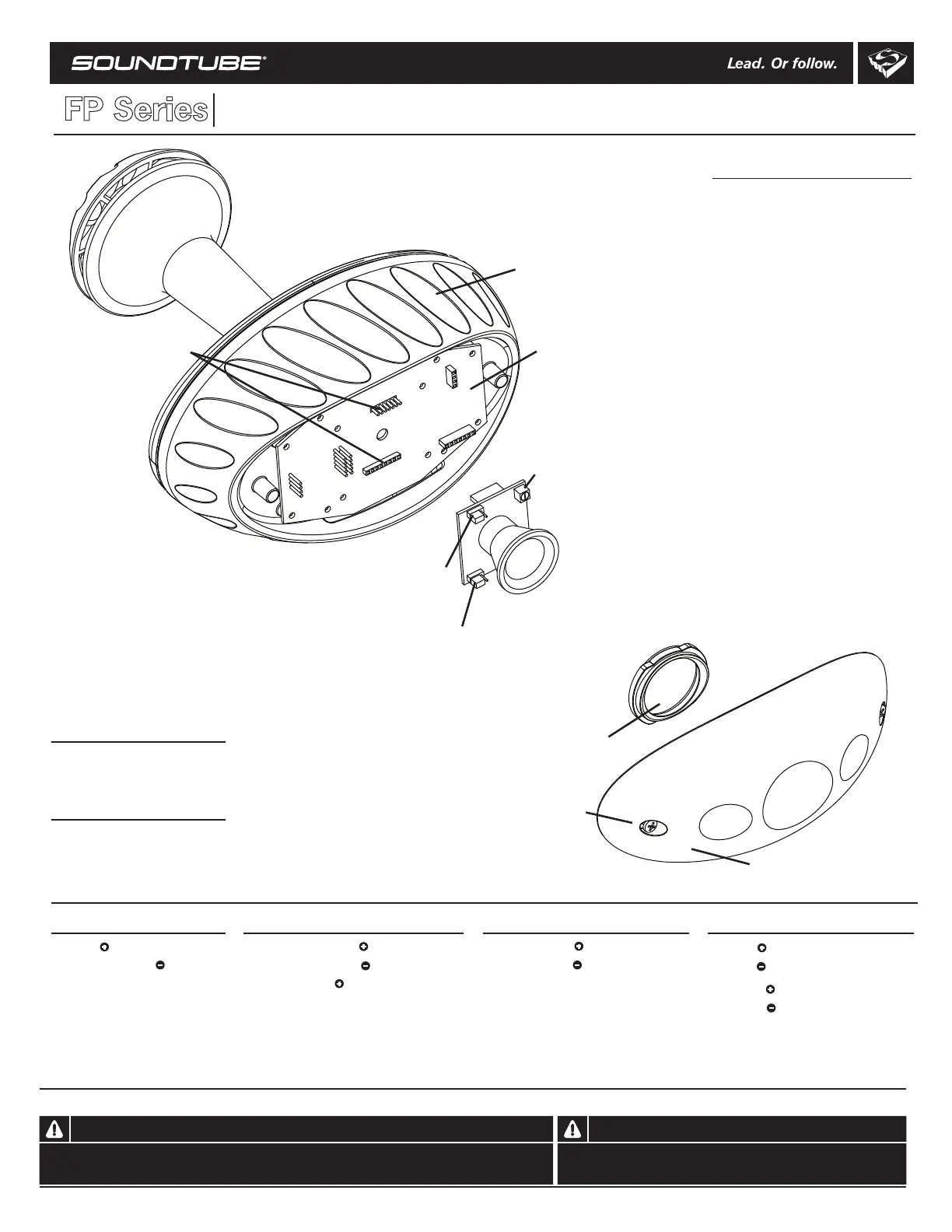

1 FP-Light module
2 Jumpers
Contents
FP pod [2]
Brightness control [6]
Pod cover [1]
Light module
Main electrical board
LED lamp baffle
(ships with light module only)
FP modules ship pre-installed
from the factory.
Other FP Series optional
modules include:
1. FP-Motion
All modules require a power source.
An optional 15-volt source is
available from SoundTube
(Model number: AC-PS-1530)
Jumper 4 (J4) external
brightness control [4]
Light connection
Jumper 2 (J2) motion
sensor control [5]
Pod cover screws [3]
FP Series
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning
© 2010 SoundTube Entertainment, Inc. All rights reserved. PN INS-FP-LIGHT Rev04.02.10
Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
1.435.647.9555 | 800.647.TUBE www.soundtube.com
435.647.9555
| 800.647.TUBE |
www.soundtube.com
Install Instructions For:
FP-Light
FP Series
