Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
WarningWarning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Security screw
Surface-mount bracket
Note: Speaker ships separately
Forged eyebolt
Speaker brackets
Mounting screws
Box contents: Surface-mount kit
1 Surface-mount bracket
2 Speaker brackets
8 Fasteners (1/2" wood screws)
1 Security screw
For wiring instructions, consult SM1001p installation instructions.
Alternate optional accessory is a corner mount bracket (AC-SM1001p-C).
© 2010 SoundTube Entertainment, Inc. All rights reserved. PN SM1001p-S Rev 07.13.10
3b. Downward aiming:
Mount speaker brackets to
top of speaker with tabs
facing front of speaker. Use
included 1/2 inch wood
screws.
5. Connect wires and set
gain and filters as described
in the SM1001p installation
instructions.
1. Unpack subwoofer and
unscrew 4 feet. Remove
screws from rubber plugs
and replace screws to fill
holes.
4. For a safety cable
attachment, screw the
forged eye bolt into the
1/4-20 inserts on the back
of the speaker. Attach
included safety cable from
forged eyebolt to secure
mounting point on
structure. Installer to supply
fastener to structure.
2. Choose a secure
mounting surface with
sufficient strength to reliably
hold the speaker.
Surface-mount bracket must
be mounted at least 3
inches below ceiling, beam
or other top structure.
Bracket accepts 1/4 inch lag
bolts (installer to supply
fasteners). Be sure
mounting tabs point up.
3a. Outward aiming: Mount
speaker brackets to back of
speaker with tabs down.
Use included 1/2 inch wood
screws.
7. Install security screw.
8. Done!
6. Slide speaker onto
pre-mounted bracket.

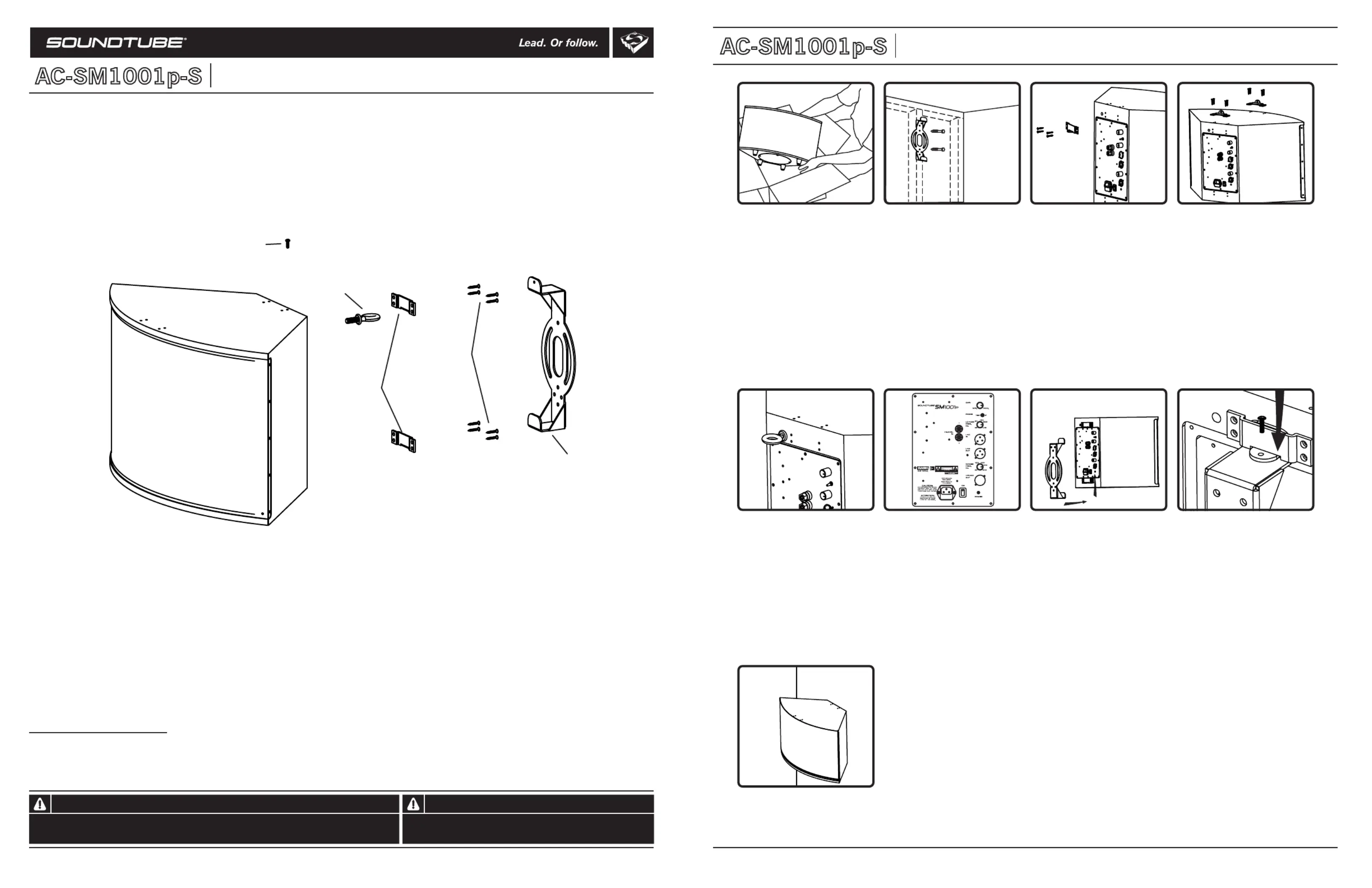

AC-SM1001p-S
Install Instructions For:
SM1001p Surface Mount Bracket
1.435.647.9555
|| 800.647.TUBE
www.soundtube.com
Install Instructions For:
SM1001p Surface Mount Bracket
AC-SM1001p-S
Produktspecifikationer
| Varumärke: | SoundTube |
| Kategori: | Inte kategoriserad |
| Modell: | AC-SM1001p-S |
| Bredd: | 129.54 mm |
| Höjd: | 286.51 mm |
| Modell: | Basplatta |
| Justerbar: | Nej |
| Kompatibilitet: | SM1001 |
| Produktens färg: | Svart |
| Antal per förpackning: | 1 styck |
