Sida 1/2

RS4-EZ, RS400i, RS500i, HP590i, RS600i, HP690i, RS800i, RS1201i, HP890i, RS1001i-II, HP129a,

& HP1290i speakers

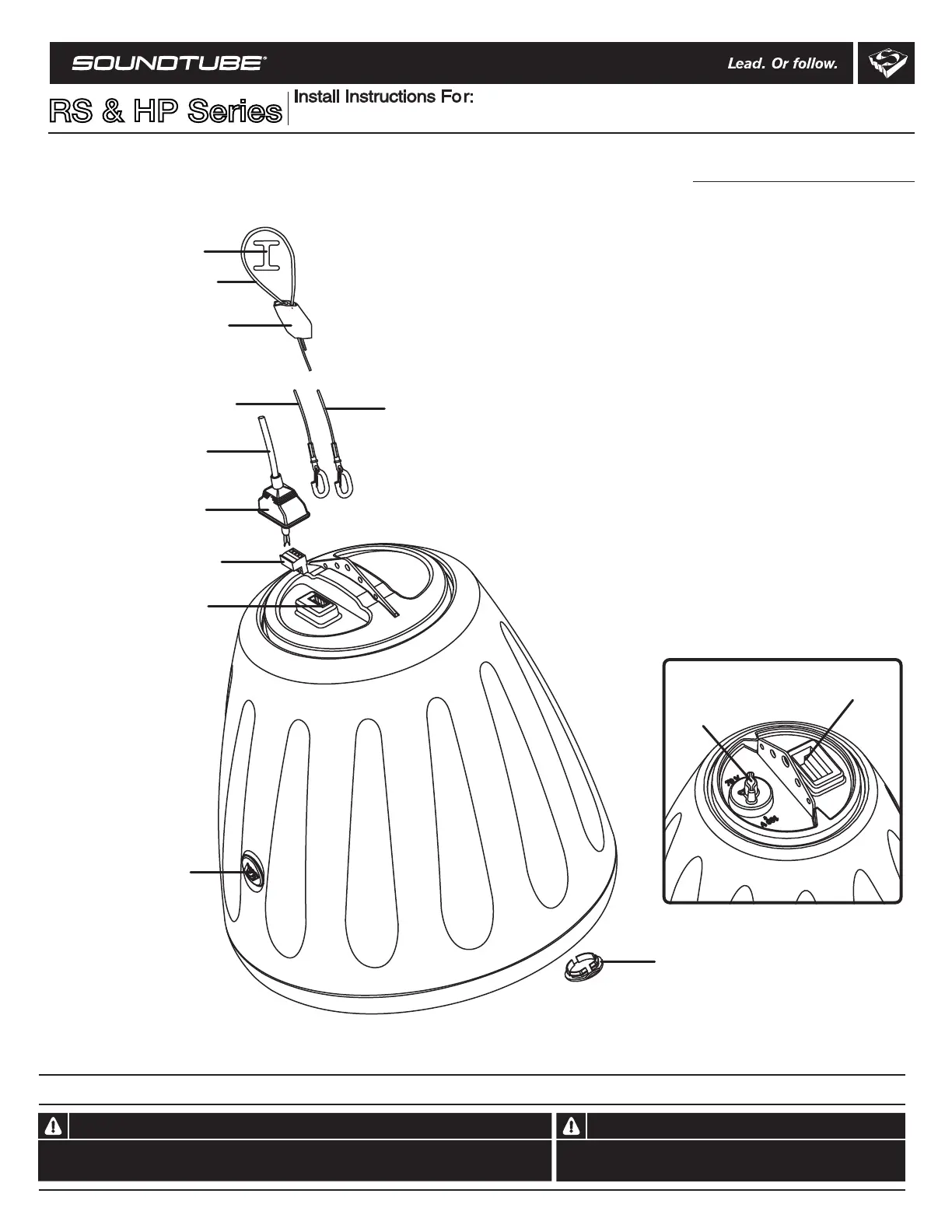

Box contents

1 Speaker

2 SpeedClamps™

1 Release key (small hex wrench)

1 Hanging cable

1 Safety cable

1 Terminal weather boot

1 Euroblock connector

1 Grille-mounted tap switch cover

4 Zip ties

Safety cable with clip

Terminal weather boot

Signal wire

Euroblock connector

Surface-mount

bracket insert

Euroblock jack

Hanging cable with clip

Hanging or safety cable

Secure anchor point

SpeedClamp™

Grille-mounted

tap switch cover

(except RS4-EZ)

RS4-EZ & RS400i tap location

Tap switch

Euroblock jack

RS400i, RS500i, RS600i, RS800i, RS1001i-II, HP690i and HP890i - UL listed 1480

1.435.647.9555

800.647.TUBE

www.soundtube.com

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

RS & HP Series

Speaker 1

Speaker 2

Source

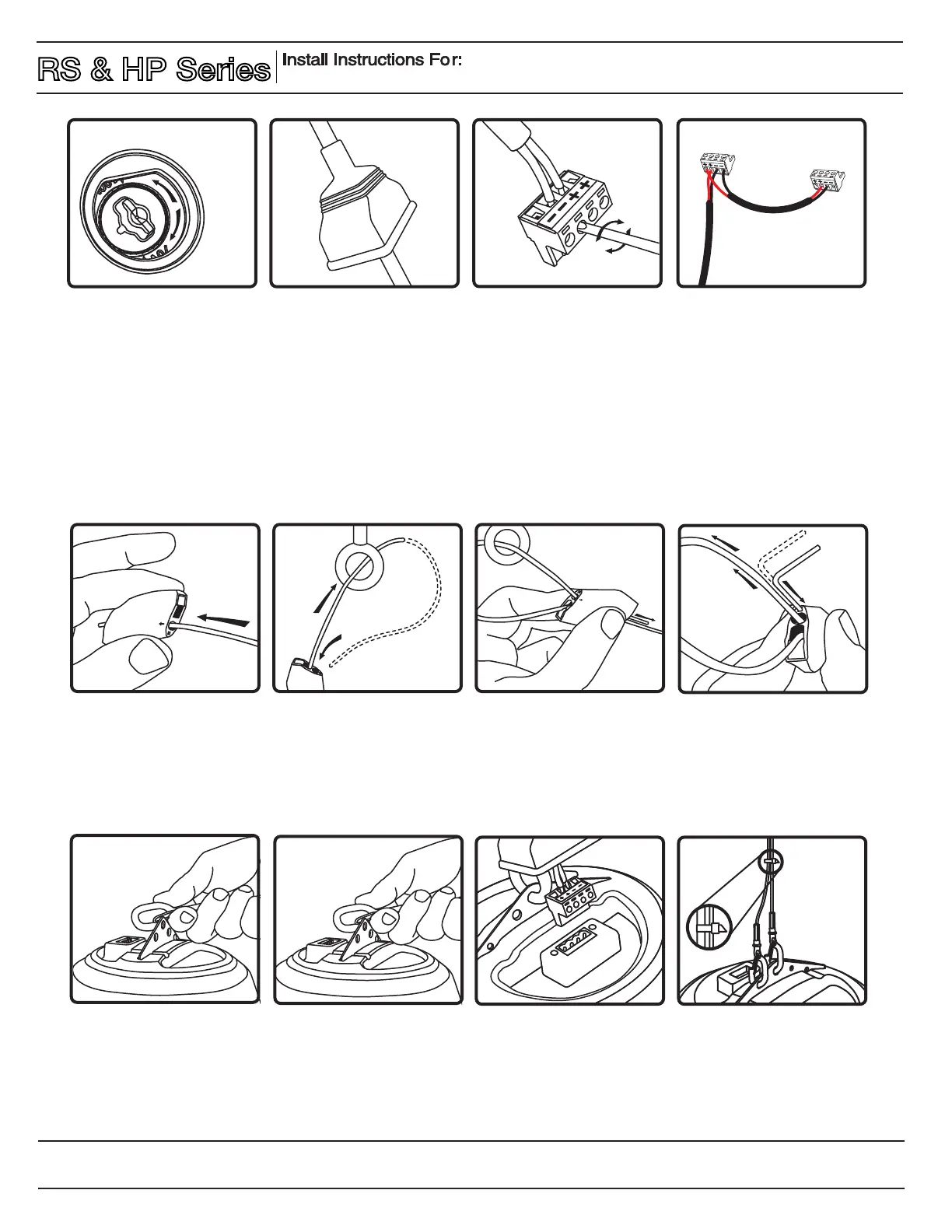

1. Select the tap position by

removing the rubber plug on

grille to access rotary switch.

Switch is preset to maximum

tap setting in 70.7 V mode.

Select desired setting and

reinsert rubber plug. Note: The

grille-mounted tap switch

cover is keyed; be sure flat

edge of plug lines up with flat

edge of hole in grille.

2. Slip terminal weather

boot over signal wire. For

environmental applications,

put RTV silicone around

nipple and base when

installation is complete.

3. Connect signal wire to

4-pin Euroblock plug. Tighten

unused terminal screws. Use

inside positive and negative

inputs for either voice coil or

distributed systems. For daisy

chaining, use outside positive

and negative terminals.

9. Attach hanging cable to

the center hole in the

speaker hanging bracket.

11. Insert 4-pin Euroblock

plug into Euroblock jack on

rear of speaker. Connectors

are keyed for polarity.

12. Use zip or twist-lock ties

to secure safety cable & signal

wire to main hanging cables.

Cable cover available for

asthetic applications (SLT-10).

5. Thread hanging or safety

cable through SpeedClamp™

mechanisms as shown.

7. Thread cable end(s)

through SpeedClamp™

mechanisms as shown.

6. Attach the hanging cable

by securing it and safety

cable to structure as shown.

10. Attach the safety cable to

one of the secondary holes in

the hanging bracket.

8. Adjust speaker hanging

height with SpeedClamp™

mechanism. Pull to tighten &

insert release key (small hex

wrench) into SpeedClamp ™

as shown to loosen or adjust.

SoundTube also provides optional surface mount brackets for both the RS and HP lines of products.

Installation instructions for these accessories are included with specific accessory packaging.

4. When daisy chaining, wire

the outside terminals to the

inside terminals of the next

speaker. This step only applies

to tap settings using the

transformer and not when the

speaker is used on bypass.

RS4-EZ, RS400i, RS500i, HP590i, RS600i, HP690i, RS800i, HP890i, RS1001i-II, HP129a, & HP1290i speakers

RS & HP Series

Produktspecifikationer

Varumärke:	SoundTube
Kategori:	högtalare
Modell:	HP129A
Vikt:	18210 g
Höjd:	565.15 mm
Förpackningens bredd:	533.4 mm
Diameter:	457.2 mm
Certifiering:	CE, RoHS, UL1480A, UL2239
Rekommenderad användning:	Hem
Impedans:	8 Ω
Ljudutgångskanaler:	- kanaler
Högtalarplacering:	Ceiling-monterbar
Bashögtalare:	Ja
Känslighet:	97 dB
Produktens färg:	Svart
Förpackningstyp:	Låda
Låddjup:	533.4 mm
Antal per förpackning:	1 styck
Uteffekt (RMS):	150 W
diskanthögtalare:	Ja
Material, hölje:	Akrylnitrilbutadienstyren (ABS)
Frekvensområde:	73 - 19000 hz
Anslutningsteknologi:	Kabel
Woofer diameter:	304.8 mm
Woofer diameter (imperial):	12 "
Högtalarlåda:	Med portar
Antal woofer-drivenheter:	1
Disktanthögtalare diameter:	1.375 "
Antal tweeter förare:	1
Övergångsfrekvens:	2200 hz
