Install Instructions For:

1.435.647.9555

800.647.TUBE

www.soundtube.com

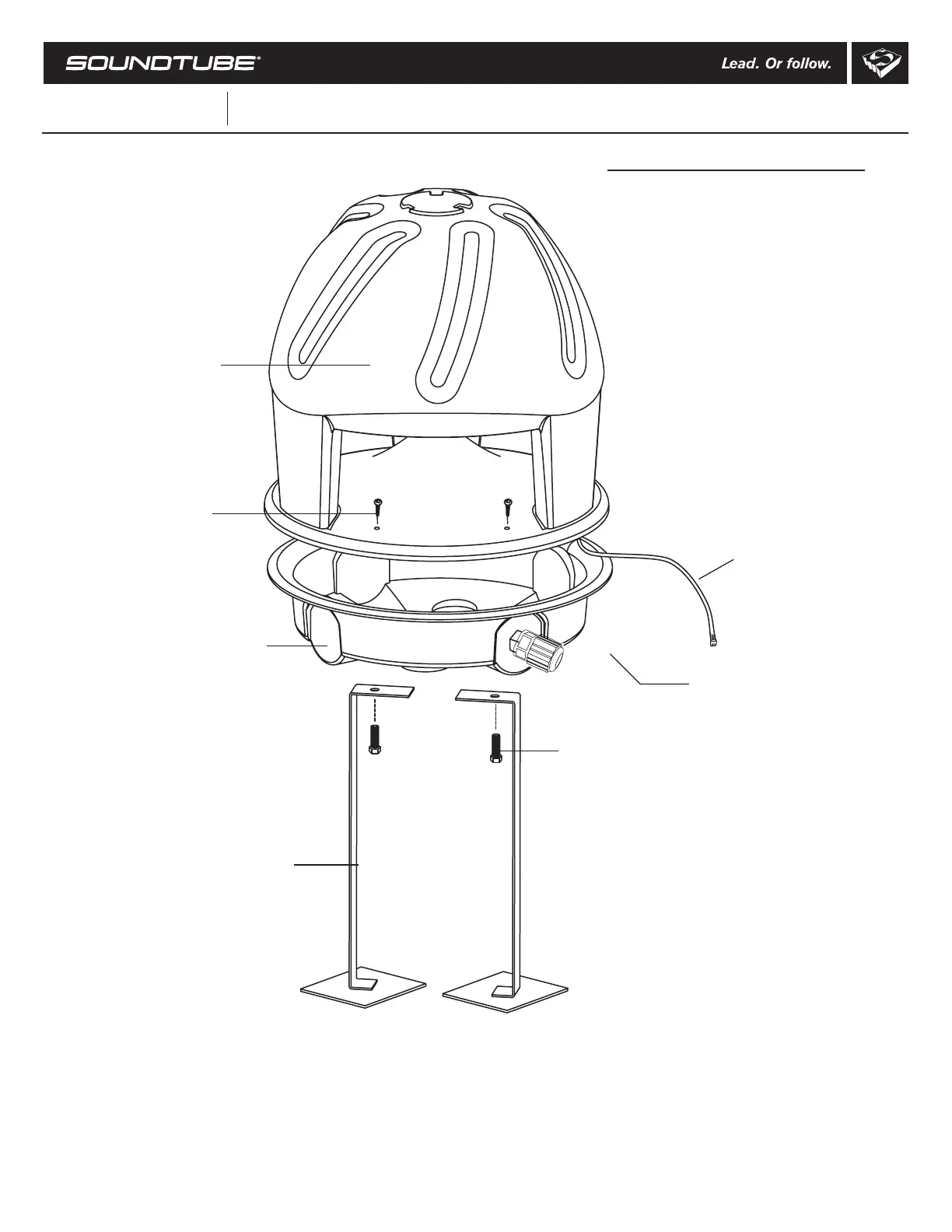

IPD-XT850

#8 Stainless-steel

square-drive screw (x6)

Speaker enclosure

Liquid-tight RJ45 coupling

Speaker base

Pre-installed Cat5 Cable

RJ45 connector

.75" 1/4-20 Stainless-steel bolt

In-ground/security bracket

Box contents

1 In-ground speaker

1 in-ground/security bracket (2 pieces)

1 Liquid-tight RJ45 coupling compression tting

1 Square drive bit

6 #8 stainless-steel square-drive screws

2 .75" 1/4-20 Stainless-steel bolts

IPD-XT850

Install Instructions For:

1.435.647.9555

800.647.TUBE

www.soundtube.com

SoundTube speakers must b e installed b y a p r ofessional audio

installer/contractor. For safety and for optimum audio performance,

installer must follow all directions issued by SoundTube Entertainment.

Warning

IPD-XT850

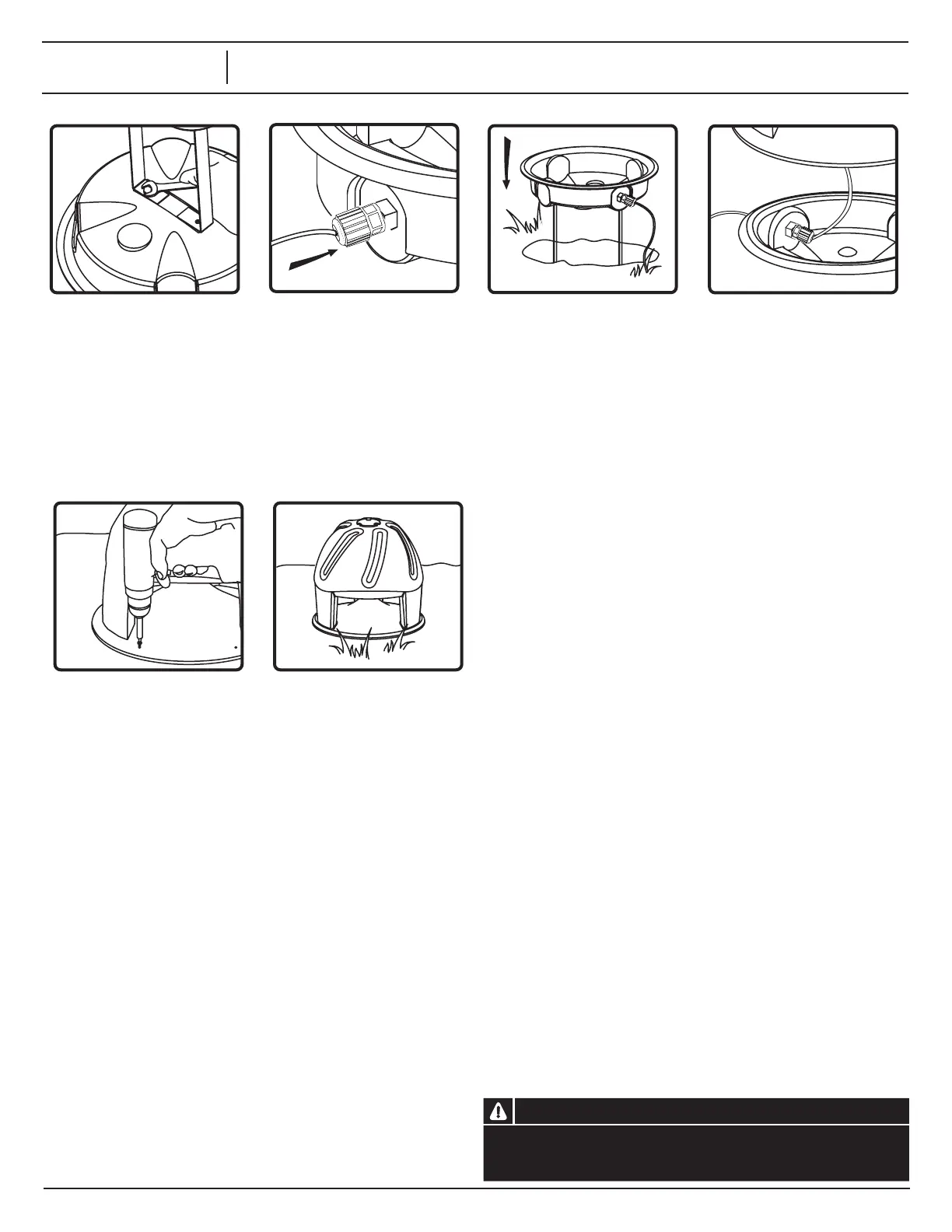

1. Attach inground/security

brackets to speaker base

using stainless-steel bolts.

4. Plug Cat5 cables into

coupling. No wire nuts

needed. Tighten tting to

seal.

2. Field route Cat5 cable

from the switch to each

IPD-XT850, direct burial

cable or use of conduit is

required. The cable may

need to be terminated after

routing the cable through

the compression tting of

the liquid-tight RJ45 coupling.

Tighten tting to seal.

3. Dig a hole that is 15”

wide and 5” deep. Place

speaker base ino the hole in

the ground with the top rim

of the base at ground level.

Back-ll dirt into hole. For

added security, cement

security brackets into ground.

5. Set speaker enclosure on

speaker base. Use tamper-

resistant stainless-steel

screws to attach

speaker to base (driver

tip and screws provided).

6. Done!

IPD-XT850

Software and ﬁrmare updates for SoundTube Dante-enabled speakers can be found on our website. Go to

www.mseaudio.com/downloads and navigate to SoundTube and download the necessary software for your IPD-XT850

speaker.

Additional Information

Produktspecifikationer

Varumärke:	SoundTube
Kategori:	högtalare
Modell:	IPD-XT850
Vikt:	9800 g
Höjd:	482.6 mm
Förpackningens bredd:	412.75 mm
Diameter:	359.9 mm
Certifiering:	RoHS, UL60065
Lämplig för utomhusbruk:	Ja
Ljudutgångskanaler:	- kanaler
Högtalarplacering:	Golv
Bashögtalare:	Ja
Produktens färg:	Grön
Förpackningstyp:	Låda
Låddjup:	412.75 mm
Antal per förpackning:	1 styck
diskanthögtalare:	Ja
Material, hölje:	Polyeten
Anslutningsteknologi:	Kabel
Strömkälla av typen:	AC
Högtalartyp:	2-vägs
Övergångsfrekvens:	3000 hz
