MM43-BGM & MM32-EZ

Tap location

Box contents

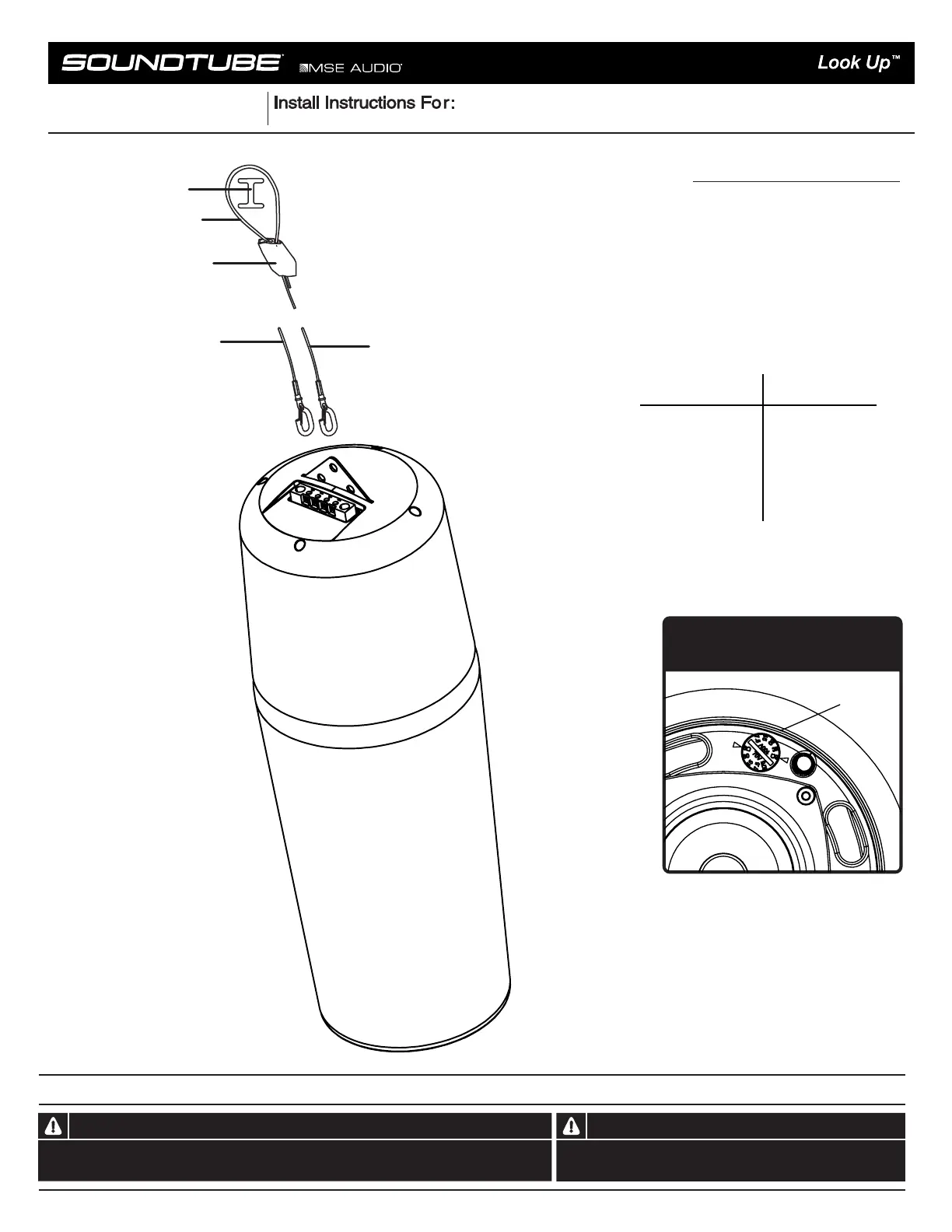

1 Speaker

2 SpeedClamps™

1 Release key (small hex wrench)

1 Hanging cable

1 Safety cable

4 Zip ties

Tap switch

UL Listed 1480A

1.855.663.5600

www.soundtube.com

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

MM43-BGM and MM32-EZ speakers

Mighty Mite

™

byby

Safety cable with clip

Hanging cable with clip

Hanging or safety cable

Secure anchor point

SpeedClamp™

Transformer Taps

70.7 V

30 W

15 W

7.5 W

3.75 W

Output

98.5 dB

95.5 dB

92.5 dB

89.5 dB

100 V

30 W

15 W

7.5 W

Output

98.5 dB

95.5 dB

92.5 dB

10. Use zip or twist-lock ties

to secure safety cable & signal

wire to main hanging cables.

Cable cover available for

asthetic applications (SLT-10).

7. Adjust speaker hanging

height with SpeedClamp™

mechanism. Pull to tighten &

insert release key (small hex

wrench) into SpeedClamp ™

as shown to loosen or adjust.

6. Thread cable end(s)

through SpeedClamp™

mechanisms as shown.

5. Attach the hanging cable

by securing it and the safety

cable to structure as shown.

8. Attach hanging cable to

the center hole in the

speaker hanging bracket.

MM43-BGM and MM32-EZ speakers

Mighty Mite

™

byby

1.855.663.5600

www.soundtube.com

9. Attach the safety cable to

one of the secondary holes in

the hanging bracket.

4. Thread hanging or safety

cable through SpeedClamp™

mechanisms as shown.

2. Connect signal wire to

screw-down terminal block.

Tighten unused terminal

screws. Use inside positive

and negative inputs for

either voice coil or

distributed systems.

Source

3. When daisy chaining, wire

the outside terminals to the

inside terminals of the next

speaker. This step only applies

to tap settings using the

transformer and not when the

speaker is used on bypass.

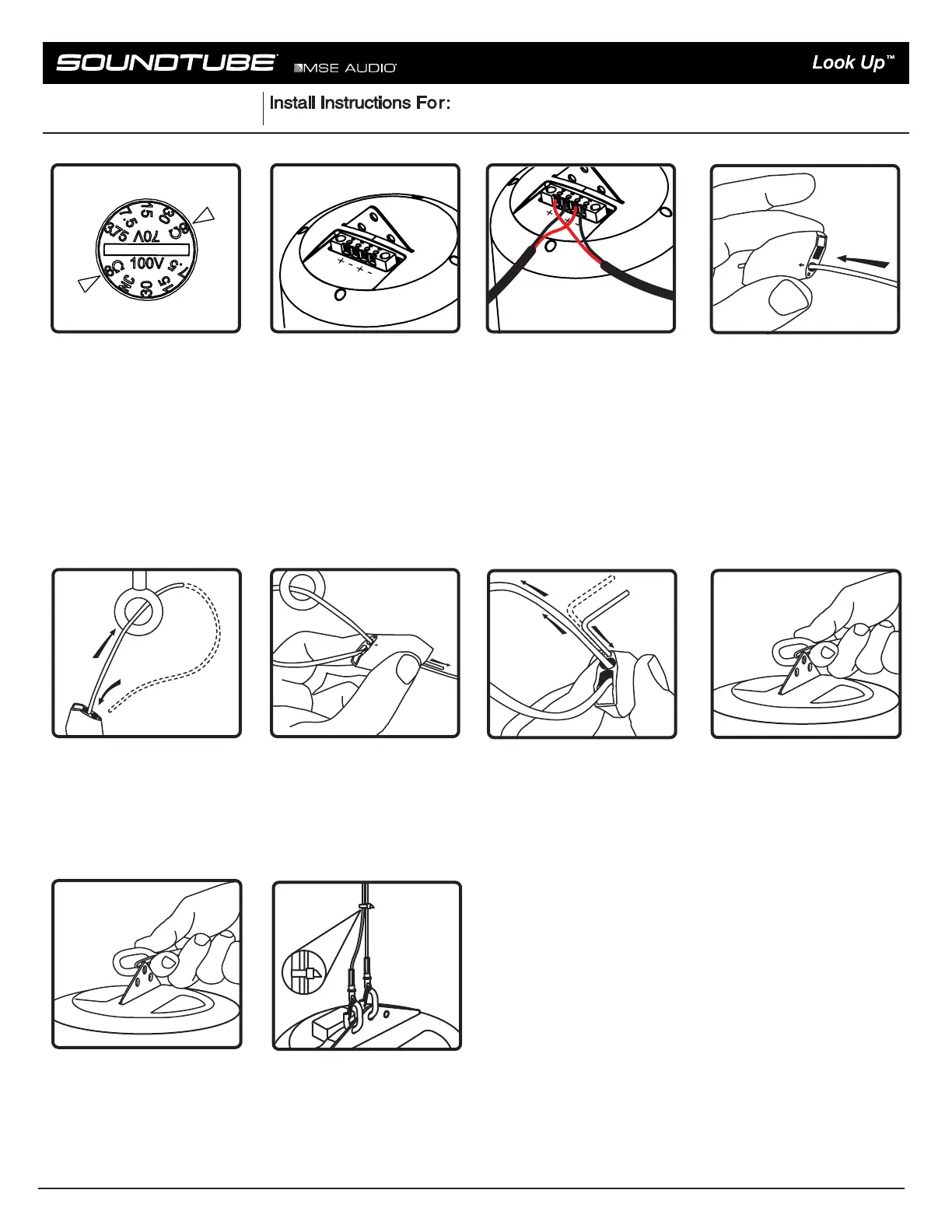

1. Remove the

magnetically-attached grille

from the front of the speaker to

reveal the rotary tap switch.

Select tap position on rotary

switch. Switch is preset to

maximum tap setting in 70.7V

mode.
