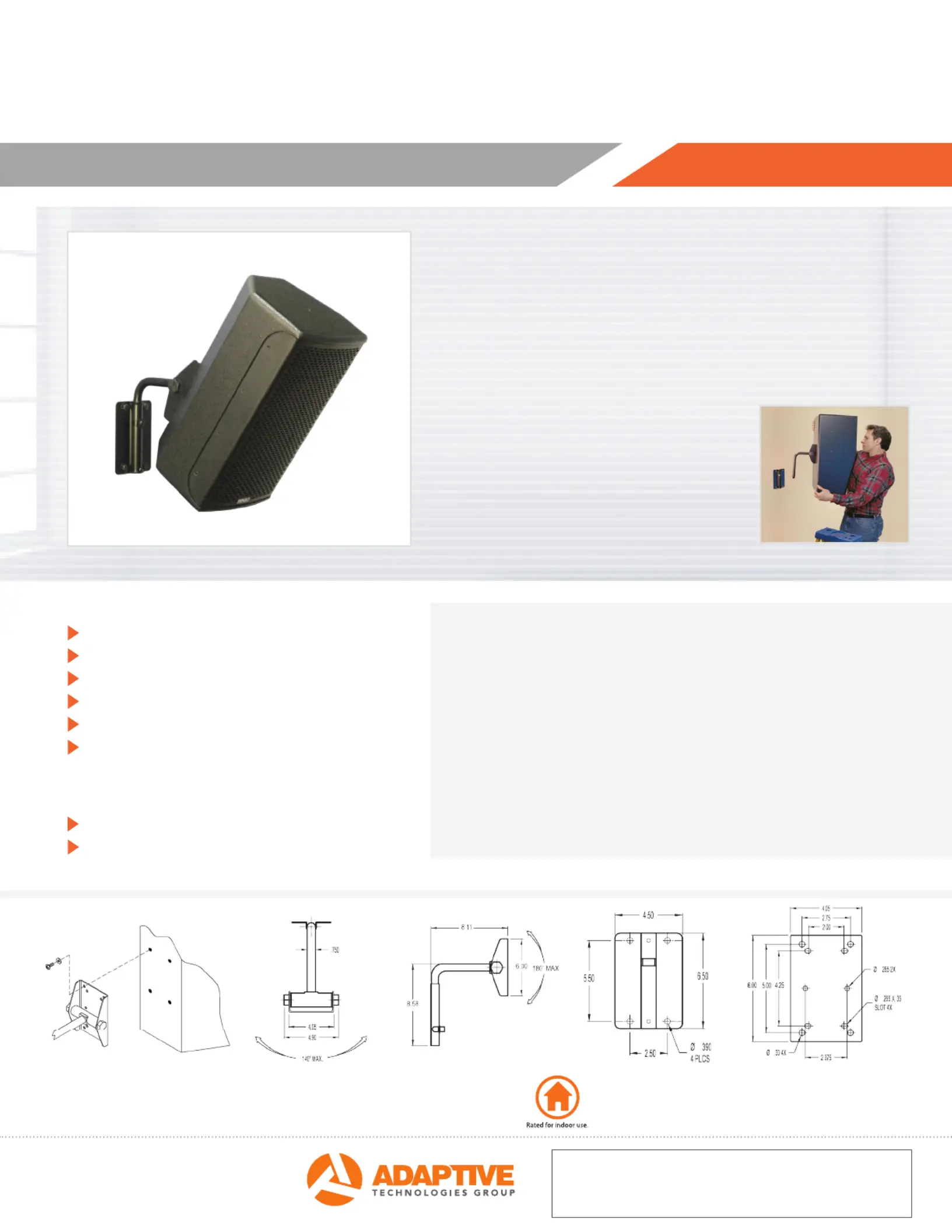

MM-024-BT
(60 lb. WLL)
PAN & TILT SPEAKER WALL MOUNT
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com
ALWAYS INSTALL SAFETY CABLES
WARNING:Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
MULTIMOUNT
®
SPECIFICATIONS:
Material: Structural Steel Alloy
Finish: Powder Coat
Color: Black
Tilt Rotation: 180° max.
Swivel Rotation: 140° max.
WLL: 60 lbs. (27.2 Kg) max.
Design Factor: 10:1 ratio
Net WGT: 4 lbs. (1.8 Kg) each
Shipping WGT: 5 lbs. (2.3 Kg) each
Pack Count: 1 units/carton
STANDARD FEATURES:
Independent, no drift, pan and tilt controls
Infinite locking adjustments
No lock memory - no drift
Single man speaker installations
Optional safety cables available
Conforms to multiple mounting hole patterns
including 2 x 4-1/4 and 2-3/4 x 5
OPTIONAL ACCESSORIES:
PoleStar™ PM-010 pole adapter
Safety cables (standard and custom lengths)
DIMENSIONS:
This universal speaker mount supports loudspeakers weighing up to
60 lbs. in a vertical orientation, quickly attaching them to walls, ceilings,
overhangs, and other structural members. Speakers are independently
aimed and locked in almost any direction or angle through the use of
independent pan, tilt, and swivel adjustments.
The MM-024’s unique telescoping arm acts as a convenient carrying
handle to lift speakers into place then inserts into the wall mounting plate.
Once inserted, the mounting plate supports the weight of the speaker
leaving the installers hands free to complete
the wiring and positioning process.
Tilt adjustments are made at the side of the
speaker adapter plate. Panning adjustments
are made at the mounting plate and a third
rotation is available between the speaker and
the support arm.
PACKAGE CONTENTS:
1 pc Mounting Plate
1 pc Speaker Adapter
1 pc Support Arm Assy
1 pc Hardware Kit
Vertical Orientation
Top View
Wall PlateSpeaker Plate
Side View
