Sida 1/4

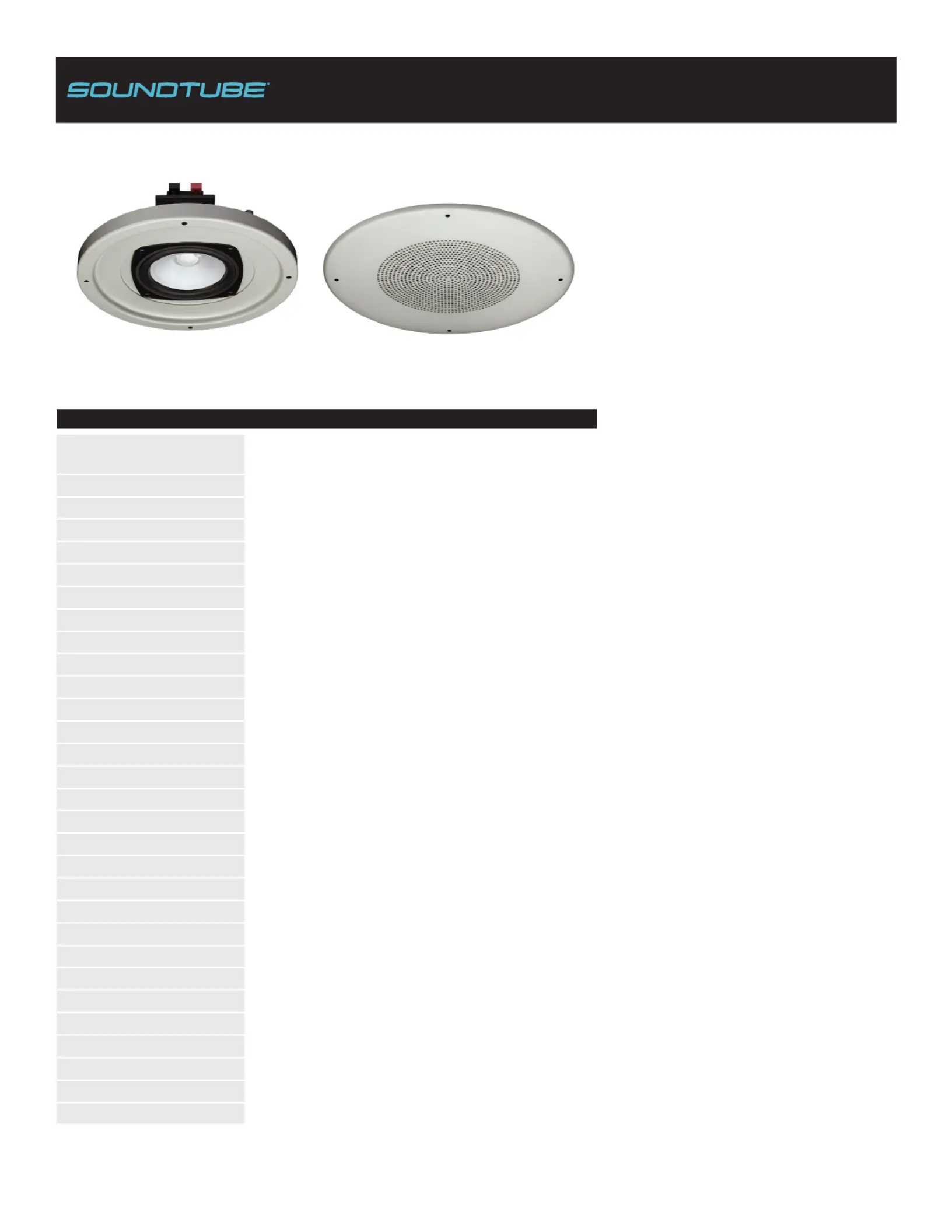

System Type
4”, full-range, in-ceiling, raw frame, sealed (20 W transformer for
25/70.7/100 V or transformer bypass)
Impedance (Nominal)
1
8 Ω
Sensitivity dB @ 2.83 V / 1 M
88.5 dB
Sensitivity dB @ 1 W / 1 M
2
88.5 dB
Frequency Response (±3 dB)
3
155 Hz - 22 kHz
Frequency Response (±10 dB)
3
71 Hz - 22 kHz
Max. Program Power
4
40 W
Max. Continuous Power RMS
5
20 W
Max. Power SPL @ 1 M
6
101.5 dB
Coverage Angle (±6 dB @ 2 kHz)
145°
Coverage Angle (±6 dB @ 10 kHz)
53°
Coverage Angle (Avg. from 2-10 kHz)
110°
Directivity Factor (Q)
4.9 (averaged 100 Hz - 10 kHz) | 4.6 (2 kHz)
Directivity Index (DI)
5.7 dB (averaged 100 Hz - 10 kHz) | 6.6 dB (2 kHz)
Tap Selector
Five-position rotary switch with transformer bypass position
Transducer: Full-Range Driver
102 mm (4”) treated paper cone, cloth surround
Low-Frequency Voice Coil
20 mm | 0.79”
Enclosure Material
Injection molded ABS baffle, separate back can
Grille
White metal grille (AC-GRL-RF41)
Inputs
Spring terminals
Colors
White only

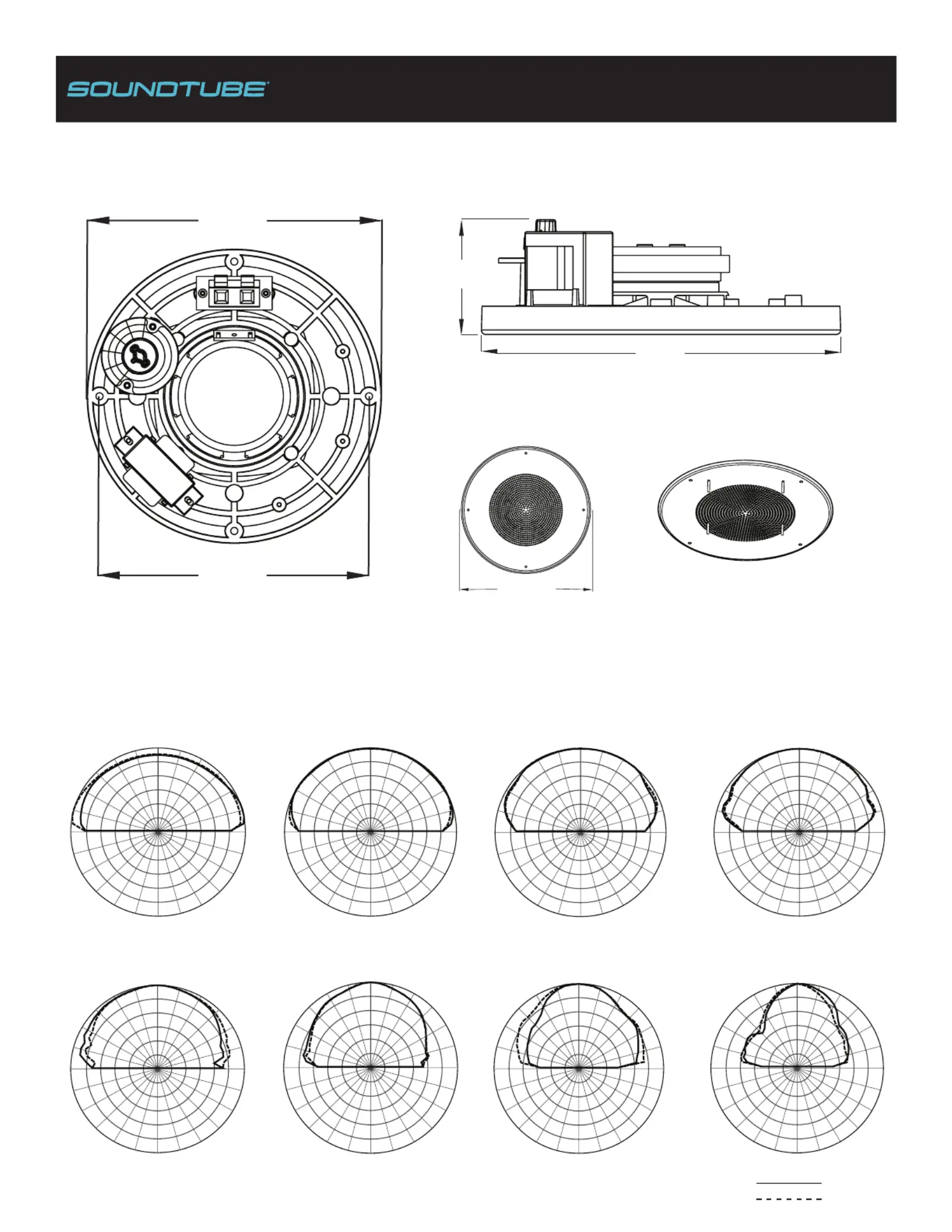

Diameter
209.8 mm | 8.3”
Overall Height
68.83 mm | 2.71”
Visible Diameter
320 mm | 12.6”
Visible Height
6.4 mm | 0.3”
Mounting Hole Diameter
192 mm | 7.56”
Weight
1.6 kg | 3.5 lbs
Optional Accessories
White metal grille (AC-GRL-RF41)
Packaging
One per box
Certications
CE, RoHS
Description
The RF41-20 is a 4”, full-range, blind-mount, in-
ceiling speaker which delivers true high-efciency
and performance across the operating bandwidth.
The full-range driver design delivers maximum
frequency response (71 Hz - 22 kHz, ±10 dB) in a
compact design. Mounting hardware is included and
features fast and easy retrot connections. For easy
ordering, stocking, and installation, the RF41-20
includes a ve-position tap switch for 25, 70.7, and
100 V applications with a transformer bypass position.
Grilles are optional and come in white only.
Features
• One full-range 4” (102 mm) treated ber woofer
with cloth surround.
• Easy-access ve-position tap switch for
25/70.7/100 V and transformer bypass position
plus spring terminals allow for rapid ordering,
stocking, and installation.
• Engineered for installation with limited plenum
space or retrot applications.
• Reduced amplication costs and maximum
efciency with 88.5 dB sensitivity and 8 Ω
impedance.
• Superior voice intelligibility with an average
coverage angle of 110° (2-10 kHz,
independently veried).
• Fits standard 8” back cans for retrots.
• High-quality white paint nish grille.
• Optional accessories: white metal grille (AC-GRL-
RF41) sold only in packs of 4.
1
Impedance listed per IEC 60268-5 with a minimum less than
80% the nominal impedance
2
1 W/1 M sensitivity determined using nominal impedance
3
Frequency response measured in half or full space as dictated
by speaker mounting conguration
4
Max program power is 3 dB above max continuous power
5
Continuous power rating, EIA-426-B test
6
Max output based on max continuous power
RF41-20 PRODUCT SPECIFICATIONS
RF41-20
Raw Frame Speaker
