Sida 1/1
8 Indicator Definition
※This function is applicable to PoE switches,not applicable to non-PoE switches.
* Please contact Speco Technologies technical support @ 1-800-645-5516
if you have any questions.
Function Definition Description
N
V
S
Normal
Mode
Port
Isolation
Link
Extension
1 Description
9 PoE Powered Function
5 Switch Installation 7 Technical Spec.
10 States of Switch
Standard PoE Power Supply
Desktop Installation
Network Cable
Grounding
PoE Switch PoE Camera12/36 is the power
supply and data pin
1.Standard PoE power supply includes: protocol detection, power pin sequence
Detection, power output, abnormal protection, link abnormal monitoring
2.The PoE power supply protocol includes: IEEE802.3af(15.4W), IEEE802.3at(30W)
3.The standard PoE power pin sequence is 12+/36-,and the
passive PoE power pin sequence is 45+/78-
4.The standard POE switches can automatically detect and supply
power to the PDs that meet the standard,non-POE devices are not
powered and only transmit data
5. PoE Watchdog
When the switch port communication fails, the corresponding port
POE will automatically detect and restart, restore network
communication by itself, and reduce manual intervention and maintenance.
Normal mode, all ports can communicate
with each other, the transmission distance is
within 100 meters, the transmission rate is
10M / 100 /1000M adaptive
PoE ports (1-8) of the switch cannot
communicate with each other, and can
only communicate with uplink ports
1-8 ports PoE power supply and data
transmission distance can be extended to 250
meters, the transmission rate becomes 10M
Switches support a variety of installation methods, desktop, wall mounted, rack mount,
please install according to the actual environmental requirements.
10Base-T: Cat3, 4, 5 or above UTP(≤250m).
100Base-TX: Cat5 or above UTP(≤150m) .
1000Base-TX: Cat5 or above UTP(≤100m).
Ensure that the grounding screw of the equipment is effectively grounded to protect
the safety of the equipment.
Power Cable
1.Distance between power cable and network cable should be more than 10cm.
2.The AC power please use the local AC power cable.
The products described in this manual, incduding but not limited to the illustrated
products, please refer to the actual product purchased.If any changes on product
appearance, please refer to the official product information.
PoE switch and ethernet switch installation methods are the same, the actual use
environment and method that depends on the specific product requirement.

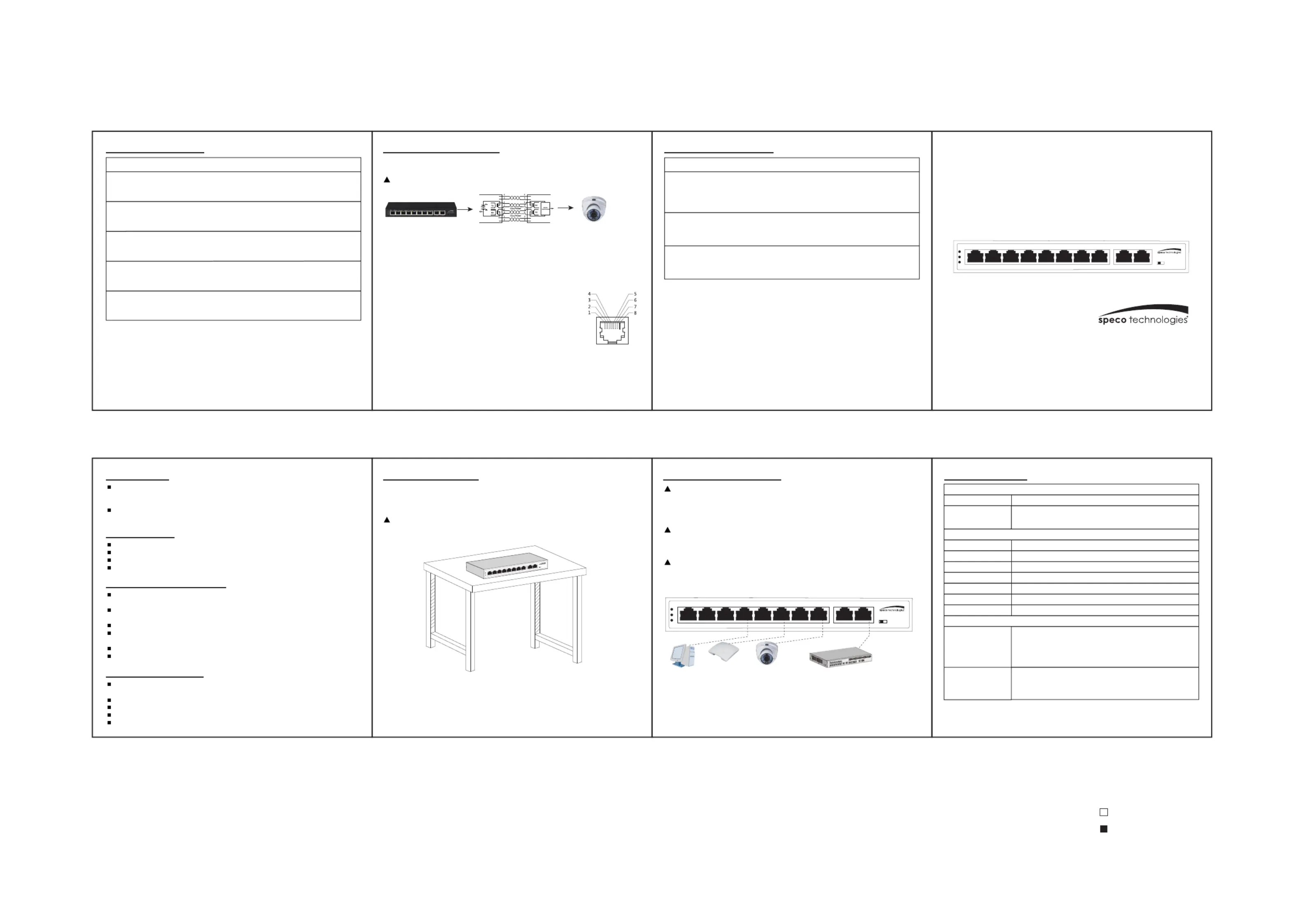

User Manual
6 Connecting Equipment
2 Packing List
Switch(Specific model See the product label for more details).
Power Cable(The default is pluggable or a power cable with built-in power module).
Brackets, Screw(Rack type standard).
User manual,Certification.
3 Installation Precautions
Do not install the equipment in the environment of seepage, drip or condensation
easily,otherwise the equipment might burn out.
Please ensure the environment where the equipment is installed is well ventilated,
and forbidden to block the cooling holes.
Do not install the equipment in a high density dust environment.
If rack switches are in a natural heat dissipation environment, please ensure the
separation distance exceeds 1U.
Do not aerial cabling outdoor, otherwise the equipment is prone to lightning strike.
Using temperature and humidity depend on the descriptions of the specific product.
4 Safety Precautions
Do not look directly at the optical port to prevent the laser beam from burning your
eyes.
Do not install the power cord with power on to avoid personal injury.
Do not supply power before equipment installation and wiring.
ESD protection is necessary during the installation and maintenance of equipment.
Do not place objects on the device.
尺寸：90x360mm
印刷：黑白印刷
纸张： 铜版纸80g
字体：Arial
C0 M0 Y0 K0
C0 M0 Y0 K100
P8S10G 10-Port Gigabit Switch
8GE PoE with Uplink 2GE RJ45
Computer Camera SwitchWireless AP
I/O Interface
Performance
Mechanical
Power Input AC 100-240V, 50/60Hz
20Gbps
14.88Mpps
2.5Mb
2K
9216bytes
Store and Forward
100,000 hours
Product Dimension (LxWxH): 210x150x35mm
Package Dimension (LxWxH): 265x220x68mm
N.W: 0.8kg
G.W: 1.2kg
Carton MEAS: 550x455x365mm
Packing Qty: 20 pieces
Packing Weight: 25.5kg
Fixed Port
Switching Capacity
Throughput
Packet Buffer
MAC Address
Jumbo Frame
Transfer Mode
MTBF
Structure Size
Packing Info
8x10/100/1000M PoE Ports(Port 1 Supports BT90W)
2x10/100/1000M Ethernet Uplink Ports
Gigabit PoE Unmanaged Switch
N S
V10-UP9-UP87654321-HiPoE
PoE
S
V
P
Link
Gigabit PoE Unmanaged Switch
N S
V10-UP9-UP87654321-HiPoE
PoE
S
V
P
Link
Indicator Definition State Description
S
V
P
Uplink
Link Extension
LED
Port Isolation
LED
Light on
Light off
Light on
Light off
Extension Enable
Extension Disable
Port Isolation Enable
Port Isolation Disable
Power Indicator
Light on
Light off
Powered
Abnormal
PoE Indicator
Data Transmission
Yellow Light on
Green Light on
Yellow Light on
Green Light on
PoE Powered
LAN Linked
Link Rate
PoE
Link
10/100M
Gigabit
Gigabit PoE Unmanaged Switch
N S
V10-UP9-UP87654321-HiPoE
PoE
S
V
P
Link
