Sida 1/3

Easy

Setup Guide

Safety

Instructions

This Manual

Power Cable*AC Adapter

MCP31CI

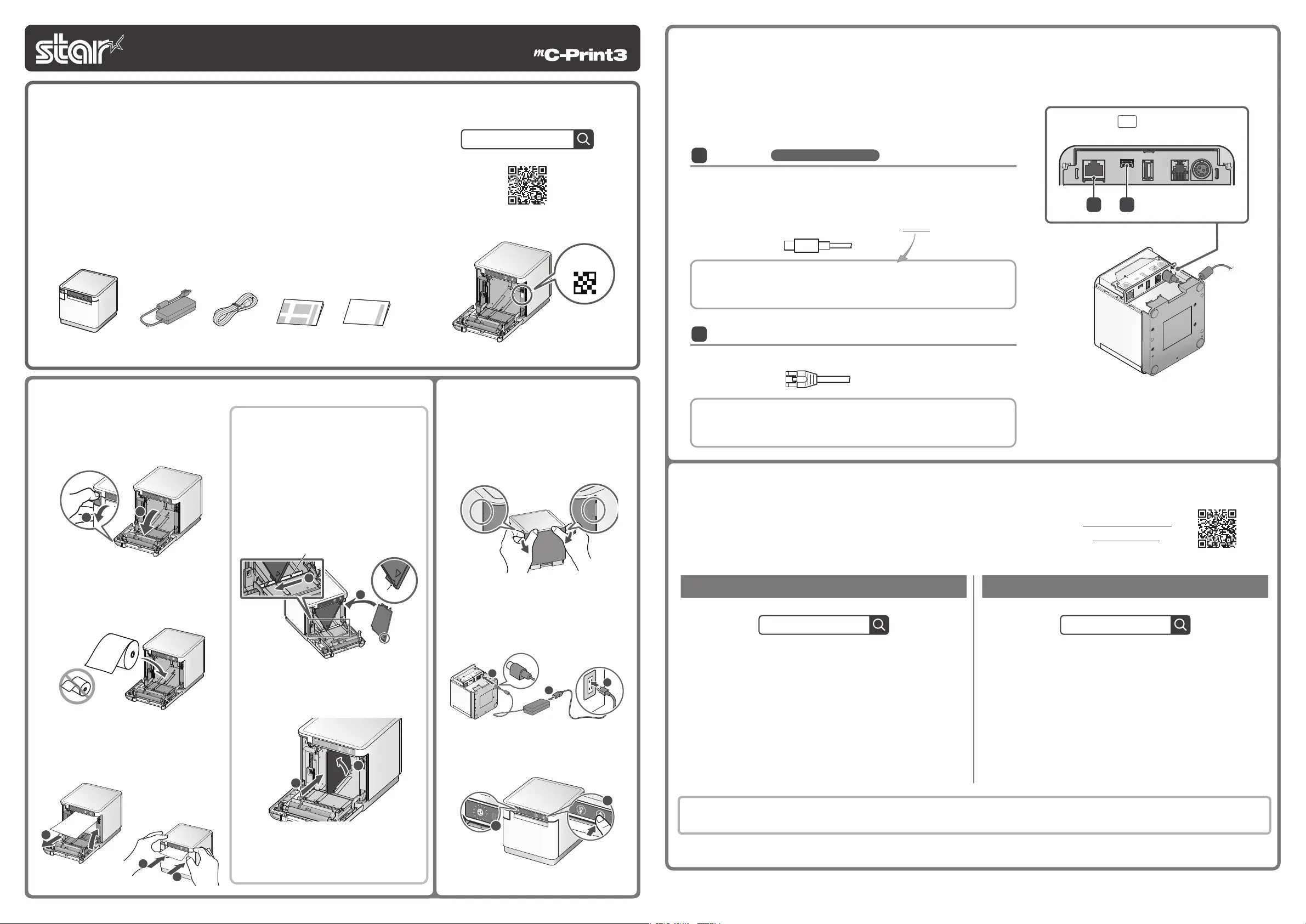

Easy Setup Guide

Installing the paper roll

Take the slack of the paper roll before paper

setting, install the paper roll as shown in the

illustration.

Pull the end of the paper roll out straight



, and use both hands to close the printer

cover



Pull the open lever



and open the printer

cover



ⓘ

When using a 58mm roll, install the

paper roll guide sold separately.

With the notch part A (triangle mark) of the

paper roll guide facing down, angle the

guide to the right and insert it



Position so that the notch part A is aligned

with the main unit rib B, then slide the

guide from the right



When the slid paper roll guide stops, stand

it up vertical



, and press until it clicks

into place



To change the paper width, it is necessary

to change the memory switch setting.

For details, refer to the Online Manual.

Turning ON the Main Unit Power

Press the power button



and confirm

that the LED (blue) illuminates



Connect the power cable to the AC adapter



, and connect the cable connector to the

printer as shown in the illustration



Insert the plug into the outlet



Place your nails into the gaps in the right

and left sides of the rear cover on the back

of the printer, and then remove the cover.

RESET

24V

LAN

Cash Drawer

/Buzzer

0.5A

2.4A

0.5A

iPad

RESET

80879110

Introduction

If contents are missing or damaged, please contact the reseller that sold you the printer.

*accessories vary depending on the region where the printer was purchased.

What's Included

This document explains the setup procedure for the mC-Print3.

For further instructions, please refer to the mC-Print3 (2nd Generation) online manual.

Please read the instructions before using the printer.

You can also see FAQ from the QR code on the inside of the printer.

FAQ

mC-Print3 online manual

For the owners of other companies’ trademarks mentioned in this document,see Trademarks in our website (https://www.star-m.jp/eng/trademarks.html).

Star Windows Software

When using Windows

Star Quick Setup Utility

When using Android/iOS





Once a static IP address is assigned, IP address changes through the DHCP server will not occur, so the specied connection destination

device can be used continuously once set.

Preparing/setting up the conguration app

Use the conguration app to set up the printer from a tablet or PC.

Scan the QR code on the right side or search the app to access the

download site.

Conguration app

download site



Install [ Star Quick Setup Utility ].



Open the conguration utility, and select [ Start Guide (Initial

Settings)] - [ Search Printer].



Follow the instructions of the utility to connect and set up a tablet.

ⓘ

For a wired LAN connection, use the tablet that is connected to

the same network as the MCP31CI.

ⓘ

The Windows driver is included in the Star Windows Software.

The Star Windows Software can be used to configure the

printer settings and perform an operation test.



Download [ Star Windows Software ].



Extract the downloaded software and execute “Setup.exe”.



Follow the wizard instructions and complete software installation.

ⓘ

Driver download site for Mac / Linux environment. (https://www.star-m.jp/supportsite-wsw.html)

Connecting a Tablet or PC

Prepare and connect an appropriate cable to the connector on the printer

according to your device/PC.

When using a commercially available cable, be sure to perform full operation checks

before use.

RESET

24V

LAN

Cash Drawer

/Buzzer

0.5A

2.4A

0.5A

iPad

RESET

LAN

iPad

Android

Windows

USB-C

20W(USB PD)

Wired LAN

LAN cable

Plug for the printer:

ⓘ



DHCP is enabled by default for the wired LAN settings. To continually

use the same IP address, set a static IP address before use. For the static

IP address setting procedure, refer to the Online Manual.

ⓘ



If your PC cannot communicate with the printer using C to C cable, refer

to "Switching the USB-C function manually" on the back page of this

manual, and then switch the function to "Data only".

Communication and Recharge

USB-C

USB cable

(Make sure that the connector type is appropriate for your device/PC)

iOS … C to C

C to Lightning

Android … C to C

PC … C to A

(Communication only

)

C to C

Plug for the printer:

Cable that conforms to USB2.0 standards, supports current of 3.0A or

higher, and has a maximum length of 2 m.

Apple genuine cable or MFi certified cable with a maximum length of 2 m.

Cable that conforms to USB2.0 standards, has a maximum length of 2 m.

Cable that is compatible with category 5 or higher.

Initializing Network settings

If the communication connection is not successful, follow the

procedure below and initialize the communication setting.

After initialization, perform connection again starting from the

beginning of Step 3 ”Connecting a Tablet or PC - Wired LAN” on the

front page.

《

Procedure

》

Check that the printer power is OFF.

Insert a pen with a small tip or similar item and press the RESET

button on the back



At the same time, press the power switch on the front of the print-

er until the POWER LED turns on (power ON)



Keep pressing RESET switch until the Network LED (green) on the

front of the printer ashes



Press and hold the FEED button



to conrm.

Switching the USB-C function manually

(For using the USB interface)

The USB-C port of the printer automatically identies your connected

device and enables communication.

When using iOS or Android device, power supply and communication

with the device are possible at the same time.

If the printer does not perfom as expected, switch the USB-C function.

《

Procedure

》



Turn on the printer power.



Pull the open lever, and then open the printer cover.



Press the FEED button for 5 seconds (LED red ashes).



Press and release the FEED button to select USB-C function.

You can identify USB-C function from the color of the ashing LED.



Close the printer cover, and then save the selected function in step





Check the status of the saved function on the test printing.



The USB-C function can also be switched by the configuration app.

LED USB-C function Description of test printing

Red ashing Data only USB-C: Data Only

Blue ashing Power supply only USB-C: Power Supply Only

Purple ashing

Power supply

and data

(Default)

USB-C: Power Supply / Data

5 seconds

Press

and release

Press the hooks A at the bottom of the rear cover into the notches

in the printer main unit



Then t the hooks B on the left and right of the rear cover into the

printer main unit until they click into place



《

Installing the rear cover onto the back of the printer

》

Installing the rear cover

RESET

DC24V

iPad

Android

Windows

USB-C

Cash Drawer

Buzzer

USB-A

0.5A

20W(USB PD)

LAN



Connect the printer to the internet.

(See “Wired LAN” in Step 3 “Connecting a Tablet or PC”)



Scan the QR code from a smartphone or tablet to access the

registration site for “Star Micronics Cloud Services”.



Follow the procedures to register the printer with “Star

Micronics Cloud Services” to start using the services.

ⓘ

Please refer to the above Service site for available countries.

Digital Journal,

Printed

Promotion,

and more！

FREE services are available if you register MCP31CI with Star

Micronics Cloud Services.

Service site

Registration

site

Produktspecifikationer

Varumärke:	Star Micronics
Kategori:	Skrivare
Modell:	mC-Print3
Bredd:	132 mm
Djup:	140 mm
Höjd:	125 mm
Mobila operativsystem som stöds:	Android, iOS
Wi-Fi:	Nej
Maximal upplösning:	203 x 203 DPI
Certifiering:	UL, C-UL, TuV, FCC, VCCI, EN55022, CE
Internminne:	- MB
Modell:	POS-skrivare
Maximal rulldiameter:	83 mm
USB-kontakt:	USB Type-A / USB Type-B
Skrivhastighet:	250 mm/sek
Inbyggda streckkoder:	MaxiCode, PDF417
Produktens färg:	Svart
Windows-operativsystem som stöds:	Windows 10, Windows 7, Windows 8.1, Windows Vista, Windows XP
Mac-operativsystem som stöds:	MacOS
Temperatur vid drift:	5 - 45 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	10 - 90 %
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Ja
Strömkälla av typen:	DC
Antal USB 2.0 anslutningar:	4
USB-port:	Ja
Mac-kompatibel:	Ja
Utskriftsteknologi:	Termal
Skärare:	Ja
Stöds pappersbredd:	80 mm
Mediats tjocklek:	0.075 um
