Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: May 12, 2023 2:48 PM
Product ID
4U2525-SAS-BACKPLANE

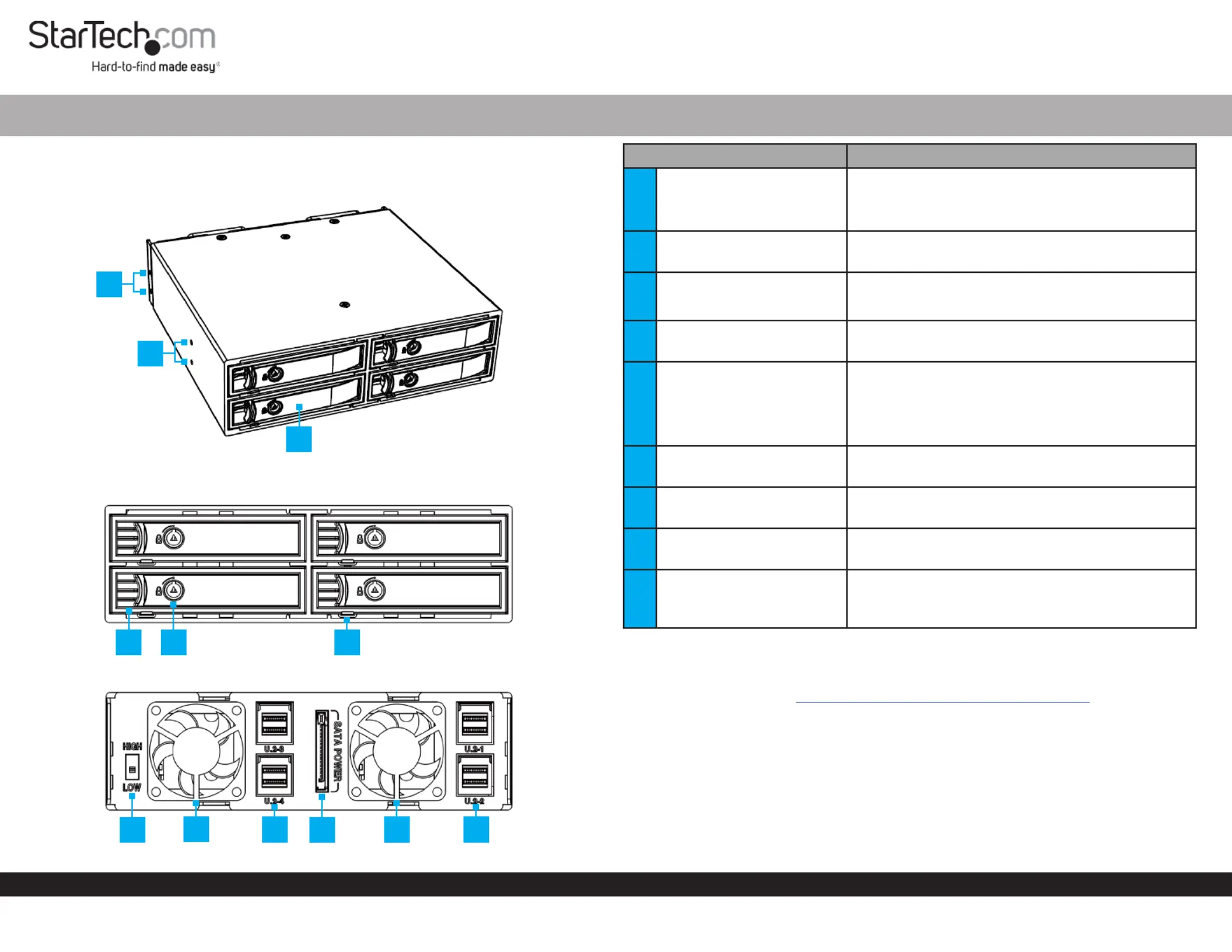

Front
Front
Rear
4-Bay 2.5in U.2 (SFF-8639) Drive Backplane
ComponentFunction
1Frame Mounting Holes
• Secure the to the 4-Bay Drive Backplane
Computer Case
• 4 Holes on each side of the Backplane
2Drive Bay/Drive Tray
• Hosts a and is removable from U.2 NVMe Drive
the 4-Bay Drive Backplane
3
Drive Bay Release Latch
• Used to remove the from the Drive Tray
Backplane
4Drive Bay Key Hole
• Use the included to or Set of KeysLock Unlock
the Drive Tray
5LED Indicator
• Solid Blue: DriveIndicates the is receiving power
• Blinking Blue: DriveIndicates activity
• Blinking Red: Drive Cooling FanIndicates a
failure
6Fan Speed Switch
• Change the speed between Drive Cooling Fans
High Lowor
7Drive Cooling Fans
• Provides airow to assist in cooling the U.2
NVMe Drives
8
Mini-SAS Connectors
(SFF-8643)
• Connect to a in the U.2 NVMe ControllerHost
Computer
9SATA Power Connector
• Connect available from the SATA Power
Computer’s Power Supply to provide power to
the U.2 NVMe Drives
Product Information
For the latest drivers/software, technical specications, and declarations of
conformance, please visit: www.StarTech.com/4U2525-SAS-BACKPLANE
Requirements
• Desktop with:
• Available 5.25” Expansion Bay x 1
• SAS (SFF-8643) Host Connector Ports x 4
• SATA Power from Computer Power Supply x 1
• 2.5” U.2 (SFF-8639) NVMe Drives x 4
1
1
2
543
6
88
7
7
9
