Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: June 9, 2022 12:07 PM
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

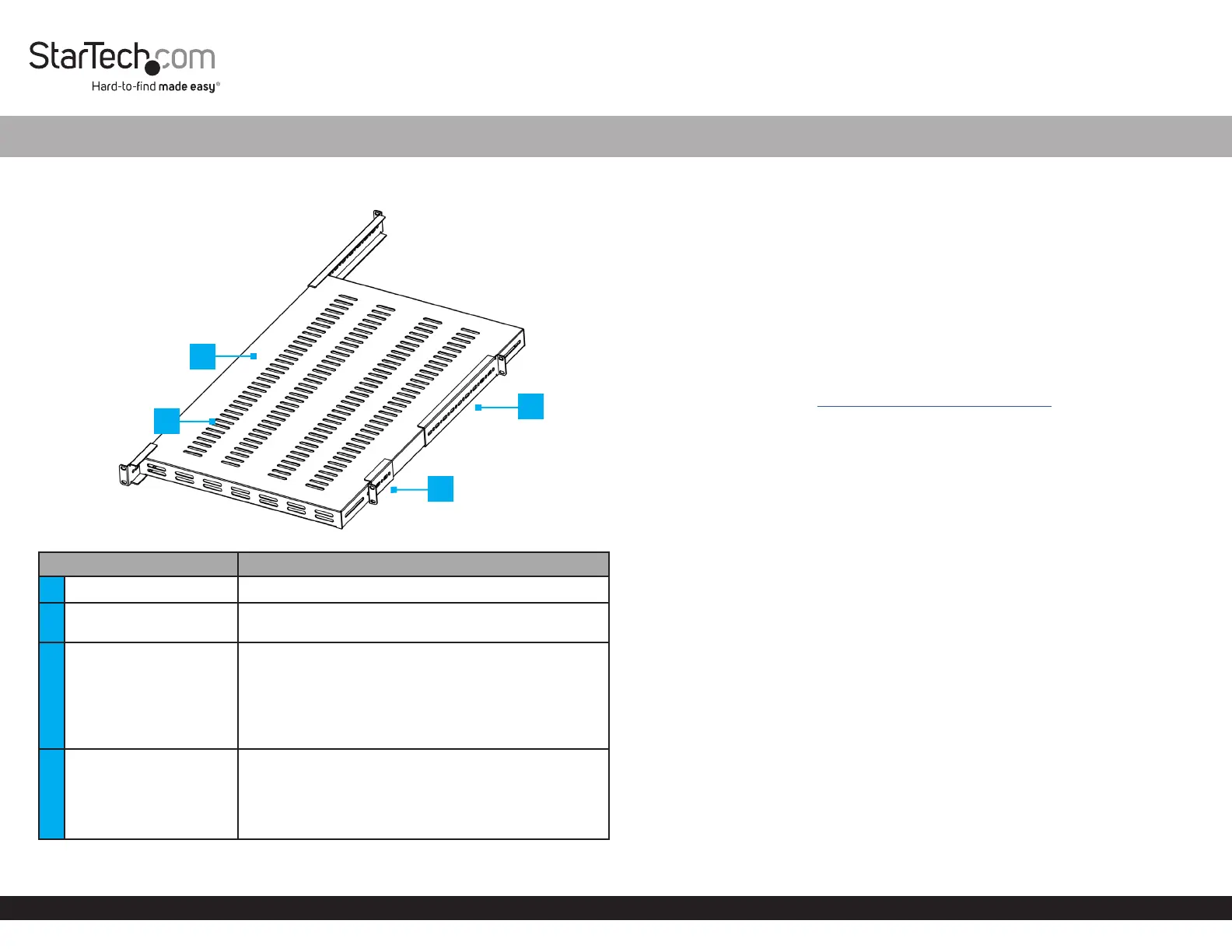

Product Diagram
ADJSHELFHDV2
Component Function
1Shelf Surface • Mount the server rack equipment
2Ventilation Holes • Promote air ow for the mounted equipment. The
dimensions are 1.6 x 0.25 in (40 x 6.5 mm)
3Front Mounting Brackets
• Fasten to the of the rack or Shelf Front Posts
cabinet
• Holes on the sides of the allow Mounting Brackets
for . (x 4)Depth Adjustment M6x12 mm Screws
secure the to the desired depth Mounting Brackets
• Allows for up to 5.7 in (146.9 mm ) depth adjustment
4Rear Mounting Brackets
• Fasten to the of the rack or cabinetShelf Rear Posts
• Holes on the sides of the allow Mounting Brackets
for . (x 4)Depth Adjustment M6x12 mm Screws
secure the to the desired depthMounting Brackets
• Allows for up to 13 in (332.1 mm) depth adjustment
1U 4-Post Vented Adjustable Mounting Depth Heavy Duty Shelf - 27.5 in Depth
Package Contents
• 1U Shelf Body x 1
• Front Mounting Brackets x 2
• Rear Mounting Brackets x 2
• M6x12 mm Screws x 8
• M6 Cage Nuts x 8
• M6 Plastic Washers x 8
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specications, and declarations
of conformance, please visit: www.StarTech.com/ADJSHELFHDV2
• For square cage holes, M6 cage nuts are included. For M6 threaded holes, no cage
nuts are needed. Refer to the manufacturer of the rack to determine the mounting
hole type
• Phillips head screwdriver
• Cage nut tool (Optional)
Warnings!
Read the entire Quick-Start Guide and ensure the instructions are fully understood
before assembling and using this product.
Before adding equipment to this product, ensure this product has been properly
mounted.
Never operate this product if parts are missing or damaged.
Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment is possible. This product can support the following weight: up to 330 lb
(150 kg). The maximum supported weight is only possible when all four mounting
brackets are properly mounted to all posts on a four post rack.
Arrange your equipment in the rack in descending order of weight. The lightest
equipment is installed at the top of the rack, and the heaviest is on the bottom.
Installation
1. Locate a suitable location in the rack or cabinet to mount the . The Shelf Shelf
requires of . 1U Space
To mount the shelf leveled, ensure the mounting brackets are mounted on the same U
height number. To determine this, most four posts racks or cabinets have labeled front
and rear posts.
*Product may vary from image
3
1
4
2
