Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 21, 2022 2:00 PM

Transmitter

Side A Side B

Product ID

C15012-USB-EXTENDER

1-Port USB 2.0 Over Cat5/Cat6 Extender - 490 ft. (150 m)

ComponentFunction

1

USB-B Host Port

(Transmitter)

• Connect to a USB-A Port on a Host

Computer

• USB 2.0 (480 Mbps)

2

RJ-45 Output

(Transmitter)

• Connect the Transmitter to the Receiver

using a Cat5e/Cat6 Cable

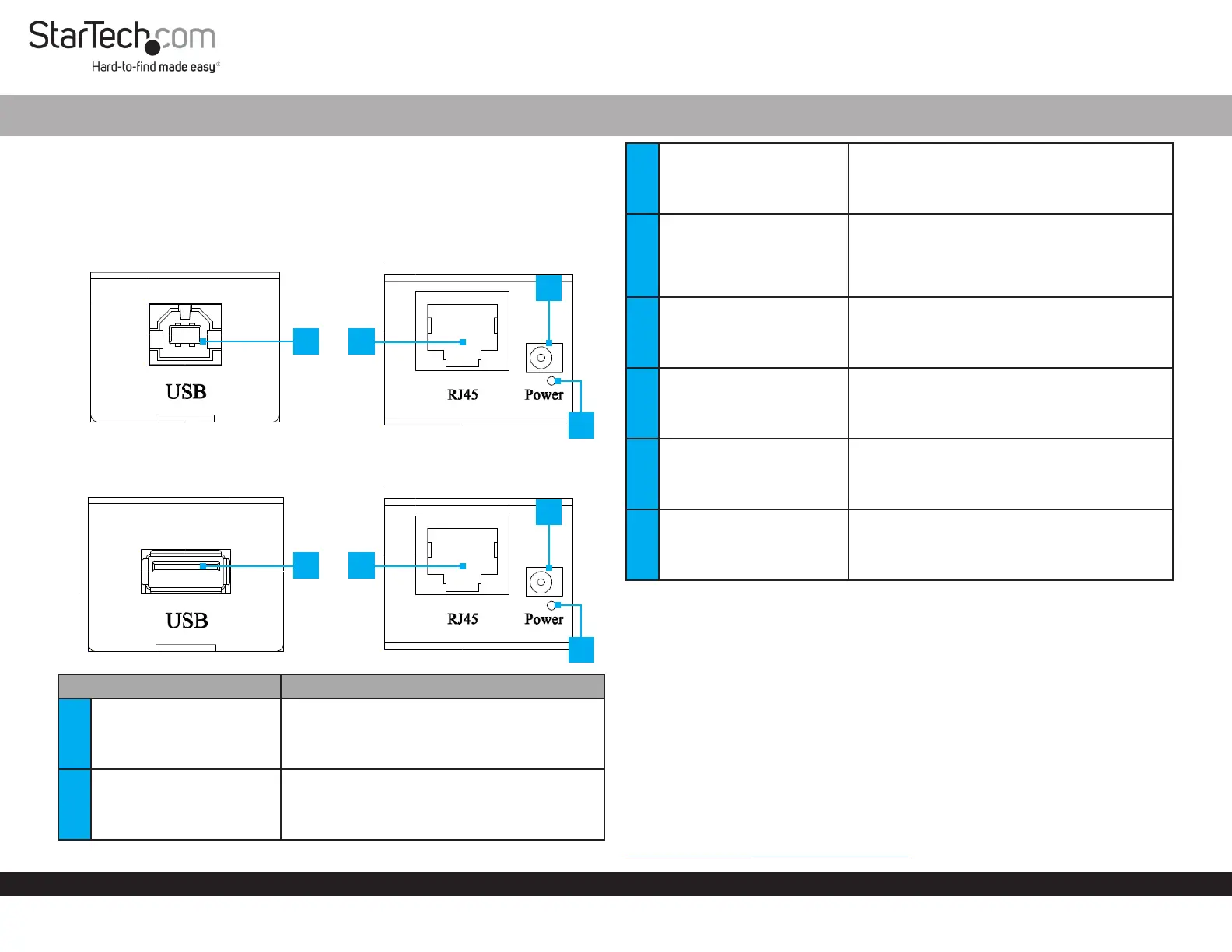

Product Diagram

1

3

DC 5V Power Port

(Transmitter)

*NOT REQUIRED

• Used to connect the Transmitter to a Power

Source. A local power source is not required,

as the Transmitter is powered by the USB

Host Computer

4

Power LED

(Transmitter)

• Indicates if the Transmitter is receiving

power

• Solid Green = Receiving Power

• O = Not Receiving Power

5

USB-A Peripheral Port

(Receiver)

• Connect a Remote USB-A Peripheral

• USB 2.0 (480Mbps)

• Supports up to 5 V/0.5 A (2.5 W) Power

6

RJ-45 Input

(Receiver)

• Connect the Receiver to the Transmitter

using a Cat5e/Cat6 Cable

7

DC 5V Power Port

(Receiver)

• Connect the Receiver to a Power Source,

using the Universal Power Adapter

8

Power LED

(Receiver)

• Indicates if the Receiver is receiving power

• Solid Green = Receiving Power

• O = Not Receiving Power

Package Contents

• USB Over Cat5/Cat6 Transmitter x 1

• USB Over Cat5/Cat6 Receiver x 1

• 2 ft (61 cm) USB-A to USB-B Host Cable x 1

• Universal Power Adapter (North America) x 1

Requirements

• Computer (local) with a USB-A Port

• USB peripheral device (remote) with Required Cabling

• Cat5/Cat6 Cabling. Up to 490 ft (150 m)

For the latest drivers, manuals, product information, technical specications, and

declarations of conformance, please visit:

www.StarTech.com/C15012-USB-EXTENDER

Receiver

2

3

4

Side A Side B

56

7

8
