Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 15, 2020 12:52 PM

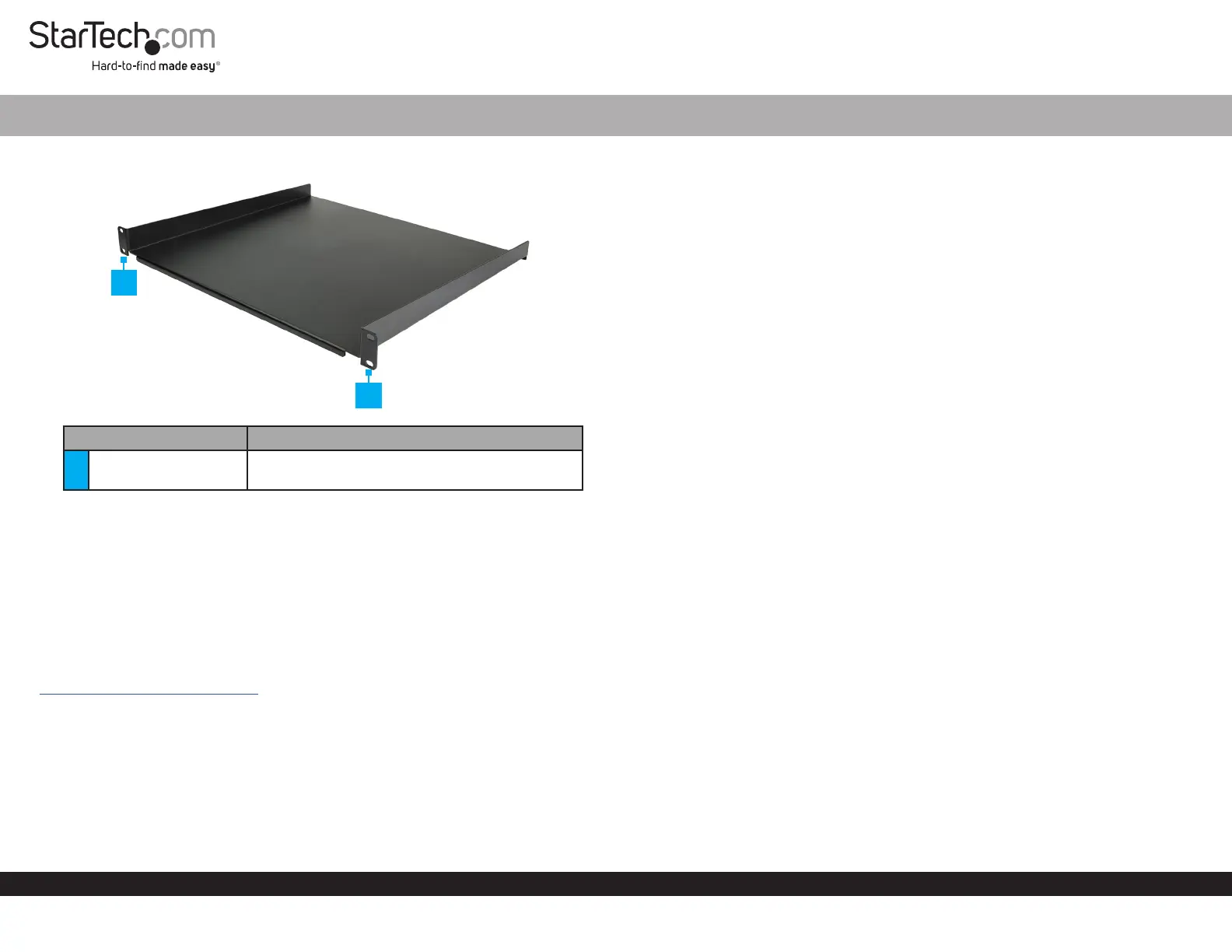

Product Diagram (CABSHELF116)

PortFunction

1Front Bracket

• Used to mount the Shelf into a Rack or

Cabinet.

Package Contents

• 1U Shelf x 1

• M6-12 Screws x 4

• M6 Cage Nuts x 4

• M6 Plastic Cup Washers x 4

Requirements

For the latest requirements and full manual, please visit

www.startech.com/CABSHELF116.

• At least 1U of available space.

Note: If you use a rack or cabinet that doesn’t use square mounting points, you will

require the appropriate mounting hardware for the type of rack that you are using.

1U Rack Shelf - 16 in. Deep

Installation

Notes: This product can support the following weight: 44 lb. (20 kg).

The following installation instructions are for square mounting holes.

1. Locate a suitable location in the rack or cabinet to mount the shelf.

Note: The shelf itself requires 1U of space within the rack or cabinet.

2. Install the M6 Cage Nuts x 4 (included) into the square mounting holes on the front

posts of the rack.

3. Place the shelf into the rack and align the Mounting Holes on the Front Brackets

with the M6 Cage Nuts.

4. Use the provided M6-12 Screws x 4 and the M6 Plastic Cup Washers to secure the

shelf to the rack.

5. Make sure that the M6-12 Screws are properly tightened and the shelf doesn’t move

before you put anything on the shelf.
