Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: February 3, 2023

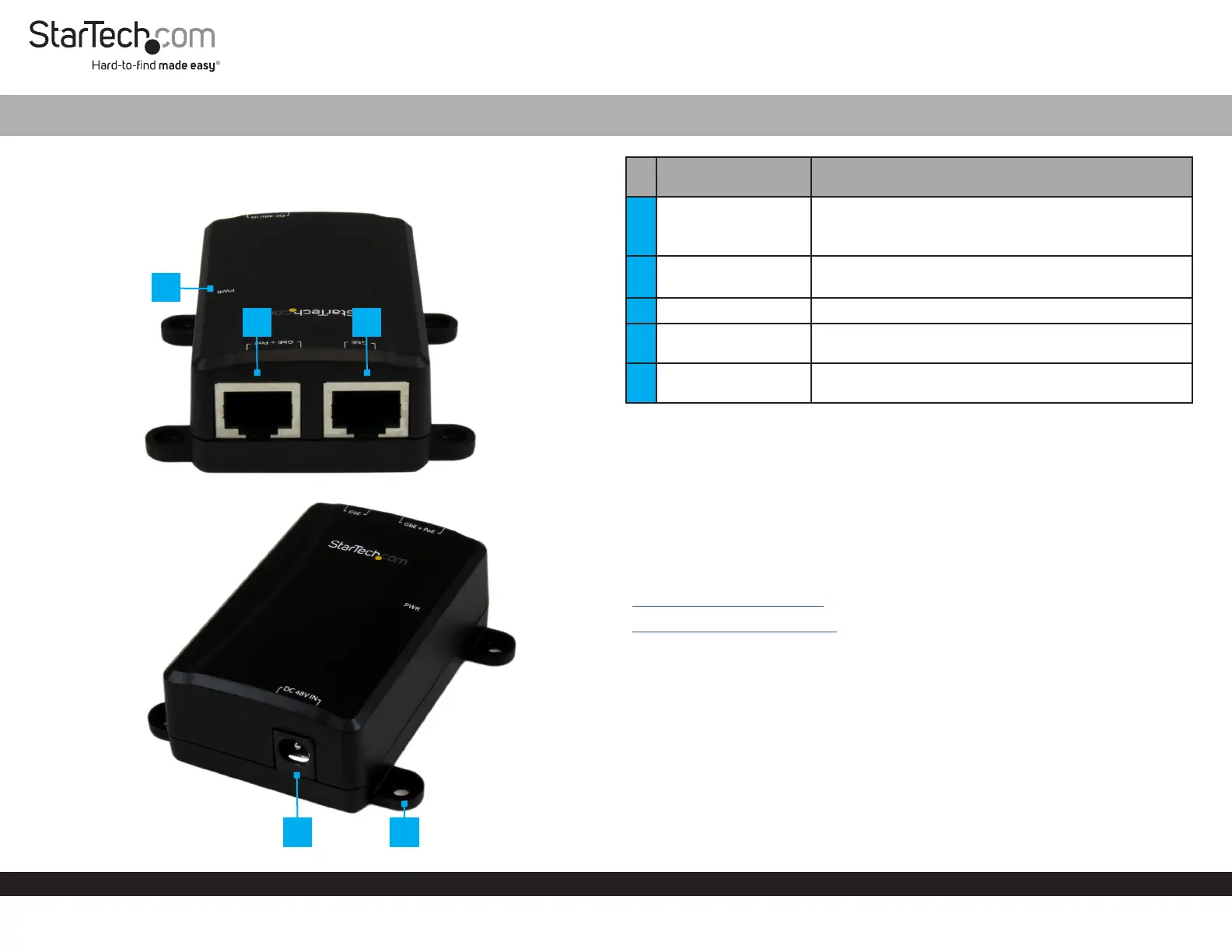

Product Diagram (POEINJ1G / POEINJ1GW)

Front

Back

1-Port Gigabit Midspan PoE+ Injector - 802.3at and 802.3af

Port/LED/ConnectorFunction

1Power LED

• Indicates if power is being supplied

• Solid Green = On

• O = O

2

GbE + PoE Port

(Data + Power)

• Connect a Network Cable to a PoE or PoE+ device

• Supports 1 Gbps, 100 Mbps, and 10 Mbps

3GbE Port (Data)• Connect a Network Cable to the PoE Injector

4DC Power Port

• Connect the PoE Injector to a Power Source using

the included Power Adapter

5Mounting Holes

• Allows for a permanent installation to a at and stable

surface

Package Contents

• PoE+ Injector x1

• Mounting Screws x 4

• Power Adapter (NA for POEINJ1G, EU/UK/ANZ for POEINJ1GW) x 1

• Quick-Start Guide x 1

Requirements

For the latest requirements, please visit:

www.startech.com/POEINJ1G

www.startech.com/POEINJ1GW

Installation

Note: Refer to Figure 1 for a typical midspan installation.

1. Connect an Ethernet Cable from the Source Network Device (i.e, computer,

router, non-PoE switch) to the GbE port of the PoE Injector.

2. Connect an Ethernet cable to the GbE + PoE port on the PoE Injector.

3. Connect the other end of the Ethernet Cable used in Step 2 to either a Powered

Device (PD) that is PoE+ or PoE compliant, or to a PoE Splitter to separate Data

and Power.

4. Plug the includedPower Adapter to a power source and connect it to the PoE

Injector. Ensure the Power LED is illuminated.

23

45

1
